Fluidcontrol

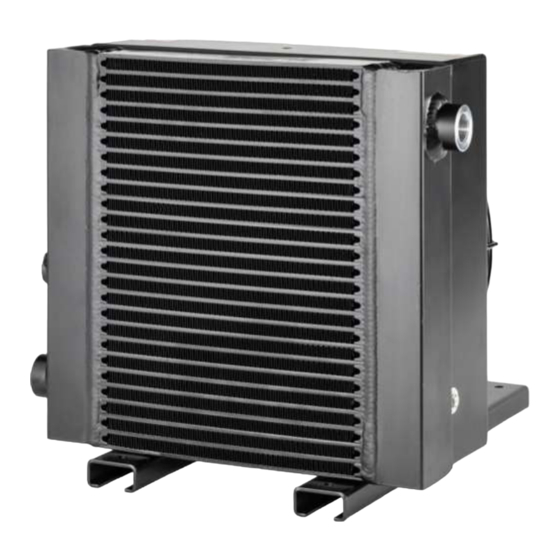

Oil/air cooler
ELK
Installation and Operation Instructions
Original instructions
BE350034
Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen
08/2022
Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20
E-Mail: fluidcontrol@buehler-technologies.com
Internet: www.buehler-technologies.com
Advertisement
Table of Contents
Related Manuals for Bühler technologies ELK Series
Summary of Contents for Bühler technologies ELK Series
- Page 1 Fluidcontrol Oil/air cooler Installation and Operation Instructions Original instructions BE350034 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen 08/2022 Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 E-Mail: fluidcontrol@buehler-technologies.com Internet: www.buehler-technologies.com...
- Page 2 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 Internet: www.buehler-technologies.com E-Mail: fluidcontrol@buehler-technologies.com Read this instruction carefully prior to installation and/or use. Pay at- tention particularly to all advises and safety instructions to prevent in- juries.
-
Page 3: Table Of Contents
Contents Introduction............................................. 2 Intended use ......................................... 2 Model key.......................................... 2 Scope of delivery ........................................ 2 Safety instructions......................................... 3 Important advice ......................................... 3 General hazard warnings .................................... 4 Transport and storage ........................................ 5 4 Installation and connection ...................................... 6 Requirements to the installation site................................ 6 Installing the unit........................................ 6 4.2.1 Installing swivel nuts in the fitting body ............................. -
Page 4: Introduction
1 Introduction 1.1 Intended use ELK oil/air coolers are used to cool oils in hydraulic and lubrication circuits. Their scope is indicated in the specifications. Any other applications require the prior approval of Bühler Technologies GmbH. 1.2 Model key ELK 300-4-50/60Hz-xxx Motor frequency (on the ELK 600, the 50 and 60 Hz versions are different, see table "Basic data") Number of motor contacts... -
Page 5: Safety Instructions
2 Safety instructions 2.1 Important advice Operation of the device is only permitted if: – the product is used under the conditions described in the installation- and operation instruction, the intended application according to the type plate and the intended use. In case of unauthorized modifications done by the user Bühler Technolo- gies GmbH can not be held responsible for any damage, –... -
Page 6: General Hazard Warnings
2.2 General hazard warnings The equipment must be installed by a professional familiar with the safety requirements and risks. Be sure to observe the safety regulations and generally applicable rules of technology relevant for the installation site. Prevent malfunctions and avoid personal injuries and property damage. The operator of the system must ensure: –... -
Page 7: Transport And Storage
3 Transport and storage Only transport the product inside the original packaging or a suitable alternative. Ensure secure fastening and mooring. Air coolers have M8 or M10 eye bolts at the top of the cooler housing for transport. Please note, due to the variety of versions the mounting bracket is not located at the centre of gravity and the cooler may swing when hoisted. -
Page 8: Installation And Connection
4 Installation and connection 4.1 Requirements to the installation site Aggregate The aggregate must be set up to allow for unobstructed air flow and adequate room for maintenance/repairs. When installed outdoors, be sure to consider the motor protection rating (standard: IP 55) and ensure adequate protection from the weather. Air cooler The cooler must be located in such a way that the air flowing through the matrix has free flow on entry and exit. -
Page 9: Hydraulic Connection
4.3 Hydraulic connection Carry out the hydraulic connection as described in the attached data. Connect the lines stress and vibration free, so typically us- ing hoses. Be sure to use suitable lines (with regard to pressure, fluid resistance, environmental influences, fire) when connecting to the hydraulic-, lubrication circuit. -
Page 10: Electrical Connection Temperature Switch Tsa (Accessory)
4.4.1 Electrical connection temperature switch TSA (accessory) The temperature switch TSA is installed in a cooling circuit with an oil/air cooler ELK as a typical application. Through reaching the switching temperature the fan-motor is switched-on and the oil will be cooled. After falling under the hysteresis the motor shuts off. -
Page 11: Operation And Control
5 Operation and control WARNING Danger due to rotating fan Injuries to the hand may occur. Do not reach into the safety guard! NOTICE The device must not be operated beyond its specifications. NOTICE Abrupt flow variation can lead to pressure peaks that may damage the cooler matrix. Make sure that the specifications are not exceeded in this case! 5.1 Before starting –... -
Page 12: Maintenance
6 Maintenance During maintenance, remember: – The equipment must be maintained by a professional familiar with the safety requirements and risks. – Only perform maintenance work described in these operating and installation instructions. – Observe the respective safety regulations and operating specifications when performing any type of maintenance. –... -
Page 13: Cleaning And Disassembly Of The Cooler Matrix
6.1 Cleaning and disassembly of the cooler matrix Due to the design of the cooling fins, the cooler has low susceptibility to dust and dirt. Normally, it is sufficient to clean the front surface with a brush. However, particularly if the air has a high dust and/or oil mist content, the cooling matrices may require regular cleaning. -
Page 14: Service And Repair
7 Service and repair This chapter contains information on troubleshooting and correction should an error occur during operation. Repairs to the unit must be performed by Bühler authorised personnel. Please contact our Service Department with any questions: Tel.: +49-(0)2102-498955 or your agent For further information about our services and customised maintenance visit http://www.buehler-technologies.com/service. -
Page 15: Disposal
8 Disposal Dispose of the parts in such a way that does not present a danger to other people’s heath or to the environment. Observe the legal requirements in the country of use for the disposal of electrical components and oils and coolants. BE350034 ◦... -
Page 16: Appendices
9 Appendices 9.1 Technical data Technical Data Materials/surface protection Cooling matrix: Aluminium, powder-coated Fan hub: Aluminium, bare Fan blades: Glass-reinforced polypropylene (PPG), bare Ventilation box, guard and motor brackets: Steel, galvanised, powder-coated Screw connections: V2A stainless steel Hydraulic screw fittings: Steel, zinc-nickel coated Colour: Steel parts: RAL 9005, jet black... -
Page 17: Power And Pressure Loss Graphs
Fig. 2: Pressure loss Note: When installed outdoors or using higher viscosities, an additional bypass valve may be required. These are not available for the ELK series. In this case, use our BLK series or an external bypass valve. BE350034 ◦ 08/2022... -
Page 18: Dimensions
9.2 Dimensions Type ELK100 2x G3/4" ELK200 2x G3/4" ELK300 2x G1" ELK400 2x G1" ELK500 2x G1" ELK600 2x G1" 9.3 Functional diagram Standard ELK version Direction of flow left to right or vice versa. With temperature switch attached Bühler Technologies GmbH BE350034 ◦... -
Page 19: Installation Torques And Clamping Range For Cable Fitting
9.4 Installation torques and clamping range for cable fitting Strain relief clamping Installation torque (Nm) Size range (mm) M12x1,5 M16x1,5 5-9,5 M20x1,5 8-13 M25x1,5 11-17 M32x1,5 15-21 M40x1,5 19-28 M50x1,5 27-35 M63x1,5 32-42 9.5 Screw torques Thread Torque (Nm) 9.6 Hose torques Connections/mounts Torque (Nm) Hose connections DN20... -
Page 20: Table Of Operational Viscosity For Vg Oil
9.7.2 Table of operational viscosity for VG oil 10 °C 20 °C 30 °C 40 °C 50 °C 60 °C 70 °C 80 °C 90 °C VG 46 264,45 131,96 73,58 46,00 29,13 20,04 14,43 10,78 8,32 VG 68 444,77 210,85 112,61 68,00... -
Page 21: Pressure Loss In Straight Pipes
9.8 Pressure loss in straight pipes Pressure loss (bar) per metre in straight tubing with laminar flow of mineral oil: BFP 8 8 l/min – DN 25 VG 46 VG 68 VG 120 VG 160 VG 220 VG 320 VG 460 VG 680 10 °C 0.03... -
Page 22: Attached Documents
10 Attached documents – Declaration of Conformity KX350006 – RMA - Decontamination Statement 20 Bühler Technologies GmbH BE350034 ◦ 08/2022... - Page 24 RMA-Formular und Erklärung über Dekontaminierung RMA-Form and explanation for decontamination RMA-Nr./ RMA-No. Die RMA-Nummer bekommen Sie von Ihrem Ansprechpartner im Vertrieb oder Service./ You may obtain the RMA number from your sales or service representative. Zu diesem Rücksendeschein gehört eine Dekontaminierungserklärung. Die gesetzlichen Vorschriften schreiben vor, dass Sie uns diese Dekontaminierungserklärung ausgefüllt und unterschrieben zurücksenden müssen.
- Page 25 Dekontaminierungserklärung DE000011 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen 01/2019 Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 E-Mail: service@buehler-technologies.com Internet: www.buehler-technologies.com...
