6.3.8 Replacing Push Handles / Replacing Push Handles and Backrest

If the push handles are replaced with a different type of push handles, e.g. height-adjustable ones, it can happen that the
rear frame must also be replaced.
Changing the backrest height can also mean that the configuration of the hook and loop bands must be changed.

6.3.9 Installing standard Push Handles

Allen key (4 mm, 5 mm) / Socket spanner (8, 10) / Phillips screwdriver (4)

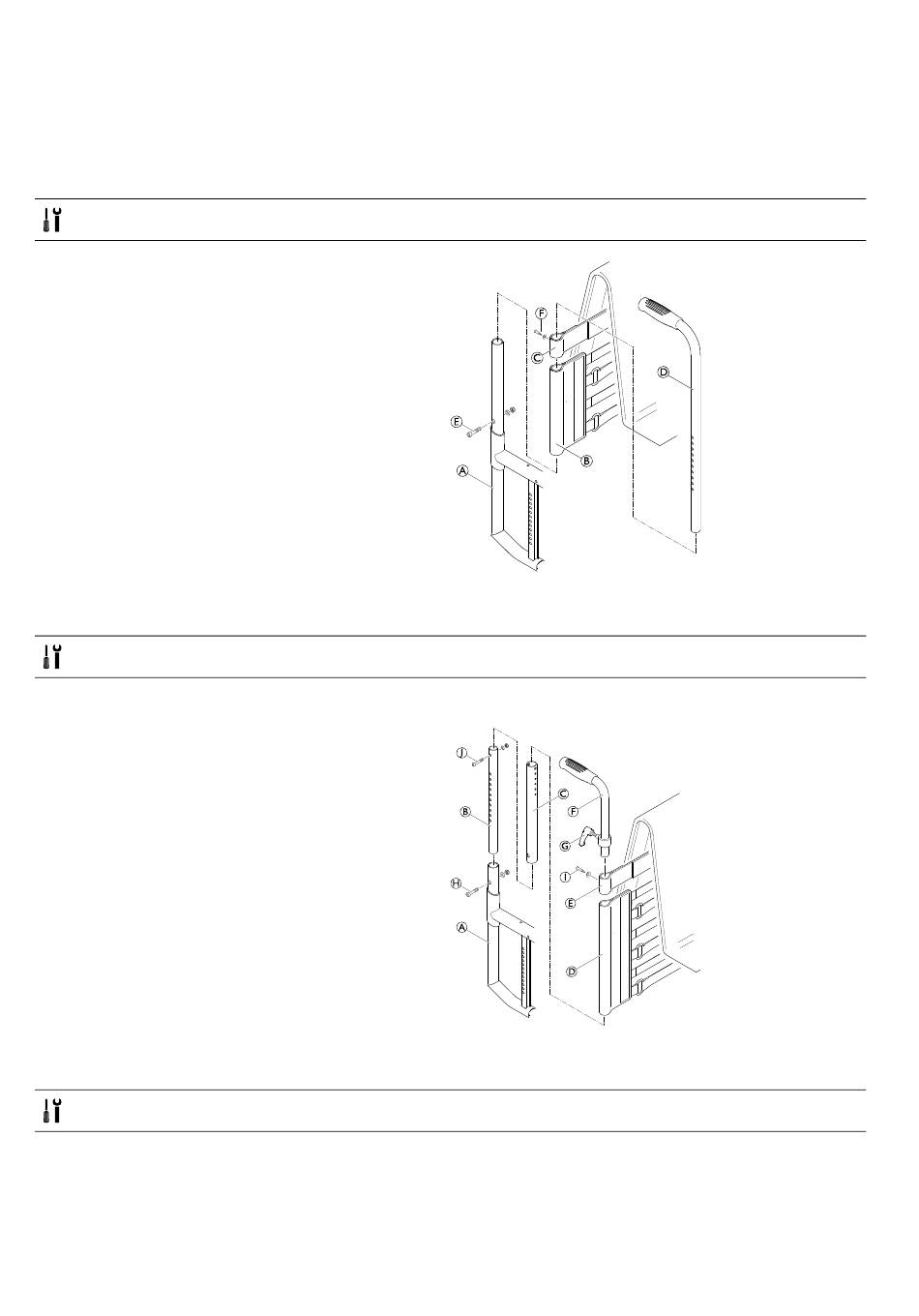

1. Push the end band C onto the telescopic tube D.
2. Push the backrest bands B onto the telescopic tube.
3. Secure end band at the telescopic tube using washer
and screw F.
4. Secure the telescopic tube D to the rear frame A at
the required height using bolt, washer and nut E.
E = 7 Nm
F = hand-tight
6.3.10 Installing height-adjustable, integrated Push Handles
Allen key (4 mm, 5 mm) / Socket spanner (8, 10) / Phillips screwdriver (4)
Special rear frame required for RH 300 – 465 (variant II)
1. Push lower telescopic tube B and upper telescopic tube
C into one another, insert screw and nut J and tighten.
2. Secure pre-assembled element (telescopic tubes B and
C) at the required height on the rear frame A using
bolt H, washer and nut.
3. Push the hook and loop bands D and end band E onto
the telescopic tubes.
4. Using the clamp bolt G secure the height adjustable
push handle F through the telescopic tube C.
5. Push in push handle completely.
6. Secure end band E on the telescopic tube C using
screw I.
H = 7 Nm
I = hand tight
J = 7 Nm
6.3.11 Installing height-adjustable, rear set Push Handles
Allen key (4 mm, 5 mm) / Socket spanner (8, 10) / Phillips screwdriver (4)
The hook and loop bands may have to be replaced with narrower ones, as space is required to secure the holder on
the telescopic tube.
