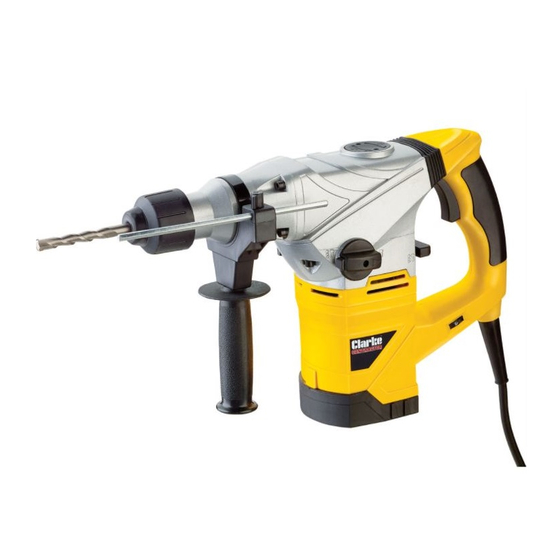

- Page 1 ROTARY HAMMER DRILL MODEL NO: CON1500RDV PART NO: 6479605 OPERATION & MAINTENANCE INSTRUCTIONS LS1215...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Hammer Drill. The CRD1500RDV is designed for general drilling/masonry drilling/chiselling/drill & hammer use in trade and light industrial applications. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED BELOW REFERS TO YOUR HAMMER DRILL. WORK AREA 1. Keep work area clean and well lit. Cluttered and dark areas invite accidents. - Page 4 5. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. POWER TOOL USE AND CARE 1. Do not force the power tool. Use the correct power tool for your application.
-
Page 5: Safety Symbols
SAFETY SYMBOLS Read instruction Wear dust mask manual before use Class 2 Double Wear ear defenders Insulated CE Mark Wear safety glasses Weee Directive ENVIRONMENTAL RECYCLING POLICY Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling &... -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. Connecting it to any other power source may cause damage. - Page 7 OVERVIEW NO DESCRIPTION NO DESCRIPTION SDS Chuck Speed Control Rotation Stop Switch Motor Grease Port Cover Front Handle Trigger Depth Stop Hammer Action Selector Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 8: Before Use
BEFORE USE POSITIONING THE FRONT HANDLE The front handle can be positioned left, right or centre as required. 1. Loosen the handle by twisting it clockwise (when viewed from above). 2. Rotate the handle to the required position. 3. Secure the handle by twisting it anticlockwise (when viewed from above). - Page 9 INSERTING A DRILL BIT / CHISEL The chuck clamps SDS drill bits and chisels without the need for a chuck key. 1. Pull back the collar and Insert the bit. • Turn the bit in the chuck until it latches. 2.
-
Page 10: Selecting The Operating Mode
SELECTING THE OPERATING MODE CAUTION: THESE OPERATIONS SHOULD ONLY BE PERFORMED WHEN THE DRILL IS AT A COMPLETE STOP. Mode Hammer Action selector Rotation selector Drill Only Drill Only Hammer Drill Hammer Assisted Drilling Hammer only (no rotation) Hammer Assisted Chiselling OFF HAMMER ACTION SELECTOR 1. -
Page 11: Speed Selector
SPEED SELECTOR The speed may be pre-selected by turning the variable speed control from 1 to 6. FITTING THE STANDARD CHUCK 1. Pull back locking sleeve and hold it back. 2. Insert the standard chuck. 3. Release the chuck collar. NOTE: Make sure the chuck is secure before use. -
Page 12: Using The Drill
USING THE DRILL BEFORE STARTING WORK 1. Before drilling into walls and floors etc., check first that there are no hidden electrical cables, gas or water pipes etc. 2. Check the mains voltage before plugging in and switching on. 3. Ensure the work area is as hazard free as possible. STARTING WORK 1. -
Page 13: Drilling Tips
DRILLING TIPS • Always use sharp, good quality drill bits. The performance of your drill is dependant on the quality of the bits used. • After drilling material to the full depth, do not simply pull out the drill but maintain chuck rotation to ease withdrawal. -
Page 14: Maintenance And Servicing
• There are no other user serviceable parts in this machine. Refer to your CLARKE dealer if internal maintenance is required. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Specifications
SPECIFICATIONS Voltage and Frequency 230Vac~ 50Hz -1ph Rated Input Power 1500 Watts Electrical Class IP Rating IP20 Chuck capacity/type SDS Plus 13mm keyed chuck adapter Rotational Speed 200 -750 rpm Impact Rating 650 - 3000 (blows/min) Maximum Drilling Capacity: Wood 40 mm Steel 13 mm... -
Page 16: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 17: Parts List
PARTS LIST DESCRIPTION DESCRIPTION Front Cover O Ring Circlip Locating Washer Washer Circlip Chuck Sleeve Oil Seal Spring Crank Shaft Case Cylinder Case Grease Port Cover Bolt O Ring Spring Washer Small Bevel Gear Flat Washer O Ring Bearing Guard Ring Sleeve Washer Steel Ball Needle Bearing... - Page 18 DESCRIPTION DESCRIPTION Needle Bearing Power Cable Screw Cable Sheath Lock Plate Cable Clamp Screw Self-tapping Screw Stop Plate Capacitor Gear Case Switch Eccentric Shaft Inductor Circlip Anti-vibration Ring Striking Fork Self-tapping Screw Right Handle Spring Speed Control Screw Clamp Collar Knob Thumbscrew Knob Spring...
-
Page 19: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
