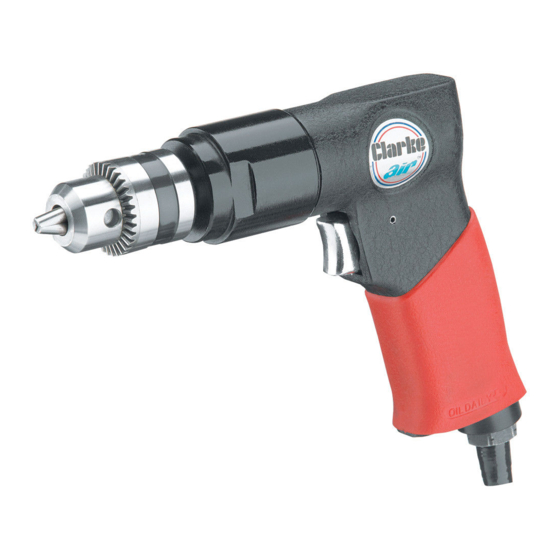

- Page 1 ³ ” AIR DRILL MODEL NO: CAT116 PART NO: 3110872 OPERATION & MAINTENANCE INSTRUCTIONS LS0410...
-
Page 2: Environmental Protection
INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. - Page 4 11. Always disconnect from the air supply when: • Performing any maintenance • The air drill is not in use. • The air drill will be left unattended. • Moving to another work area. • Passing the air drill to another person. 12.
- Page 5 OVERVIEW DESCRIPTION DESCRIPTION Chuck Handle Trigger Air hose connector Oil Port Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 6: Before Use
BEFORE USE AIR SUPPLY WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source for the air drill. -
Page 7: Inserting/Removing The Drill Bit
4. Your air drill is now ready for use. You can fit a whip hose with a quick fit coupling if required (available from your Clarke dealer.) INSERTING/REMOVING THE DRILL BIT 1. Open the chuck jaws by inserting... -
Page 8: Operation
A wide range of accessories are available, including Filter/Regulators, Lubricators, High Pressure Hoses (5 to 100 Metres), etc. Contact your CLARKE dealer for further information, or CLARKE International Sales Department on 01992 565 333. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 9: Maintenance
• Drain water from air tank, air line and compressor. • Pour a few drops of CLARKE air line oil, into the air inlet. This should be carried out regardless of whether or not an air line lubricator is used. -
Page 10: Specifications
• If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of Clarke air line oil into the air inlet, and run the tool for 5 seconds in order to lubricate the internal parts. -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
