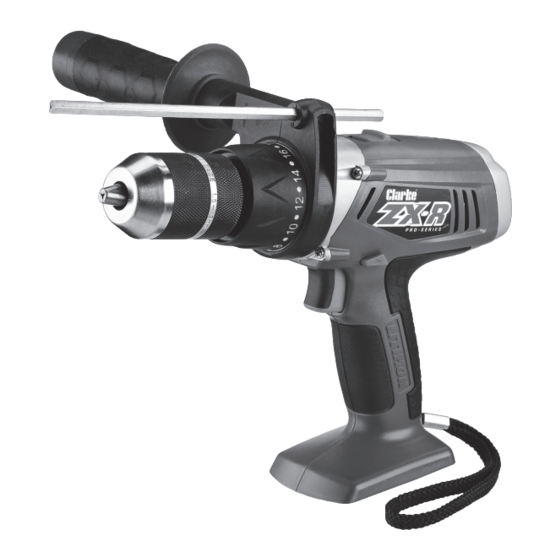

- Page 1 20V HAMMER DRILL MODEL NO: CDD20Li PART NO: 6487010 OPERATION & MAINTENANCE INSTRUCTIONS LS1013...
-
Page 2: What's Supplied
This guarantee does not effect your statutory rights. WHAT’S SUPPLIED Unpack your tool and make sure that the following items are present. Should there be any damage caused during transit contact your Clarke dealer immediately. 1 x 20 Volt Hammer Drill 1 x Auxiliary handle with depth gauge Parts &... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED BELOW REFERS TO YOUR 20V HAMMER DRILL. 1) WORK AREA SAFETY a. - Page 4 c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d.
-
Page 5: Environmental Protection
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. -
Page 6: Hammer Drill Safety Instructions
2. Using the correct bit. Use the appropriate drill bit for the material being drilled. Different bits are available from your Clarke dealer. 3. Allow sufficient clearance beneath the work to ensure the drill bit does not come into contact with the floor, table etc. -
Page 7: Before Use
BEFORE USE FITTING THE BATTERY PACK (NOT SUPPLIED) This hammer drill requires a 20V battery pack (6487040) and 1 Hour Charger (6487050) to operate. Both are available separately from your local Clarke dealer. TO FIT THE BATTERY 1. Slide the battery pack onto the base of the impact drill. -
Page 8: Inserting Drill Bits, Or Screwdriver Bits
INSERTING DRILL BITS, OR SCREWDRIVER BITS WARNING: BEFORE REMOVING ANY BITS, MAKE SURE THAT THE FORWARD/REVERSE SWITCH IS IN THE CENTRAL LOCKED OFF POSITION. 1. Grip the chuck collar and rotate the front of the chuck in an anti- clockwise direction (when viewed from the front). -
Page 9: Speed Range
SPEED RANGE Use the speed range selector to select the range you want to use. • Setting 1 - 0-350 rpm • Setting 2 - 0-1250 rpm NOTE: Only use the speed range selector when the chuck is stationary. SELECTING THE DRILLING MODE WARNING: DO NOT CHANGE THE DRILLING MODE WHILE THE CHUCK IS ROTATING. -
Page 10: Torque Adjustment
TORQUE ADJUSTMENT To select the correct torque setting for screwdriving: 1. Set the mode adjustment collar to 2. Fit and tighten the first screw. • If the clutch starts to ratchet before the screw is correctly seated, rotate the mode selector to a higher number until the clutch ratchets only when the head of the screw is... -
Page 11: Drilling Tips
DRILLING TIPS • Always use sharp, good quality drill bits. The performance of your drill is dependant on the quality of the bits used. • After drilling material to the full depth, do not simply pull out the drill but maintain chuck rotation to ease withdrawal. •... -
Page 12: Screwdriving Tips
SCREWDRIVING TIPS • Make sure that the screwdriver bit is inserted straight and upright in the screw head, or the screw may be damaged. • When driving wood screws, pre-drill pilot holes to make driving easier and to prevent splitting the material. •... -
Page 13: Specifications
SPECIFICATIONS MODEL CDD20L Voltage Battery Type (Supplied Separately) Li-Ion Chuck Capacity 1.5-13 Impact Rate Low 0-4550 Blows Per Minute High 0-16250 No Load Speed Low 0-350 High 0-1250 Weight (without battery pack) Dimensions (without battery pack) (L x W x H) 263 x 70 x 205 Sound Pressure Level (LPA) dB(A) -
Page 14: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Clarke Zx-R Range
CLARKE ZX-R RANGE The Clarke ZX-R 20V cordless power tools are designed as a high power and quality solution for the tradesman that requires a number of different tool types. Hammer Drill. Jig Saw Model: Model: CDD20Li CJS20Li Part Number:...
