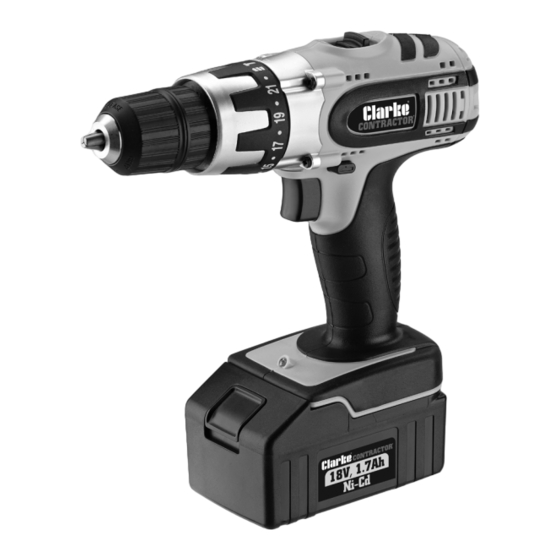

- Page 1 CON18NI.fm Page 1 Tuesday, August 21, 2012 11:53 AM 18V CORDLESS COMBI DRILL MODEL NO: CON18NI PART NO: 6485067 OPERATION & MAINTENANCE INSTRUCTIONS LS0812...
-
Page 2: Carton Contents
This guarantee does not effect your statutory rights. CARTON CONTENTS The following items should be supplied in the carton. If any parts are missing or damaged, please see your Clarke dealer where you purchased the bench grinder. 1 x 18 Volt Cordless Drill... -
Page 3: Safety Precautions
CON18NI.fm Page 3 Tuesday, August 21, 2012 11:53 AM SAFETY PRECAUTIONS WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED BELOW REFERS TO YOUR 18V CORDLESS COMBI DRILL. - Page 4 CON18NI.fm Page 4 Tuesday, August 21, 2012 11:53 AM 4. POWER TOOL USE AND CARE a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate which it was designed.
-
Page 5: Environmental Protection
CON18NI.fm Page 5 Tuesday, August 21, 2012 11:53 AM 6. SERVICE 1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. ENVIRONMENTAL PROTECTION Recycle unwanted materials instead of disposing of them as waste. -
Page 6: Electrical Connections
CON18NI.fm Page 6 Tuesday, August 21, 2012 11:53 AM ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. This product battery charger is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply. Should the plug need changing at any time, ensure that a plug of identical specification is used. - Page 7 CON18NI.fm Page 7 Tuesday, August 21, 2012 11:53 AM BATTERY CHARGING AND FITTING WARNING: WHEN THE BATTERY IS REMOVED FROM THE TOOL AFTER USE, IT MAY BE HOT. ALWAYS ALLOW TO COOL BEFORE RECHARGING. DO NOT RECHARGE A HOT BATTERY. •...
-
Page 8: Before Use
CON18NI.fm Page 8 Tuesday, August 21, 2012 11:53 AM BEFORE USE FITTING THE BATTERY FIT THE BATTERY 1. Slide the battery pack onto the base of the handle. REMOVE THE BATTERY 1. Press and hold the release button on top of the battery. 2. -
Page 9: Speed Range
CON18NI.fm Page 9 Tuesday, August 21, 2012 11:53 AM ADJUSTMENTS FORWARD/REVERSE The forward/reverse switch is used to select the direction of rotation. 1. Use the forward/reverse switch to select the direction of rotation. 2. Reverse should only be selected when removing screws. SAFETY LOCK OFF The forward/reverse switch can be used as the safety lock off button by... -
Page 10: Selecting The Drilling Mode
CON18NI.fm Page 10 Tuesday, August 21, 2012 11:53 AM SELECTING THE DRILLING MODE WARNING: DO NOT CHANGE THE DRILLING MODE WHILE THE CHUCK IS ROTATING. The drill is equipped with two drilling modes. Hammer drilling mode Rotary drill mode CAUTION: WHEN IN THE HAMMER DRILLING MODE YOU SHOULD ONLY USE MASONRY DRILL BITS (NOT SUPPLIED). -
Page 11: Torque Adjustment
CON18NI.fm Page 11 Tuesday, August 21, 2012 11:53 AM TORQUE ADJUSTMENT To select the correct torque setting for screwdriving: 1. Set the mode selector to 1. 2. Fit and tighten the first screw, 3. if the clutch starts to ratchet before the screw is correctly seated, rotate the mode selector to a higher number until the... -
Page 12: Drilling Tips
CON18NI.fm Page 12 Tuesday, August 21, 2012 11:53 AM DRILLING TIPS • Always use sharp, good quality drill bits. The performance of your drill is dependant on the quality of the bits used. • After drilling material to the full depth, do not simply pull out the drill but maintain chuck rotation to ease withdrawal. -
Page 13: Screwdriving Tips
CON18NI.fm Page 13 Tuesday, August 21, 2012 11:53 AM SCREWDRIVING TIPS • Place the screwdriver bit in the head of the screw and apply light pressure to the drill. • If the screw head is not flush with the material, increase the torque and start again. -
Page 14: Specifications
CON18NI.fm Page 14 Tuesday, August 21, 2012 11:53 AM SPECIFICATIONS Model Number CCD18P Part Number 6485067 Charger voltage 230V~50Hz Battery voltage 18 volts (1700 mAh) Charging time 1 hour Keyless chuck capacity 0.8 mm -10 mm Torque settings No load speed Setting 1 - 0 - 350 RPM Setting 2 - 0 - 1250 RPM Maximum Drilling Capacity:... -
Page 15: Declaration Of Conformity
CON18NI.fm Page 15 Tuesday, August 21, 2012 11:53 AM DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 16 CON18NI.fm Page 16 Tuesday, August 21, 2012 11:53 AM...
