Summary of Contents for Clarke CONRHD720

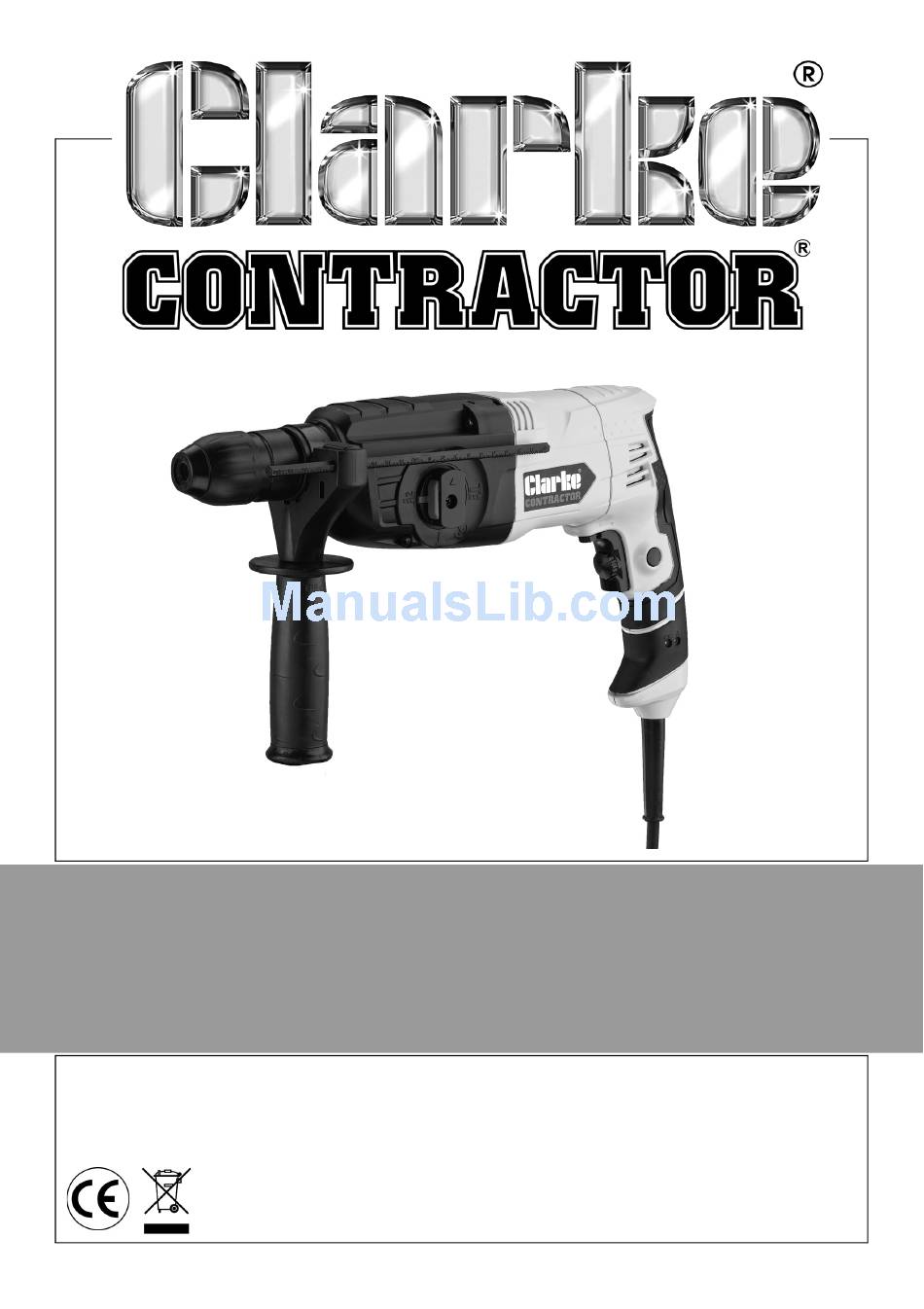

- Page 1 5 FUNCTION ROTARY HAMMER DRILL MODEL NO: CONRHD720 PART NO: 6480215 OPERATION & MAINTENANCE INSTRUCTIONS LS0712...
-
Page 2: What's Supplied
INTRODUCTION Thank you for purchasing this CLARKE 5 Function Rotary Hammer Drill. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL OF THE WARNINGS LISTED BELOW REFERS TO YOUR MAINS OPERATED (CORDED) POWER TOOL OR BATTERY OPERATED (CORDLESS) POWER TOOL. -
Page 4: Personal Safety
PERSONAL SAFETY 1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. -
Page 5: Hammer Drill Safety Instructions
2. Using the correct bit. Use the appropriate drill bit for the material being drilled. Different bits are available from your Clarke dealer. 3. Use of the mains cable. Keep the mains cable well away from the drill and ensure an adequate electrical supply is close at hand so that the operation is not restricted by the length of the cable. -
Page 6: Specific Safety Rules
SPECIFIC SAFETY RULES 10. For your safety, do not plug in your power tool until you have read and understood this Owner's Manual. 11. WEAR EYE PROTECTION. Use face or dust mask along with safety goggles if operation is dusty.Use hearing protection, particularly during extended periods of operation, wear safety shoes. -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 8: Adjusting The Side Handle
SETUP WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, TURN THE UNIT OFF AND DISCONNECT IT FROM THE MAINS SUPPLY BEFORE INSTALLING AND REMOVING ACCESSORIES ADJUSTING THE SIDE HANDLE 1. Loosen the handle by rotating the shaft of the handle clockwise (when viewed from above) 2. -
Page 9: Inserting And Removing Sds Bits
INSERTING AND REMOVING SDS BITS. This machine uses SDS bits and chisels 1. Wipe clean the bit shank. 2. Pull back the locking sleeve and insert the SDS bit. 3. Release the locking sleeve. 4. Pull on the bit to check if it is properly locked. -
Page 10: Operation
OPERATION PROPER HAND POSITION Always hold the drill securely and use the auxiliary handle as shown SELECTING THE OPERATING MODE CAUTION: THIS OPERATION SHOULD ONLY BE PERFORMED WHEN THE DRILL IS AT A COMPLETE STOP. 1. Push and hold the red button on the mode selector. -
Page 11: Switching On And Off
SWITCHING ON & OFF 1. Insert the mains plug into a mains power socket. 2. Squeeze the trigger to start the drill. 3. During use, press the trigger lock- on button and the drill will run continuously without you needing to press the trigger. -
Page 12: Before Use
• All bearings etc, in this tool are lubricated with a sufficient amount of high grade lubricant for the tools lifetime under normal operating conditions, therefore no further lubrication is necessary • Refer to your CLARKE dealer if internal maintenance is required. INDICATORS The Green indicator is a 'Power present' indicator. -
Page 13: Specifications
Dimensions (L x W x H) 400 x 250 x 90 mm Weight 3.5 Kg REPLACEMENT PARTS The following parts are replaceable by the end user, refer to the Clarke servicing department for any other repairs or damage. ESCRIPTION UMBER Dust Shield Cap... -
Page 14: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Popular Accessories
POPULAR ACCESSORIES Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
