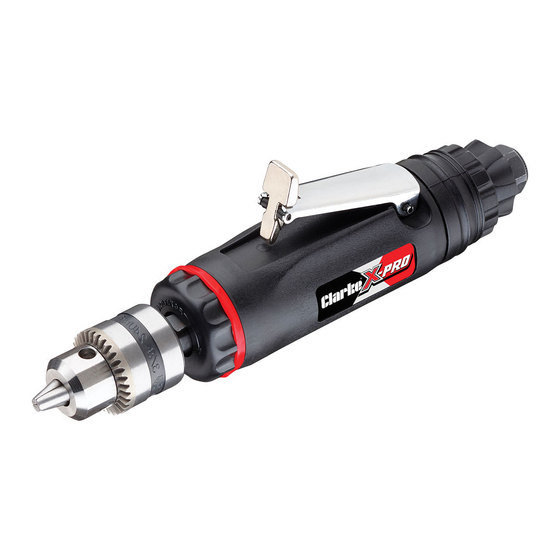

- Page 1 3/8”AIR DRILL MODEL NO: CAT207 PART NO: 3120524 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1019 -ISS 1...
-
Page 2: Specification
0.7 kg Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. THE WORK ENVIRONMENT 1. ALWAYS keep the work area clean and tidy. 2. ALWAYS dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. - Page 4 • The drill will be left unattended. • Moving to another work area. 14. DO NOT use the drill if it is defective or operating abnormally. 15. ALWAYS avoid damaging the drill by applying excessive force. 16. ALWAYS maintain the drill with care for the best and safest performance. 17.
-
Page 5: Compressed Air Requirements
COMPRESSED AIR REQUIREMENTS WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND A COMPRESSED AIR SUPPLY. A typical air line layout is shown below. If an automatic in-line filter/regulator is used, it will keep the air tool in good condition, but should be regularly checked and topped up with oil. - Page 6 Never exceed the maximum operating pressure for the tool. It is recommended that air pressure does not exceed 90 psi at the tool when running. Higher pressures and unclean air will shorten the life of any air tool due to faster wear and is a possible safety hazard. Use only clean, dry, regulated compressed air as a power source.
-
Page 7: Before Use
COMPRESSORS AND A COMPRESSED AIR SUPPLY. When opening the carton, check that all the items are present. Any damage or deficiency should be reported to your CLARKE dealer immediately. 1. Remove the plastic blanking plug from the air inlet connection. -
Page 8: Inserting/Removing The Drill Bit
INSERTING/REMOVING THE DRILL BIT 1. Open the chuck jaws by gripping the chuck key in one of the holes in the chuck and turning it as Drill bit shown. 2. Make sure that the head of the chuck key is located on the barrel of the chuck. -
Page 9: Operating The Drill
If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of CLARKE air line oil into the air inlet, and run the tool for 5 seconds in order to lubricate the internal parts. -
Page 10: Maintenance
4. Failing this, the drill should be disassembled, thoroughly cleaned, dried and reassembled. You may prefer to take the drill to your CLARKE dealer if internal maintenance is required. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 11: Troubleshooting
CLARKE International Service Department on 01992 565333. CLARKE Air Line Oil (part no. 3050825) is available from your CLARKE dealer along with a wide range of drill bits. The toughest and most durable of these are the cobalt steel sets, ideal for stainless steel and hard alloys. -
Page 12: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 13: Parts List
PARTS LIST Description No Description Main housing O-ring Housing liner Screw Bushing Decorative ring O-ring Bearing Trigger Rear plate Trigger lever Steel ball Spring Rotor Rotor blade Trigger Pin Cylinder Air inlet Bushing Spring Front plate Steel ball O-ring Air regulator Bearing O-ring Collet seat... -
Page 14: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 15 GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
