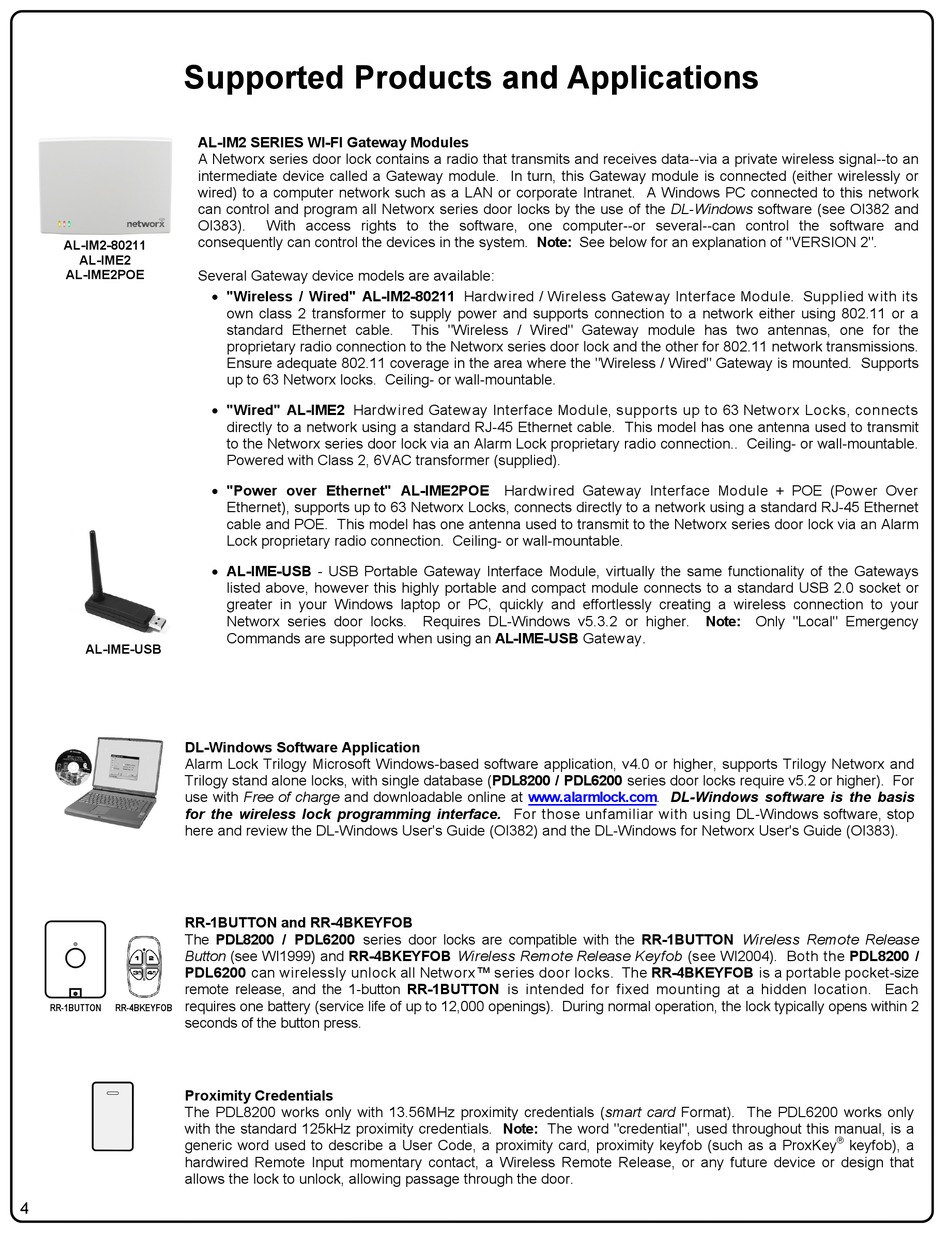

Supported Products and Applications
AL-IM2 SERIES WI-FI Gateway Modules
A Networx series door lock contains a radio that transmits and receives data--via a private wireless signal--to an
intermediate device called a Gateway module. In turn, this Gateway module is connected (either wirelessly or
wired) to a computer network such as a LAN or corporate Intranet. A Windows PC connected to this network
can control and program all Networx series door locks by the use of the DL-Windows software (see OI382 and
OI383).
consequently can control the devices in the system. Note: See below for an explanation of "VERSION 2".
AL-IM2-80211
AL-IME2
AL-IME2POE Several Gateway device models are available:
AL-IME-USB
DL-Windows Software Application
Alarm Lock Trilogy Microsoft Windows-based software application, v4.0 or higher, supports Trilogy Networx and
Trilogy stand alone locks, with single database (PDL8200 / PDL6200 series door locks require v5.2 or higher). For
use with Free of charge and downloadable online at www.alarmlock.com. DL-Windows software is the basis
for the wireless lock programming interface. For those unfamiliar with using DL-Windows software, stop
here and review the DL-Windows User's Guide (OI382) and the DL-Windows for Networx User's Guide (OI383).
RR-1BUTTON and RR-4BKEYFOB
The PDL8200 / PDL6200 series door locks are compatible with the RR-1BUTTON Wireless Remote Release
Button (see WI1999) and RR-4BKEYFOB Wireless Remote Release Keyfob (see WI2004). Both the PDL8200 /
PDL6200 can wirelessly unlock all Networx™ series door locks. The RR-4BKEYFOB is a portable pocket-size
remote release, and the 1-button RR-1BUTTON is intended for fixed mounting at a hidden location. Each
requires one battery (service life of up to 12,000 openings). During normal operation, the lock typically opens within 2
RR-1BUTTON RR-4BKEYFOB
seconds of the button press.
Proximity Credentials
The PDL8200 works only with 13.56MHz proximity credentials (smart card Format). The PDL6200 works only
with the standard 125kHz proximity credentials. Note: The word "credential", used throughout this manual, is a
generic word used to describe a User Code, a proximity card, proximity keyfob (such as a ProxKey
hardwired Remote Input momentary contact, a Wireless Remote Release, or any future device or design that
allows the lock to unlock, allowing passage through the door.
4
Supported Products
With access rights to the software, one computer--or several--can control the software and
 "Wireless / Wired" AL-IM2-80211 Hardwired / Wireless Gateway Interface Module. Supplied with its
own class 2 transformer to supply power and supports connection to a network either using 802.11 or a
standard Ethernet cable.
proprietary radio connection to the Networx series door lock and the other for 802.11 network transmissions.
Ensure adequate 802.11 coverage in the area where the "Wireless / Wired" Gateway is mounted. Supports
up to 63 Networx locks. Ceiling- or wall-mountable.
 "Wired" AL-IME2 Hardwired Gateway Interface Module, supports up to 63 Networx Locks, connects
directly to a network using a standard RJ-45 Ethernet cable. This model has one antenna used to transmit
to the Networx series door lock via an Alarm Lock proprietary radio connection.. Ceiling- or wall-mountable.
Powered with Class 2, 6VAC transformer (supplied).
 "Power over Ethernet" AL-IME2POE Hardwired Gateway Interface Module + POE (Power Over
Ethernet), supports up to 63 Networx Locks, connects directly to a network using a standard RJ-45 Ethernet
cable and POE. This model has one antenna used to transmit to the Networx series door lock via an Alarm
Lock proprietary radio connection. Ceiling- or wall-mountable.
 AL-IME-USB - USB Portable Gateway Interface Module, virtually the same functionality of the Gateways
listed above, however this highly portable and compact module connects to a standard USB 2.0 socket or
greater in your Windows laptop or PC, quickly and effortlessly creating a wireless connection to your
Networx series door locks.
Commands are supported when using an AL-IME-USB Gateway.
This "Wireless / Wired" Gateway module has two antennas, one for the
Requires DL-Windows v5.3.2 or higher. Note: Only "Local" Emergency
®
keyfob), a
