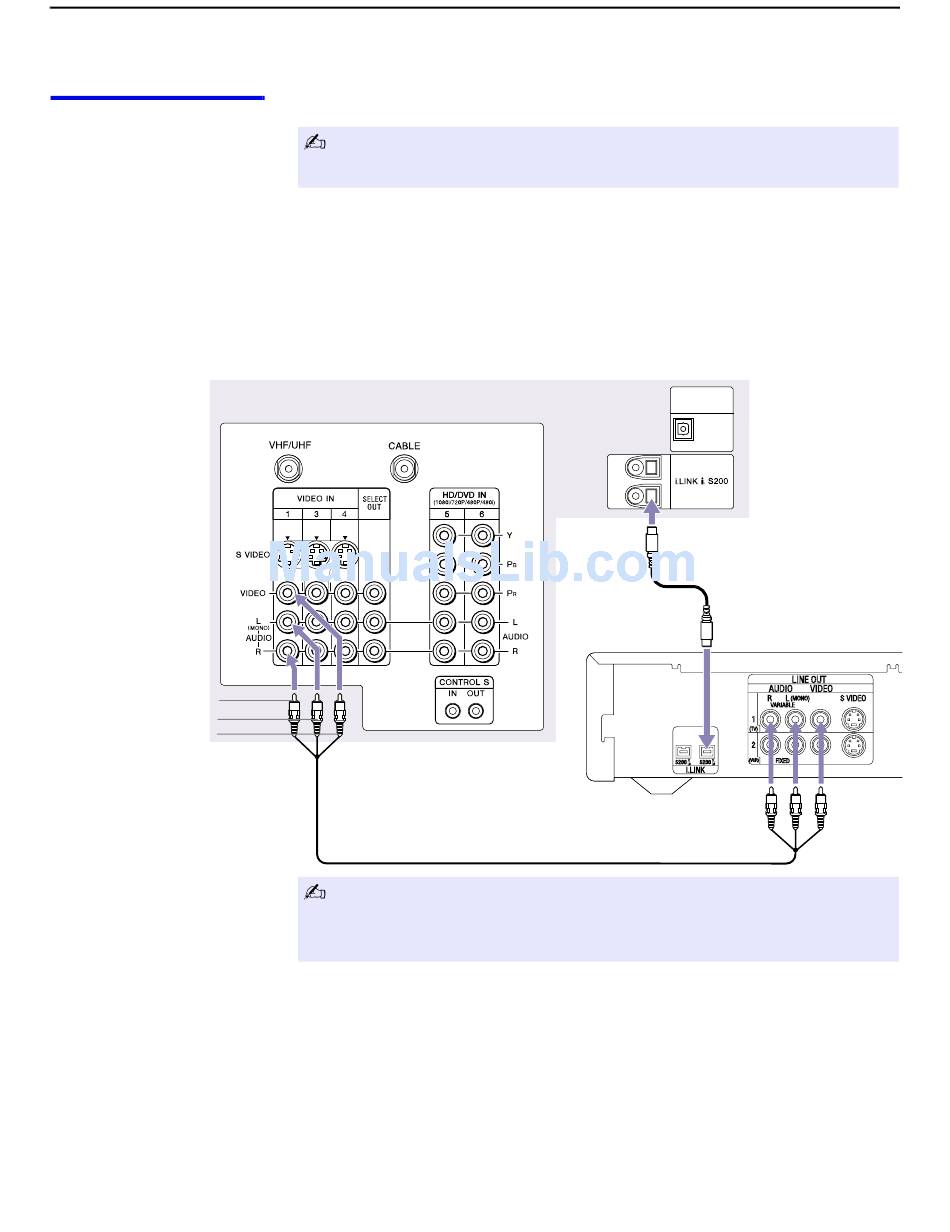

Connecting Cables
TV
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
Before connecting this unit to i.LINK-compatible equipment, see the instruction
manual of the i.LINK device to be connected.
1
Using an A/V cable, connect the i.LINK device's Audio and
Video OUT jacks to the projection TV's Audio and Video IN
jacks.
2
Using an i.LINK cable (see page 30), connect the device's i.LINK
jack to either of the projection TV's i.LINK jacks.
A/V cable
i.LINK devices can be "hotplugged" (connected and disconnected while they
are still powered on). The projection TV automatically recognizes the device
and displays the screen shown on page 33.
Setting Up the Projection TV
DIGITAL
AUDIO
(OPTICAL)
OUT
PCM/DOLBY DIGITAL
1
2
i.LINK cable
Sony digital cable
set-top box
31
