ZEUS4-VD INSTALLATION MANUAL
9.7

PROGRAMMING OUTPUT STATUS - OS

ZEUS4-VD device has 4 open collector outputs and each of them can be programmed through
network in a different way: as a bi-stable or mono-stable (pulse) output. The programming time is
in seconds.

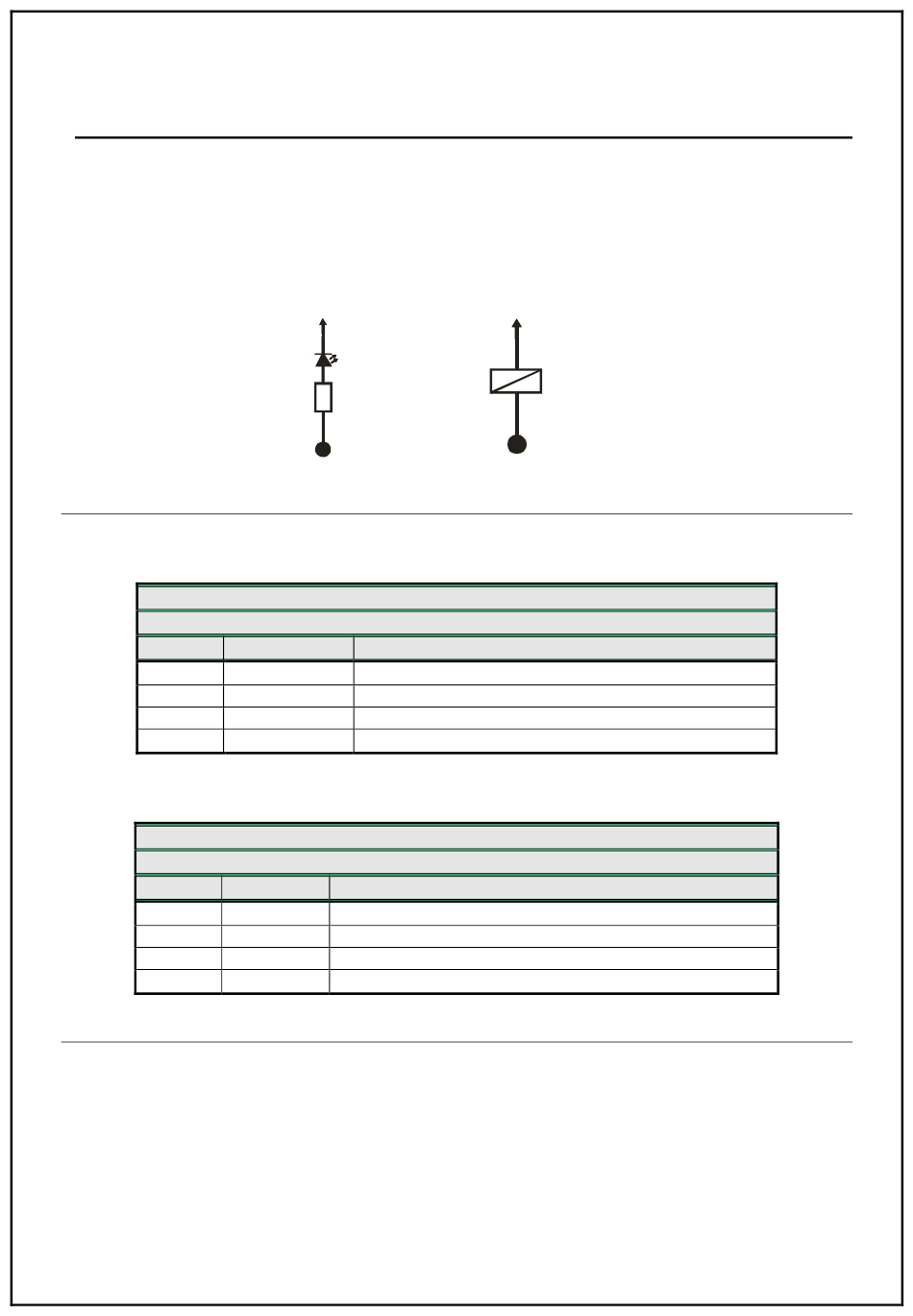

Typical connection for the output:
9.7.1 Programming table for output status
Default values:
Name Number (Default)
OS1
OS2
OS3
OS4
Example:
Name
OS1
OS2
OS3
OS4
9.7.2 OS remote programming by SMS
For the upper example send the following SMS from the host phone to the ZEUS4-VD:
;OS1=1;OS2=0;OS3=20;OS4=5;
If you would like to receive confirmation SMS write "+" before SMS command:
;+OS1=1;OS2=0;OS3=20;OS4=5;
OUTPUT 1-4
LED
R 1K
+12V DC
ZEUS4-VD PROGRAMMING TABLE
SIM CARD PHONE BOOK
1 Status for the 1
1 Status for the 2
1 Status for the 3
1 Status for the 4
ZEUS4-VD PROGRAMMING TABLE
SIM CARD PHONE BOOK
Number
1 ON/OFF mode output
0 Disabled output
20 20 second pulse output
5 5 second pulse output
OUTPUT 1-4
RELAY
12V DC
+12V DC
Description
st output – enabled
nd output – enabled
rd output – enabled
th output – enabled
Description
17
