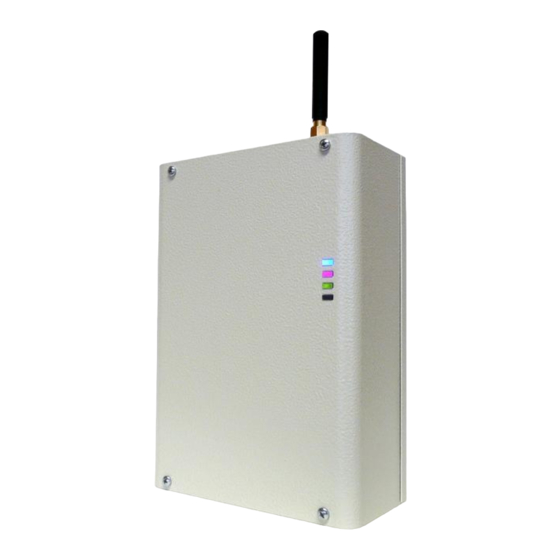

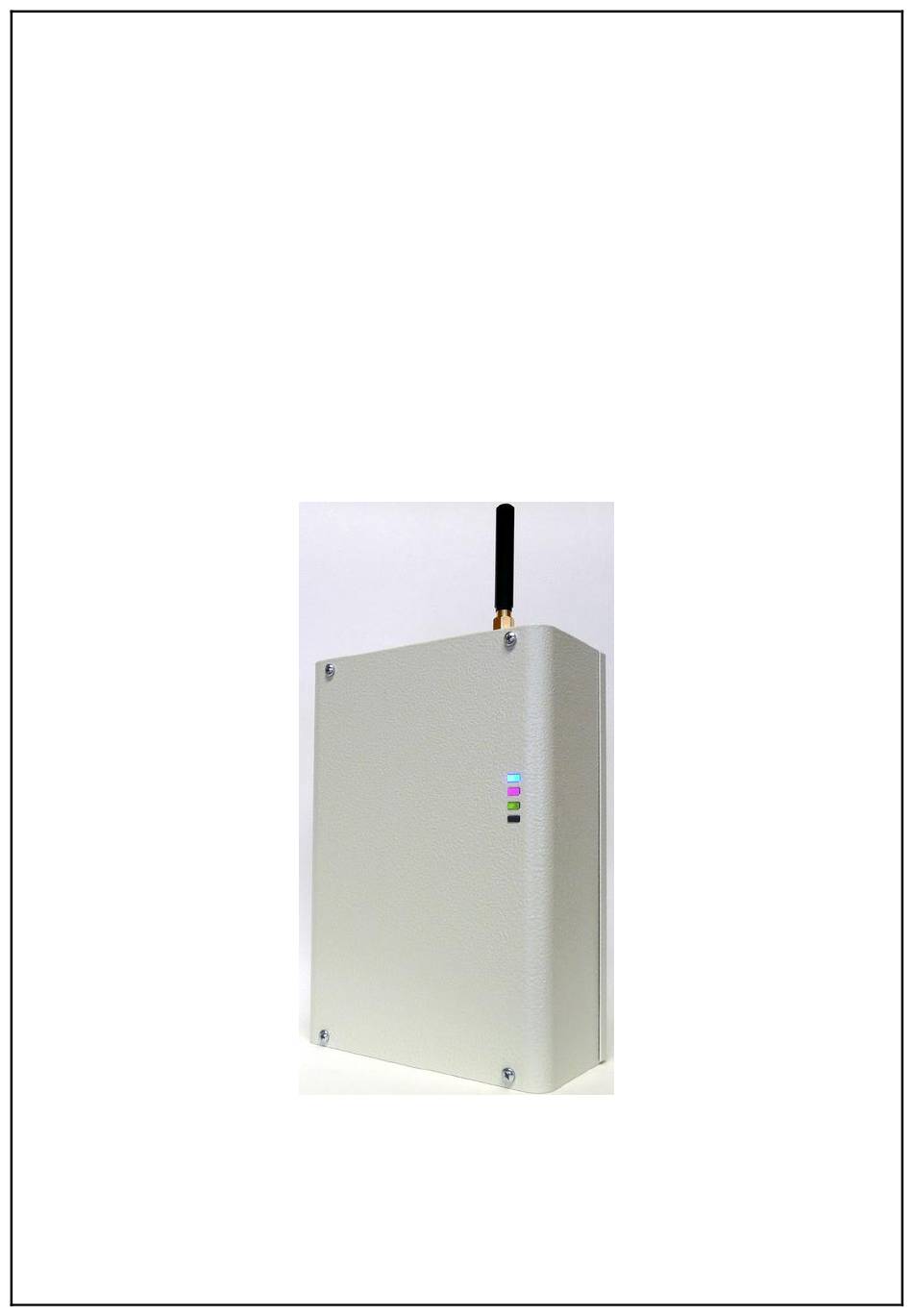

- Page 1 ZEUS4-VD VOICE & SMS GSM ALARM COMMUNICATOR INSTALLATION MANUAL V 2.0...
-
Page 2: Table Of Contents
ZEUS4-VD INSTALLATION MANUAL TABLE OF CONTENTS FOR YOUR SAFETY ........................ 1 INTRODUCTION ........................2 FEATURES AND APPLICATIONS ..................3 START UP ..........................4 LED DISPLAY ........................... 5 CLEAR ALL PROGRAMMED DATA FROM SIM ............. 6 CONNECTING DIAGRAM ..................... 7 VOICE MESSAGES – RECORD & PLAY ................8 8.1 RECORDING MODE ...................... - Page 3 OUTPUTS REMOTE CONTROL BY SMS COMMAND ..........31 14.2 OUTPUTS REMOTE CONTROL BY DTMF COMMAND ..........31 15 CHANGING PARAMETERS USING THE SMS COMMAND ......... 32 16 APPENDIX TO ZEUS4-VD MANUAL FOR CONTACT-ID (REV6) ......33 17 TECHNICAL SPECIFICATION ................... 34 18 CONTACTS ..........................35...
-
Page 4: For Your Safety
ZEUS4-VD INSTALLATION MANUAL FOR YOUR SAFETY Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH ON SAFELY Do not switch the unit on when use of wireless phone is prohibited or when it may cause interference or danger. -
Page 5: Introduction
ZEUS4-VD INSTALLATION MANUAL INTRODUCTION ZEUS4-VD communicator is a new mobile voice and SMS autodialing system. It is mostly used to provide wide range of alarm information and very useful remote controls. ZEUS4-VD can pass on messages about intrusion alarms, technical alarms, etc. by voice call or SMS to the end-user or directly by sending the Contact ID built-in to the Central Monitoring Station (CMS). -
Page 6: Features And Applications
ZEUS4-VD INSTALLATION MANUAL FEATURES AND APPLICATIONS Features: Built-in 3 or 4 band GSM module Contact ID protocol built-in 4 alarm inputs ON/OFF input 4 remotely controlled alarm outputs 4 prerecorded alarm messages – 1 for each alarm input 15 SMS alarm and service messages... -
Page 7: Start Up
Enter telephone numbers and the required operating parameters in SIM memory – at least 1 telephone No. (TN1) and 1 link (LN1) should be programmed (see installation manual). Insert SIM card in the GSM module applied for the ZEUS4-VD device. The unit must be power OFF when you insert the SIM! Connect alarm inputs and outputs to ZEUS4-VD. -
Page 8: Led Display
ZEUS4-VD INSTALLATION MANUAL LED DISPLAY Blue LED (LED1) Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak signal, 5 is excellent signal) Red LED (LED2) When LED 2 is ON the unit has a problem with a GSM network connection or the GSM part of the unit is out of order. -
Page 9: Clear All Programmed Data From Sim
WARNING!!! By sending this command to the ZEUS4-VD all programmed data are erased from the SIM card! This is highly recommended when a SIM card you are going to use for the ZEUS4-VD is not new and it already has some data stored in the phone book memory. -
Page 10: Connecting Diagram
ZEUS4-VD INSTALLATION MANUAL CONNECTING DIAGRAM... -
Page 11: Voice Messages - Record & Play
Headset is very common and it is use with many mobile phones but should be supplied also by your distributor. RECORDING MODE For recording and playing alarm messages ZEUS4-VD has a joystick switch which you can use in 4 different directions: Message 1 – UP Message 2 –... -
Page 12: Programming Mode
ZEUS4-VD sends an alarm prerecorded voice messages, an alarm SMS messages or both. If the corresponding name ends with the letter “V”, only voice message is sent and if the name ends with the letter “M” only SMS message is sent. -
Page 13: Programming Input Status - In
3rd telephone number (SMS message only) 9.1.1 TN remote programming by SMS For the upper example send the following SMS from the host phone to the ZEUS4-VD: ;TN1=042376678;TN2V=040719479;TN3M=040308350; If you would like to receive confirmation SMS write “+” before SMS command: ;+TN1=042376678;TN2V=040719479;TN3M=040308350;... - Page 14 Alarm activated by connecting to GND + RST SMS 9.2.1 IN parameter remote programming by SMS For the upper example send the following SMS from the host phone to the ZEUS4-VD: ;ION=0;IN1=0;IN2=1;IN3=2;IN4=4; If you would like to receive confirmation SMS write “+” before SMS command:...
-
Page 15: Inputs And Telephone No. Linking - Ln
Periodic Test SMS is sent to TN1 & TN2 9.1.2 LN remote programming by SMS For the upper example send the following SMS from the host phone to the ZEUS4-VD: ;LN8=12;LN1=13;LN2=123;LN3=5;LN4=45;LN7=12; If you would like to receive confirmation SMS write “+” before SMS command:... -
Page 16: Main Power Lost And Telephone No. Linking - Ln5
MAIN POWER LOST AND TELEPHONE NO. LINKING – LN5 ZEUS4-VD sends an SMS message in case of the main power failure. SMS message is sent to user. The default SMS is “Main Power Lost”. You can also program how long the unit can stay without power before sending this message. -
Page 17: Main Power Lost Filter Parameter - Main
Time can be set between 1 and 9999 seconds. The default value is 5 seconds. For example: When ZEUS4-VD is without main power supply for more than 5 seconds (default) it sends an SMS message with the following text: “Main Power Lost”. -
Page 18: Input Filter Parametr - Id
MAIN 9.4.2 MAIN POWER LOST - filter remote programming by SMS For the upper example send the following SMS from the host phone to the ZEUS4-VD: ;MAIN=9; If you would like to receive confirmation SMS write “+” before SMS command: ;+MAIN=9;... -
Page 19: Delay Before Dial - Dd
ZEUS4-VD INSTALLATION MANUAL 9.5.2 ID parameter remote programming by SMS For the upper example send the following SMS from the host phone to the ZEUS4-VD: ;ID1=5;ID2=30;ID3=2;ID4=0; If you would like to receive confirmation SMS write “+” before SMS command: ;+ID1=5;ID2=30;ID3=2;ID4=0;... -
Page 20: Programming Output Status - Os
ZEUS4-VD INSTALLATION MANUAL PROGRAMMING OUTPUT STATUS - OS ZEUS4-VD device has 4 open collector outputs and each of them can be programmed through network in a different way: as a bi-stable or mono-stable (pulse) output. The programming time is in seconds. -
Page 21: Direct Alarm Output - Od
ZEUS4-VD INSTALLATION MANUAL DIRECT ALARM OUTPUT – OD If you would like to activate a local alarm (siren) you can program any ZEUS4-VD output for this function. OD5 to OD8 are links between fictive inputs like telephone line failure, GSM failure to dedicated output. -
Page 22: Clip Function Parameter - Tc
Ten telephone numbers which are stored into the phone book from TN1 to TN0 can manage following functions using CLIP (Calling Line Identification Presentation) without making any cost to the user GSM bill. Trigger one of the ZEUS4-VD Output (parameter 1-4) Switch the system ON/OFF (parameter 5) System control with “Call-back” function (parameter 6) -
Page 23: Automatic Input Block System
ZEUS4-VD INSTALLATION MANUAL 9.9.2 TC parameter remote programming by SMS For the upper example send the following SMS from the host phone to the ZEUS4-VD: ;TC1=3;TC2=5;TC3=6; If you would like to receive confirmation SMS write “+” before SMS command: ;+TC1=3;TC2=5;TC3=6;... -
Page 24: Security Level - Sl
TN1 – TN0 can enter into programming and remote control unit of the ZEUS4-VD (dialing the ZEUS4-VD phone number or sending the SMS). NOTE: When the SL level is 0, an access to the ZEUS4-VD is possible from any phone! NOTE: Before any SL number is programmed the ZEUS4-VD can accept ALL CALLS. -
Page 25: Prepaid Card Credit And Validity Information
ZEUS4-VD INSTALLATION MANUAL PREPAID CARD CREDIT AND VALIDITY INFORMATION If prepaid SIM card is used in ZEUS4-VD it is very useful if we can receive the information about remaining credit. GSM providers have different ways to get the credit information. At the moment we can hold up 3 different strings. - Page 26 The default value is 5 rings. TST – A test SMS is sent periodically. ZEUS4-VD can send the test message in the interval ranging from 1hour up to 240 hours.
- Page 27 24 hours periodic test SMS 9.4.1 Set-up parameters programming by SMS For the upper example send the following SMS from the host phone to the ZEUS4-VD: ;CRE=2;HTN=0;SCV=360;MFN=29340;TST=24;RAN=5;MIC1=2;SPK=80; If you would like to receive confirmation SMS write “+” before SMS command:...
-
Page 28: Sms Messages Editor
ZEUS4-VD INSTALLATION MANUAL SMS MESSAGES EDITOR You can write and send a short SMS message for each alarm input. The default message is English, but it is possible to change language with LNG parameter. Each message is built from 3 parts and user can write the first (User Location) and the second (alarm event) part of the message. -
Page 29: Dtmf Remote Commands
ZEUS4-VD INSTALLATION MANUAL 10 DTMF REMOTE COMMANDS NOTE: If you cannot enter into remote mode, check the SL level first! 10.1 DTMF REMOTE COMMAND TABLE REMOTE COMMAND ACTION DESCRIPTION All outputs OFF All outputs ON Output 1 OFF Output 1 ON... -
Page 30: Print-Out Of The Parameters
ZEUS4-VD INSTALLATION MANUAL 11 PRINT-OUT OF THE PARAMETERS 11.1 RECEIVE ALL PARAMETERS (PALL) By sending this command to ZEUS4-VD you receive 14 SMS messages with all parameters that are currently programmed in the unit: ;PALL; 11.2 RECEIVE TELEPHONE NUMBERS (PTN) By sending this command to ZEUS4-VD you receive SMS message with all currently programmed telephone numbers (TN1 –... -
Page 31: Receive Access Telephone Numbers (Psl)
;P#; 11.12 RECEIVE THE POWER LEVEL ON THE UNIT (PPWR) By sending this command to ZEUS4-VD you receive SMS message with current main power level in volts or current battery voltage when the unit runs on the backup battery: ;PPWR;... -
Page 32: Checking And Changing The System Status (On/Off)
ZEUS4-VD INSTALLATION MANUAL 12 CHECKING AND CHANGING THE SYSTEM STATUS (ON/OFF) 12.1 CHECKING SYSTEM STATUS BY SMS COMMAND By sending this command to ZEUS4-VD you receive SMS message with state of the system: ;SYS; Return SMS can be: ;SYS= ON;... -
Page 33: Checking The Input Status
13.1 CHECKING THE INPUT STATUS BY DTMF Call ZEUS4-VD number and after short beep press the DTMF command. Response with 1 beep means that the input is in alarm state and response with 3 beeps means that the input is in normal (stand-by) state. -
Page 34: Outputs Remote Control
SMS command and receive the SMS message with output status 14.1 OUTPUTS REMOTE CONTROL BY SMS COMMAND By sending this command to ZEUS4-VD the output X is switched ON: ;ORCX=1; For X please choose one of the output numbers from 1 to 4. -
Page 35: Changing Parameters Using The Sms Command
CRE and would like to receive confirmation SMS, try next example: ;+TN1=+38640713470;IN1=1;IN2=1;OS3=15;ID1=120;LN1=1;CRE=4; Send SMS message to ZEUS4-VD telephone number and in a few seconds you receive SMS message from ZEUS4-VD. The sentence of the SMS must be the same as the one you have sent to ZEUS4-VD before. -
Page 36: Appendix To Zeus4-Vd Manual For Contact-Id (Rev6)
The CID code for each input is possible to change with any valid CID code. 5. The CID System Auto-test - TST =24 ZEUS4-VD will automatically send the Auto-test report every 24 hours to the CMS. The testing period is programmable. -
Page 37: Technical Specification
ZEUS4-VD INSTALLATION MANUAL 17 TECHNICAL SPECIFICATION Description Value Power Supply 13,8 - 14,5V DC Battery backup (optional) 12V/1,2Ah Current consumption - peak Current consumption - transmitting mode 250mA Current consumption - idle mode 40mA Tri band GSM module (QUAD optional) 900/1800/1900 MHz 105 ×... -
Page 38: Contacts
ZEUS4-VD INSTALLATION MANUAL 18 CONTACTS MARS COMMERCE d.o.o. MIRKA VADNOVA 19 4000 KRANJ SLOVENIJA TEL: +386 4 280 74 00 E-MAIL: info@mars-commerce.si WEB SITE: www.mars-commerce.com SALES JURE STIMAC E-MAIL: jure@mars-commerce.com TEHNICAL SUPPORT TOMAZ HRIBAR E-MAIL: tomaz@mars-commerce.com...
