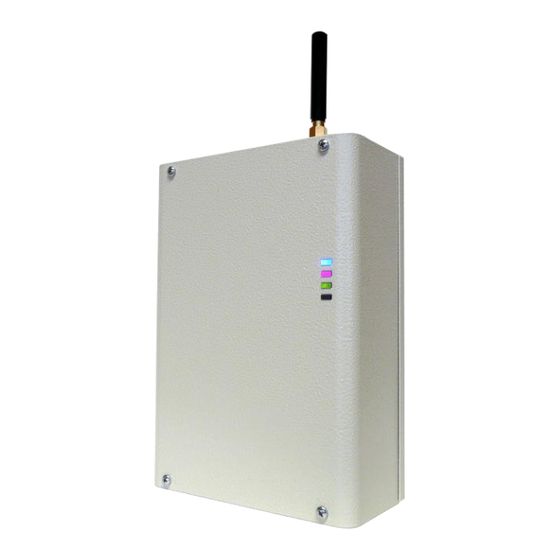

- Page 1 ZEUS4-VD VOICE & SMS GSM ALARM COMMUNICATOR INSTALLATION MANUAL Version Rev.12+: ZEUS4-VD_Manual_2_4_03082015.doc...
-
Page 2: Table Of Contents
DESCRIPTION OF TERMINAL BLOCKS................8 PROGRAMMING OPTIONS ....................9 10 VOICE MESSAGES – RECORD & PLAY ................10 10.1 RECORDING / LISTENING OF VOICE ALARM MESSAGES ..............10 11 ZEUS4-VD PARAMETERS ....................11 11.1 SECURITY LEVEL ............................11 11.2 ALARM SUPPORT ............................12 11.3... - Page 3 17 CHANGING PARAMETERS USING THE SMS COMMAND ......... 42 18 CONFIGURATION EXAMPLES ..................43 18.1 ALARM CONFIGURATION ......................... 43 18.2 CID EVENT REPORTING ..........................43 19 TECHNICAL SPECIFICATIONS ..................44 20 DEFAULT SETTINGS ON ZEUS4-VD ................45 21 CONTACTS ..........................48...
- Page 4 Table 34: LOG parameters example ....................34 Table 35: ORC parameters ......................... 41 Table 36: ORC parameters example ....................41 Table 37: ZEUS4-VD - Technical specifications ................44 Table 38: ZEUS4-VD - Default settings.................... 47 Figures Figure 1: Connection diagram ......................7 Figure 2: Recording / Listening of alarm messages ................
-
Page 5: For Your Safety
ZEUS4-VD INSTALLATION MANUAL FOR YOUR SAFETY Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH ON SAFELY Do not switch the unit on when use of wireless phone is prohibited or when it may cause interference or danger. -
Page 6: Introduction
INSTALLATION MANUAL INTRODUCTION ZEUS4-VD communicator is a new mobile voice and SMS autodialing system. It is mostly used to provide wide range of alarm information and very useful remote controls. ZEUS4-VD can pass on messages about intrusion alarms, technical alarms, etc. by voice call or SMS to the end-user or directly by sending the Contact ID built-in to the Central Monitoring Station (CMS). -
Page 7: Features And Applications
ZEUS4-VD INSTALLATION MANUAL FEATURES AND APPLICATIONS Features: Built-in 4 band GSM module Contact ID protocol built-in 4 alarm inputs System ON/OFF input 4 remotely/locally controlled trouble status output 4 prerecorded alarm messages – 1 for each alarm input ... -
Page 8: Start Up
Insert SIM card to be used for ZEUS4-VD in your personal mobile phone. IMPORTANT ERASE THE PIN CODE! Insert SIM card into SIM holder on the ZEUS4-VD device. The unit must be switched OFF when you insert the SIM! Connect the antenna to antenna connector. -
Page 9: Leds
ZEUS4-VD INSTALLATION MANUAL LEDs Blue LED (LED1) – Indicates the level of the GSM signal from 1 to 5 LED flashes (1 is weak signal, 5 is excellent signal) Red LED (LED2) When LED 2 is ON the unit has a problem with a GSM network connection or the GSM part of the unit is out of order. -
Page 10: Clear All Programmed Data From Sim
INSTALLATION MANUAL CLEAR ALL PROGRAMMED DATA FROM SIM This is highly recommended when a SIM card you are going to use for the ZEUS4-VD is not new and it already has some data stored in the phone book memory. By sending this SMS to ZEUS4-VD all programmed parameters and numbers are cleared: ;SDCLR;... -
Page 11: Connecting Diagram
ZEUS4-VD INSTALLATION MANUAL CONNECTING DIAGRAM Figure 1: Connection diagram... -
Page 12: Description Of Terminal Blocks
ZEUS4-VD INSTALLATION MANUAL DESCRIPTION OF TERMINAL BLOCKS +BATT/Ground – Battery backup connector. In the original metal box it is possible to place a 1,2Ah/12V battery. Red fasten connector is for positive and black fasten connector is for negative voltage battery supply. -
Page 13: Programming Options
PROGRAMMING OPTIONS ZEUS4-VD device supports different types of programming: To program ZEUS4-VD parameters put the SIM card into your personal GSM phone. Add programming parameters in SIM Card “Phone Book”. You can program ZEUS4-VD remotely by SMS command. -
Page 14: Voice Messages - Record & Play
10.1 RECORDING / LISTENING OF VOICE ALARM MESSAGES For recording and playing alarm messages ZEUS4-VD has a joystick switch which you can use in 4 different directions: Message 1 –... -
Page 15: Zeus4-Vd Parameters
TN0 can enter into programming and remote control unit of the ZEUS4-VD. NOTE When the SL level is 0, an access to the ZEUS4-VD is possible from any phone! Before any SL number is programmed the ZEUS4-VD can accept ALL IMPORTANT CALLS. -
Page 16: Alarm Support
ZEUS4-VD INSTALLATION MANUAL 11.2 ALARM SUPPORT Alarm reporting is supported by group of different parameters. First section is used to define the relations needed for alarm to be trigged. The second section is used to report alarm. 11.2.1 IN Parameters Alarm and reset input can be triggered in 4 different ways. -
Page 17: Table 4: In Parameters Example
ZEUS4-VD INSTALLATION MANUAL Example: Direct programming on the SIM card ZEUS4-VD PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description OFF – connecting GND on ON/OFF input Alarm activated by connecting to GND Alarm activated by disconnecting GND or +12V... -
Page 18: Table 7: Dd Parameters
Delay before dialing for Input 3 Delay before dialing for Input 4 Table 7: DD parameters Example: Direct programming on the SIM card ZEUS4-VD PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description Delay before dialing is 1 seconds for input 1... -
Page 19: Table 9: Tn Parameters
ZEUS4-VD is done via SMS messages or VOICE call. ZEUS4-VD makes a voice call, send alarm notification SMS message or both. If the corresponding name ends with the letter “V” only VOICE call is made and if the name ends with the letter “M”... -
Page 20: Table 11: Ln Parameters
Log status, telephone No. linking (TN1 – TN0) LN11 Table 11: LN parameters Example: Direct programming on the SIM card ZEUS4-VD PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description Refill SIM – SMS is sent to TN1 & TN2 Input1 is called/sent SMS to TN1 &... -
Page 21: Table 13: Main, Batt Parameters
11.2.6 MAIN and BATT parameter ZEUS4-VD can send an SMS message in case of the main power failure. SMS message is sent to user. You can also program how long the unit can stay without power before sending this message. -
Page 22: Table 15: Os Parameters
11.2.7 OS parameters ZEUS4-VD device has 4 open collector outputs and each of them can be programmed in a different way: as a bi-stable or mono-stable (pulse) output. The programming time is in seconds and can be set from 2-9999 seconds. -
Page 23: Table 17: Od Parameters
Listen in indication OD11 CID transfer error Table 17: OD parameters Example: Direct programming on the SIM card ZEUS4-VD PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description Alarm on IN1 trigger output 1 No direct connection between input2 and output... -
Page 24: Table 19: It, Ar And Ib Parameters
Time interval on input 2 Max number of alarm events on input 2 3600 System block time on input 2 Table 20: IT, AR and IB parameters example Remote programming by SMS ;IT1=125;AR1=10;IB1=600; IT2=720;AR2=5;IB2=3600; Arm/disarm events on ZEUS4-VD resets bypass function. NOTE... -
Page 25: Table 21: Alarm Sms Formatting
ZEUS4-VD INSTALLATION MANUAL 11.2.10 Alarm SMS reporting The default message text is English, but it is possible to change language with LNG parameter. In addition user can customize a short SMS message text for each alarm input. Each message is built from 3 parts and user can write the first (User Location) and the second (alarm event) part of the message. -
Page 26: Table 22: Zeus4-Vd Dtmf Commands
INSTALLATION MANUAL 11.2.11 DTMF REMOTE COMMANDS When ZEUS4-VD enters VOICE call user has the option to control device via DTMF command. By default this DTMF control is limited to canceling the ongoing and all next call. The user receives a confirmation of most DTMF commands via DTMF feedback pattern 1 or 3 beeps. -
Page 27: Advanced Clip Function
ZEUS4-VD supports advanced CLIP (Calling Line Identification Presentation) function with confirmation. Benefit of this CLIP function is that it that the user can control the different function on ZEUS4-VD without any costs and receives a confirmation that the CLIP has been acknowledged. -
Page 28: Clip Function
Clip function will with ALL numbers calling ZEUS4-VD 11.4.2 CLPOU parameter Parameter is used to define which output should ZEUS4-VD trigger if the number called the device is on the CLP list Trigger one of the ZEUS4-VD Outputs (parameter 1-4) 11.4.3... -
Page 29: Table 25: Clip Parameters
CLIP Telephone number for 1st user CLP10 CLIP Telephone number for 10th user Table 25: CLIP parameters Example: Direct programming on the SIM card ZEUS4-VD PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description CLPEN Enable simple CLIP function... -
Page 30: Prepaid Card Credit And Validity Information
INSTALLATION MANUAL 11.5 PREPAID CARD CREDIT AND VALIDITY INFORMATION ZEUS4-VD can be used with prepaid SIM cards and its limitations. To be able to overcome this limitation of the prepaid SIM cards, ZEUS4-VD offers the possibility of automatic checking mechanism for credit and time expiration. -
Page 31: Table 27: Credit Checking Parameters
String for parsing replay message from CC2 number CTIM String for parsing replay message from CC3 number Table 27: Credit checking parameters Example: Direct programming on the SIM card ZEUS4-VD PROGRAMMING TABLE SIM CARD PHONE BOOK Name Number Description *448# Si.mobil... -
Page 32: Set-Up Parameters
TSTT parameter TSTT parameter is used to define reference point for sending test message. If this parameter is set than after restart of the ZEUS4-VD first test SMS will be send out at time defined with TSTT parameter. Parameter value is defined in hours. - Page 33 More information about national MCC/MNC codes can be acquired at: http://en.wikipedia.org/wiki/Mobile_Network_Code 11.6.7 AUD parameter AUD parameter enables you to change between different audio modes on ZEUS4-VD device. AUD = 0 - Optimized for “voice data” transfer AUD = 1 - Optimized for plain audio call 11.6.8...
- Page 34 5 - German 6 - Spanish 11.6.15 LED parameter LED parameter enables you to turn indication LEDs on ZEUS4-VD ON or OFF (0 – led OFF, 1 – led ON) 11.6.16 BIDI parameter BIDI is a special parameter used to change multiple settings in one step. Used for special purposes.
-
Page 35: Table 29: Set-Up Parameters
INSTALLATION MANUAL 11.6.19 REG parameter REG parameter is used to define time out (in seconds) for how long may ZEUS4-VD drop out of registration before GSM module will be restarted. This is a very useful function in unstable GSM networks. -
Page 36: Table 30: Set-Up Parameters Example
Speaker sound level 24 hours periodic test SMS TSTT First SMS will be send out at 12.00 GSM module will be restarted if ZEUS4-VD is 60s out of the GSM registration. Table 30: Set-up parameters example Remote programming by SMS ;CRE=2;HTN=0;MFN=29340;LNG=1;MIC1=15;SPK=8;... -
Page 37: Contact Id Event Reporting
ZEUS4-VD INSTALLATION MANUAL 11.7 CONTACT ID EVENT REPORTING ZEUS4-VD is capable to send all of its events in Contact ID form to CMS. Next parameters are used to support this function. 11.7.1 CID parameter CID parameter is used to enable/disable this function. -
Page 38: Event Log Parameters
ZEUS4-VD INSTALLATION MANUAL 11.8 EVENT LOG PARAMETERS ZEUS4-VD has a small set of parameters to manage log memory. 11.8.1 LOGN parameter LOGN parameter is used to define the number of log events that will be send out in case of PLOG command 11.8.2... -
Page 39: Print-Out Of The Parameters
INSTALLATION MANUAL 12 PRINT-OUT OF THE PARAMETERS 12.1 RECEIVE ALL PARAMETERS (PALL) By sending this command to ZEUS4-VD you receive messages with all parameters that are currently programmed in the unit. Send: ;PALL; 12.2 RECEIVE TELEPHONE NUMBERS (PTN) By sending this command to ZEUS4-VD you receive SMS message with all currently programmed telephone numbers (TN1 –... -
Page 40: Receive Credit Check Parse String Param. (Pcref)
(CREF, CTIM and CVODA) . Send: ;PCREF; 12.10 RECEIVE CREDIT STATUS FOR CC1 (PCC1) By sending this command to ZEUS4-VD you receive SMS message with current credit status and SMS received from the GSM provider. Send: ;PCC1;... -
Page 41: Receive The Power Level On The Unit (Ppwr)
12.18 RECEIVE THE POWER LEVEL ON THE UNIT (PPWR) By sending this command to ZEUS4-VD you receive SMS message with current main power level in volts or current battery voltage when the unit runs on the backup battery. Send: ;PPWR;... -
Page 42: System Commands
INSTALLATION MANUAL 13 SYSTEM COMMANDS Next system commands are used to help the user to control the operation of ZEUS4-VD device. 13.1 FACTORY DEFAULT COMMAND (SDCLR) SDCLR command is used to delete all parameters and SMS on SIM card. After delete process is completed the system will be restarted. -
Page 43: Checking And Changing System Status (On/Off)
INSTALLATION MANUAL 14 CHECKING AND CHANGING SYSTEM STATUS (ON/OFF) 14.1 CHECKING SYSTEM STATUS BY SMS COMMAND By sending this command to ZEUS4-VD you receive SMS message with state of the system: ;SYS; Return SMS can be: ;SYS= ON; System is ON (active inputs) ... -
Page 44: Checking The Input Status
15 CHECKING THE INPUT STATUS User can check input status with the use of SMS command. 15.1 CHECKING INPUT STATUS BY SMS COMMAND By sending this command to ZEUS4-VD you receive SMS message with all Input status: ;INS; Return SMS message is: ... -
Page 45: Checking And Changing Output Status
16 CHECKING AND CHANGING OUTPUT STATUS User can manage outputs with the use of SMS command. 16.1 CHECKING OUTPUT STATUS BY SMS COMMAND By sending this command to ZEUS4-VD you receive SMS message with all Output status: ;PORC; Return SMS message is: ... -
Page 46: Changing Parameters Using The Sms Command
CRE and would like to receive confirmation SMS, try next example: ;+TN1=+38640713470;IN1=1;IN2=1;OS3=15;ID1=120;LN1=1;CRE=4; Send SMS message to ZEUS4-VD telephone number and in a few seconds you receive SMS message from ZEUS4-VD. The sentence of the SMS must be the same as the one you have sent to ZEUS4-VD before. -
Page 47: Configuration Examples
With these configuration alarm notification will be send to TN1 (voice and SMS), TN2 (only SMS) and TN3 (only voice). 18.2 CID EVENT REPORTING This example represents how to enable CID function for ZEUS4-VD event reporting. The data will be sending to 1 CMS. ;CID=1;CIN=15;COUT=12;TN11=042340880;... -
Page 48: Technical Specifications
Alarm outputs (open collector) ON/OFF input 12V DC Power Supply output Backup battery input No. of alarm SMS per unit No. of prerecorded messages Programmed telephone numbers Anti-tamper protection CLIP numbers Event log buffer 1000 Table 37: ZEUS4-VD - Technical specifications... -
Page 49: Default Settings On Zeus4-Vd
ZEUS4-VD INSTALLATION MANUAL 20 DEFAULT SETTINGS ON ZEUS4-VD ZEUS4-VD PROGRAMMING TABLE Name Default Value Short Description Telephone number 1 Empty Telephone number 2 Empty Empty Telephone number 3 Empty Telephone number 4 Empty Telephone number 5 Telephone number 6 Empty... - Page 50 ZEUS4-VD INSTALLATION MANUAL ZEUS4-VD PROGRAMMING TABLE Name Default Value Short Description Input 2 delay filter on input Input 3 delay filter on input Input 4 delay filter on input System ON/OFF delay filter input Input 1 delay before dialing Input 2 delay before dialing...
-
Page 51: Table 38: Zeus4-Vd - Default Settings
Parse text( contact support ) SIM card starting position CLPEN Enable CLIP functionality CLPI Precondition for CLIP function CLPOU Control output pin when CLIP event CLP1 Empty CLIP number 1 CLP10 Empty CLIP number 10 Table 38: ZEUS4-VD - Default settings. -
Page 52: Contacts
ZEUS4-VD INSTALLATION MANUAL 21 CONTACTS MARS COMMERCE d.o.o. MIRKA VADNOVA 19 SI-4000 KRANJ SLOVENIA TEL: +386 4 280 74 00 E-MAIL: info@mars-commerce.si WEB SITE: www.mars-commerce.com SALES E-MAIL: sales@mars-commerce.com...
