MCTRL660 PRO Independent Controller

User Manual

Note:

When the color depth of input source is 8-bit, the individual Gamma adjustment for

RGB is realized by AXs (V2.0) series receiving card.

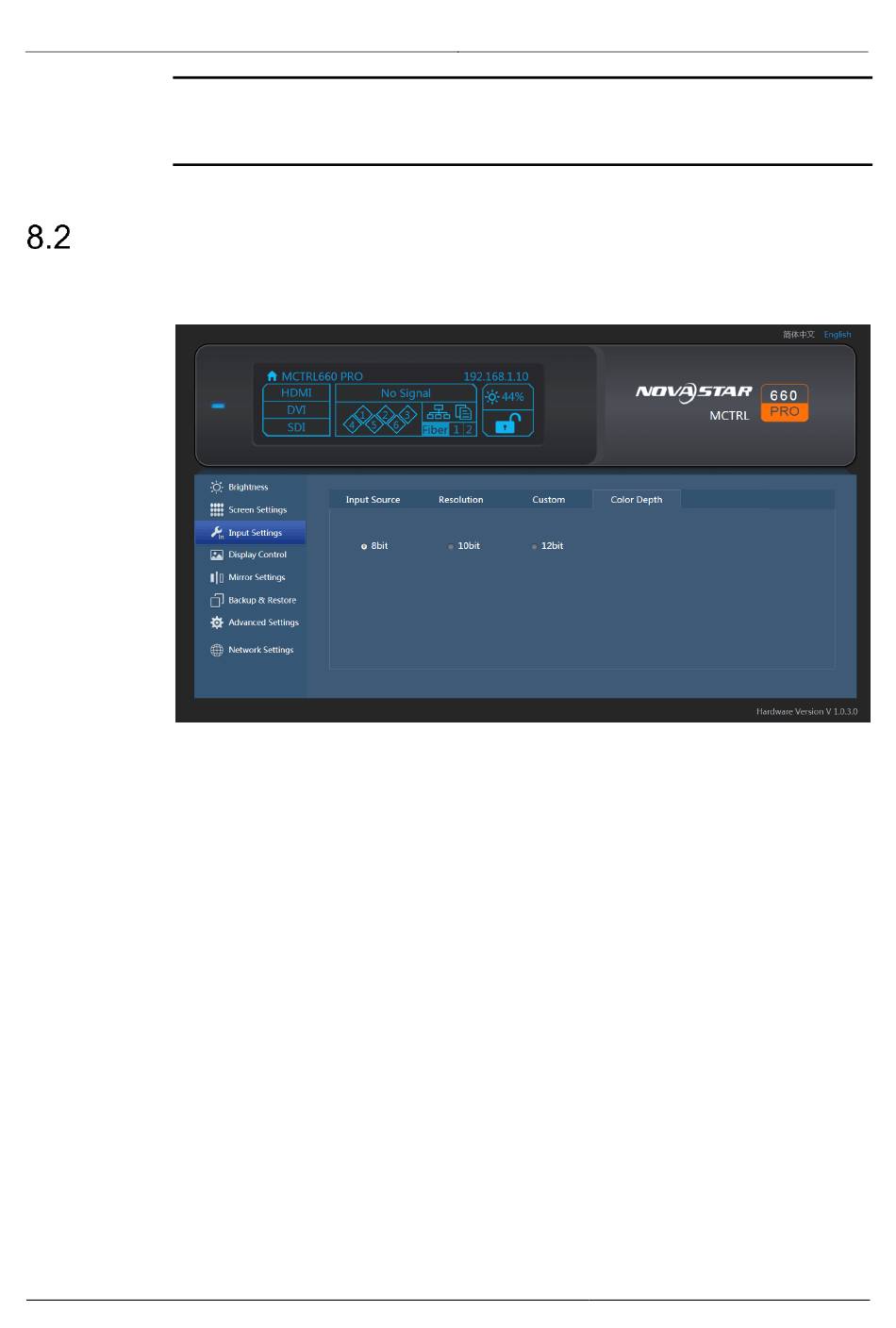

Operations on Web Page

The MCTRL660 PRO supports screen configuration on web page, allowing for more

convenient screen configuration.

Note:

Operations that cannot be done on web page: loading RCFG files, presettings, inputs

backup, system settings, communication mode settings, and working mode settings.

Step 1 Connect the MCTRL660 PRO to PC (or mobile device).

Step 2 Set the PC (or mobile device) and the MCTRL660 PRO on the same LAN.

Step 3 Obtain the IP address of the MCTRL660 PRO.

Step 4 On the browser, enter the IP address to enter the operation page.

Note: .Google Chrome is recommended. (Safari browser can also be used on iOS.)



www.novastar.tech

Scenario 1: MCTRL660 PRO connected to PC Via Ethernet cable

−

Scenario 2: MCTRL660 PRO connected to PC (or mobile device) via router

−

to the same LAN

Scenario 1: MCTRL660 PRO connected to PC via Ethernet cable

8 Operations on PC
