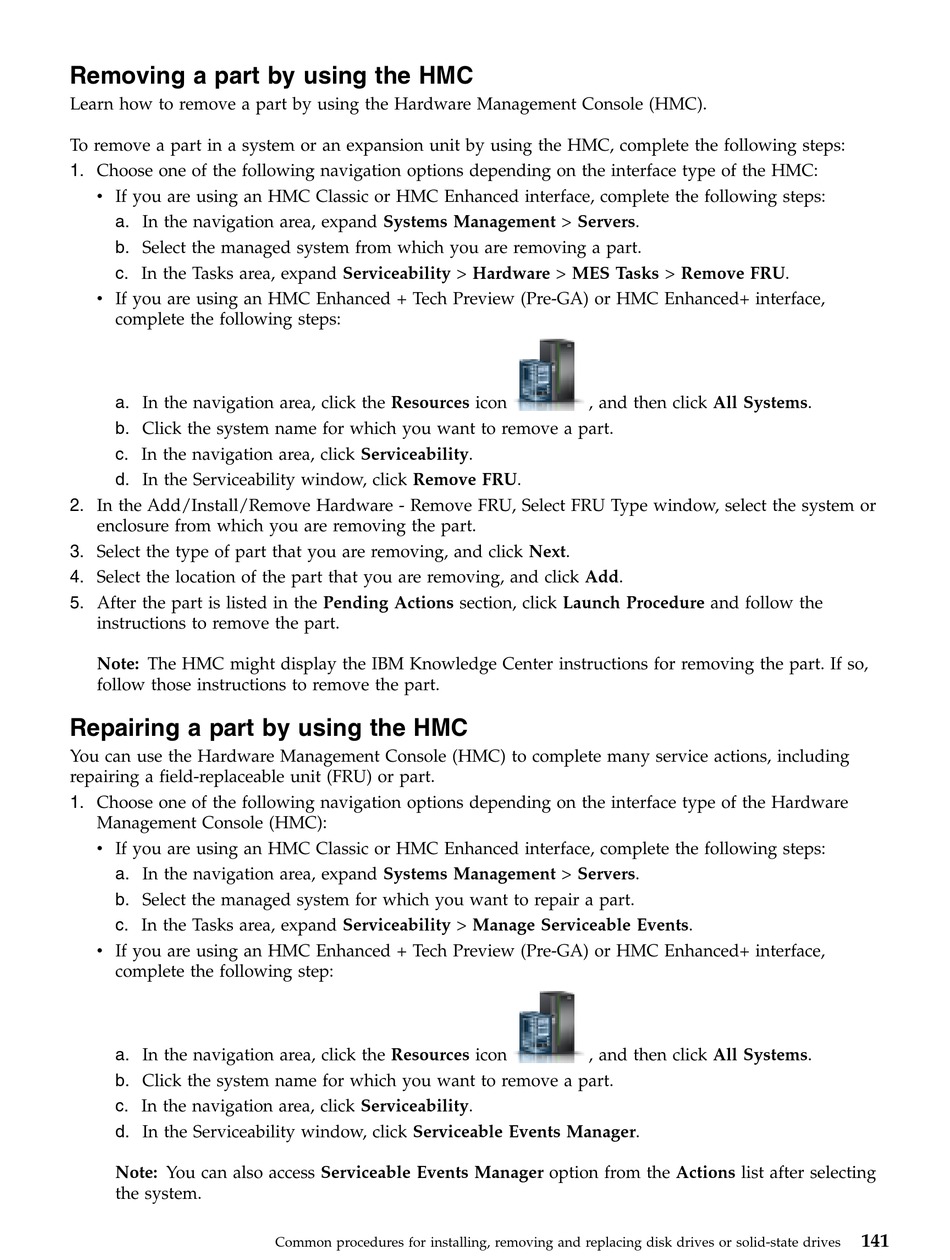

Removing a part by using the HMC

Learn how to remove a part by using the Hardware Management Console (HMC).
To remove a part in a system or an expansion unit by using the HMC, complete the following steps:
1. Choose one of the following navigation options depending on the interface type of the HMC:
v If you are using an HMC Classic or HMC Enhanced interface, complete the following steps:
a. In the navigation area, expand Systems Management > Servers.
b. Select the managed system from which you are removing a part.
c. In the Tasks area, expand Serviceability > Hardware > MES Tasks > Remove FRU.
v If you are using an HMC Enhanced + Tech Preview (Pre-GA) or HMC Enhanced+ interface,
complete the following steps:
a. In the navigation area, click the Resources icon
b. Click the system name for which you want to remove a part.
c. In the navigation area, click Serviceability.
d. In the Serviceability window, click Remove FRU.
2. In the Add/Install/Remove Hardware - Remove FRU, Select FRU Type window, select the system or
enclosure from which you are removing the part.
3. Select the type of part that you are removing, and click Next.
4. Select the location of the part that you are removing, and click Add.
5. After the part is listed in the Pending Actions section, click Launch Procedure and follow the
instructions to remove the part.
Note: The HMC might display the IBM Knowledge Center instructions for removing the part. If so,
follow those instructions to remove the part.

Repairing a part by using the HMC

You can use the Hardware Management Console (HMC) to complete many service actions, including
repairing a field-replaceable unit (FRU) or part.
1. Choose one of the following navigation options depending on the interface type of the Hardware
Management Console (HMC):
v If you are using an HMC Classic or HMC Enhanced interface, complete the following steps:
a. In the navigation area, expand Systems Management > Servers.
b. Select the managed system for which you want to repair a part.
c. In the Tasks area, expand Serviceability > Manage Serviceable Events.
v If you are using an HMC Enhanced + Tech Preview (Pre-GA) or HMC Enhanced+ interface,
complete the following step:
a. In the navigation area, click the Resources icon
b. Click the system name for which you want to remove a part.
c. In the navigation area, click Serviceability.
d. In the Serviceability window, click Serviceable Events Manager.
Note: You can also access Serviceable Events Manager option from the Actions list after selecting
the system.
Common procedures for installing, removing and replacing disk drives or solid-state drives
, and then click All Systems.
, and then click All Systems.
