Disk drive or solid-state drive locations and service indicators

Find out where the disk drives or solid-state drives (SSDs) and service indicators are on the system or
disk drive enclosure.
Learn about the disk drives or SSD locations and the location of the service indicators on the system or
enclosure. If you are using logical partitions, go to Partitioning the server (http://www.ibm.com/
support/knowledgecenter/POWER8/p8hat/p8hat_kickoff.htm) for more information.
Disk drive locations and service indicators for the 5148-21L, 5148-22L, 8247-21L,
8247-22L, 8284-21A, or 8284-22A system
Learn about the disk drive locations and understand where the service indicators are located for your
system.

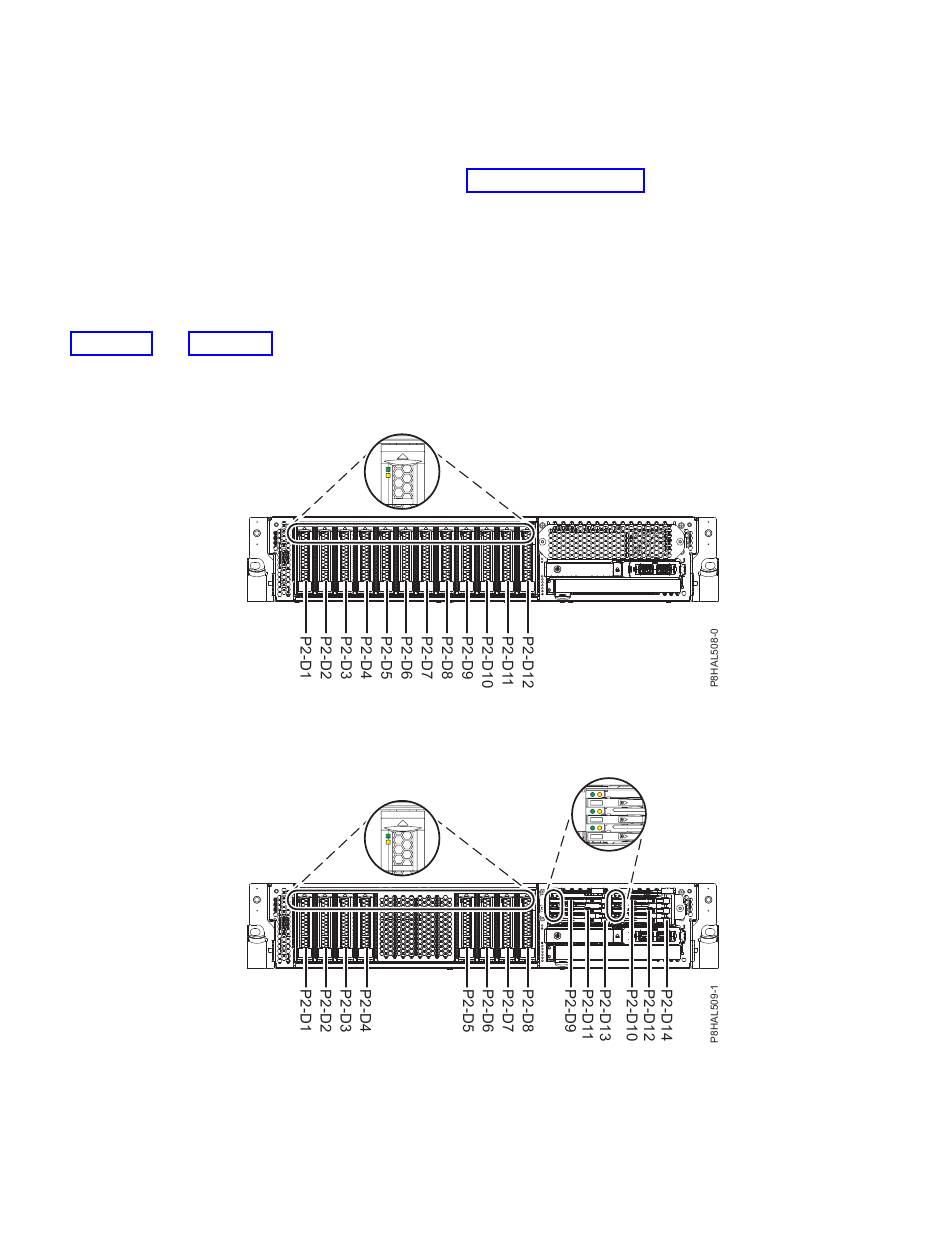

Figure 104 and Figure 105 show the disk drive and solid-state drive locations and service indicators for
the 5148-21L, 5148-22L, 8247-21L, 8247-22L, 8284-21A, or 8284-22A system. Service indicators are located
above the latch handle on the disk drives.
Figure 104. Disk drive and service indicator locations for a base function 5148-21L, 5148-22L, 8247-21L, 8247-22L,
8284-21A, or 8284-22A system
Figure 105. Disk drive, solid-state drive, and service indicator locations for an expanded function 5148-21L, 5148-22L,
8247-21L, 8247-22L, 8284-21A, or 8284-22A system

Disk drive locations and service indicators for the 5887 disk drive enclosure

Learn about the disk drive locations and where the service indicators are located for the 5887 disk drive
enclosure.
