Attention:
v Attach an electrostatic discharge (ESD) wrist strap to the front ESD jack, to the rear ESD jack, or to
an unpainted metal surface of your hardware to prevent the electrostatic discharge from damaging
your hardware.
v When you use an ESD wrist strap, follow all electrical safety procedures. An ESD wrist strap is
used for static control. It does not increase or decrease your risk of receiving electric shock when
using or working on electrical equipment.
v If you do not have an ESD wrist strap, just prior to removing the product from ESD packaging and
installing or replacing hardware, touch an unpainted metal surface of the system for a minimum of
5 seconds. If at any point in this service process you move away from the system, it is important to
once again discharge yourself by touching an unpainted metal surface for at least 5 seconds before
you continue with the service process.
3. Remove the drive from the static-protective package and place it on an ESD mat.
4. Identify the part and the system that you want to service. The disk drive and SSD slots are in the
front of a system. More SSD slots are also available in an expanded function system.

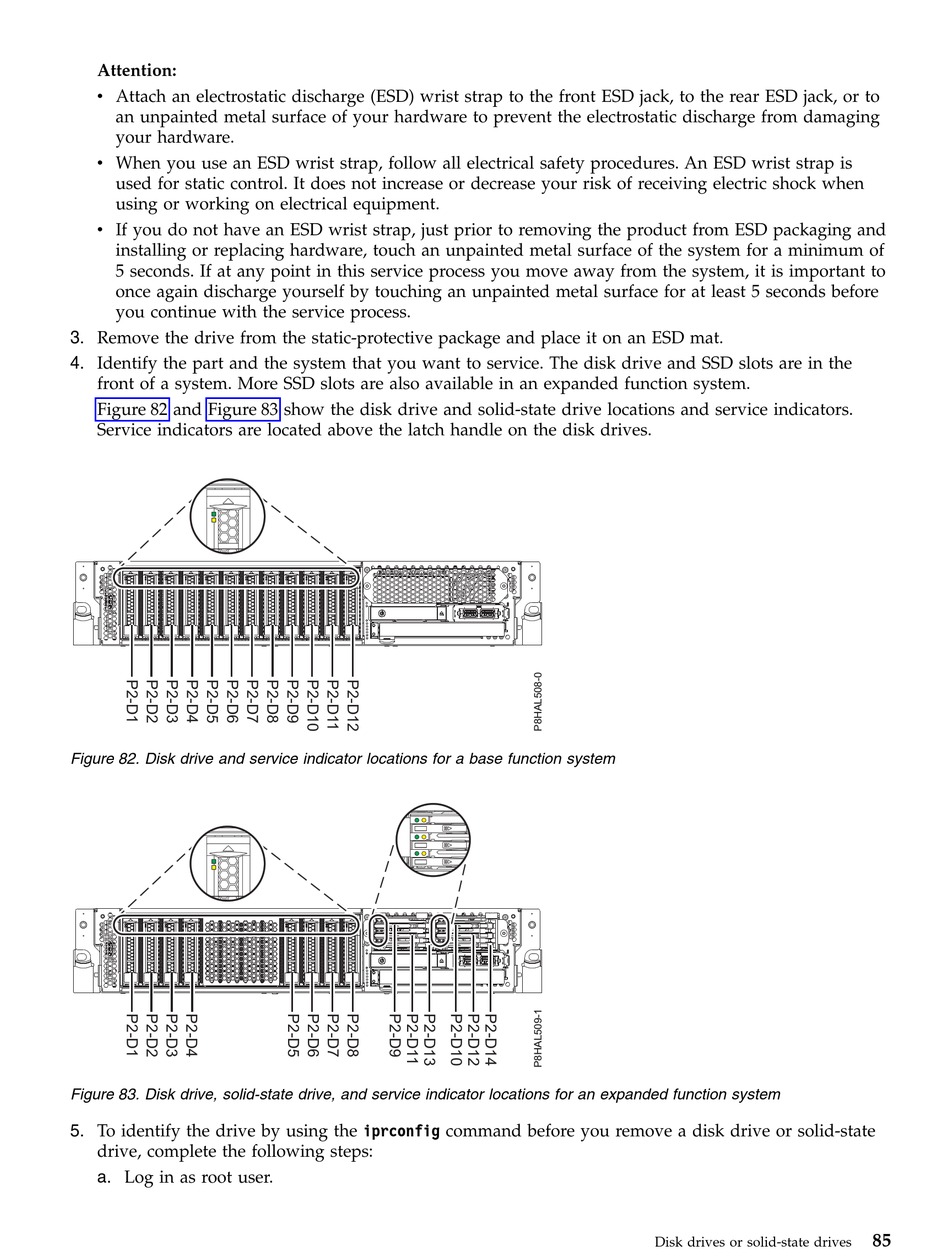

Figure 82 and Figure 83 show the disk drive and solid-state drive locations and service indicators.
Service indicators are located above the latch handle on the disk drives.
Figure 82. Disk drive and service indicator locations for a base function system
Figure 83. Disk drive, solid-state drive, and service indicator locations for an expanded function system
5. To identify the drive by using the iprconfig command before you remove a disk drive or solid-state
drive, complete the following steps:
a. Log in as root user.
Disk drives or solid-state drives
85
