A

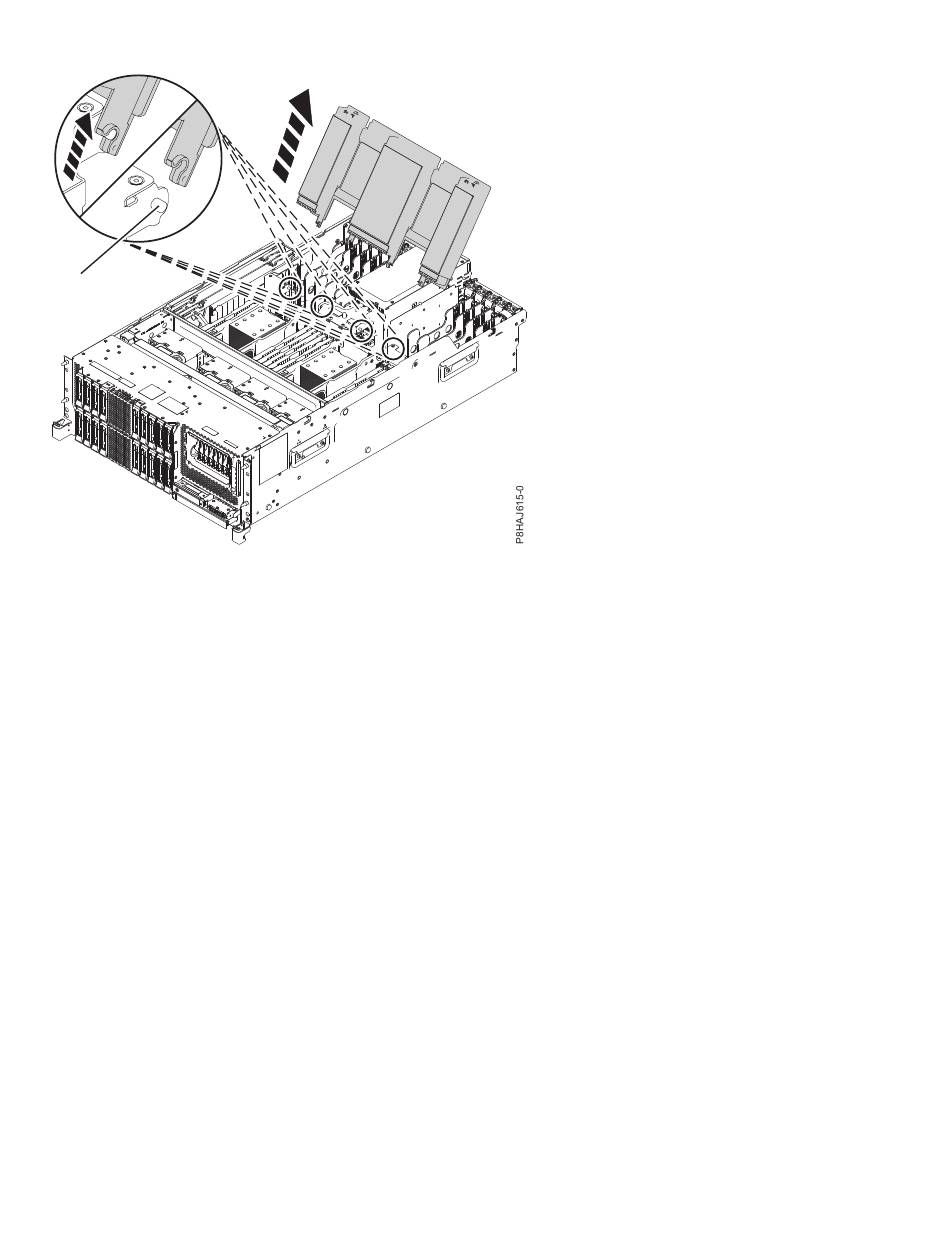

Figure 150. Removing the air baffle
Replacing the air baffle on an 8247-42L, 8286-41A, or 8286-42A system
Use this procedure to replace the air baffle on an 8247-42L, 8286-41A, or 8286-42A system.
To replace the air baffle, complete the following steps:
1. Ensure that you have the electrostatic discharge (ESD) wrist strap attached. If not, attach it now.
2. Push the air baffle toward the chassis.
3. Fix the air baffle to the chassis by pushing the clasp onto the chassis (A) until it locks into place.
166
