Front View
Top View
F
H I

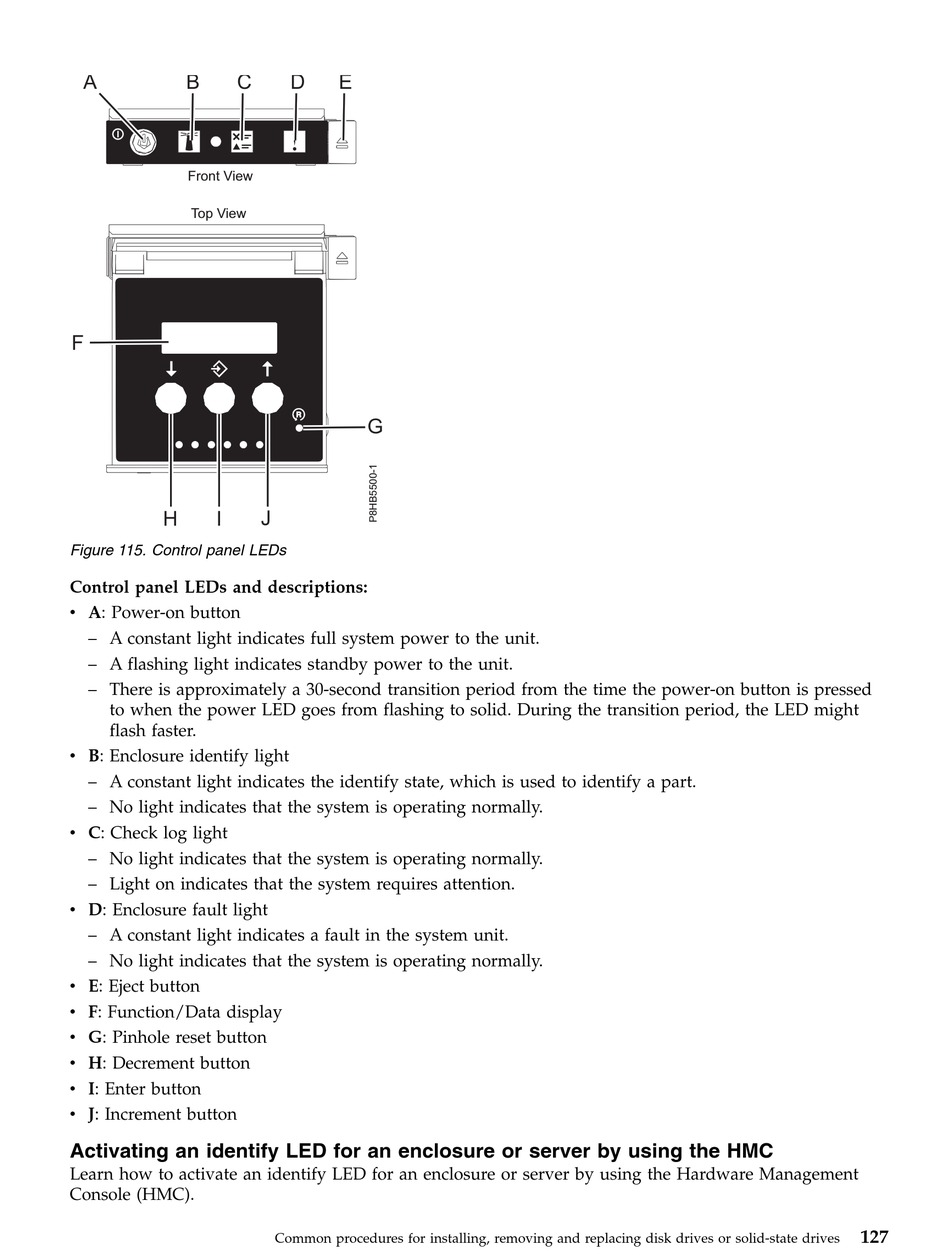

Figure 115. Control panel LEDs
Control panel LEDs and descriptions:
v A: Power-on button
– A constant light indicates full system power to the unit.
– A flashing light indicates standby power to the unit.
– There is approximately a 30-second transition period from the time the power-on button is pressed
to when the power LED goes from flashing to solid. During the transition period, the LED might
flash faster.
v B: Enclosure identify light
– A constant light indicates the identify state, which is used to identify a part.
– No light indicates that the system is operating normally.
v C: Check log light
– No light indicates that the system is operating normally.
– Light on indicates that the system requires attention.
v D: Enclosure fault light
– A constant light indicates a fault in the system unit.
– No light indicates that the system is operating normally.
v E: Eject button
v F: Function/Data display
v G: Pinhole reset button
v H: Decrement button
v I: Enter button
v J: Increment button

Activating an identify LED for an enclosure or server by using the HMC

Learn how to activate an identify LED for an enclosure or server by using the Hardware Management
Console (HMC).
