- Page 1 Biotage PRESSURE+ 48 ® User Manual...
-
Page 2: Table Of Contents
Installation Site Requirements Unpack and Install System Description Load the Columns Flow Control Operation Step-by-Step Instructions Maintenance Replace the Sealing Gasket Clean General Information Consumables and Accessories Manufacturer Contact Us Biotage PRESSURE+ 48 User Manual | © Biotage 2017 ®... -
Page 3: Safety
Safety Safety Intended Use Equipment Safety Standards Biotage PRESSURE+ 48 is intended for laboratory use only and PRESSURE+ 48 and its instruction materials are certified by has to be operated by trained professionals. All operations must Biotage to comply with: be performed: »... -
Page 4: Installation
Installation Site Requirements Unpack and Install The PRESSURE+ 48 unit should be placed in a laboratory and Warning operated where there is proper ventilation or from inside a • The total weight of the package including the unit is 22 kg chemical fume hood when volatile solvents are used. - Page 5 PRESSURE+ 48 SPE Column Rack 6 mL PPM-A48-1275 PRESSURE+ 48 Collection Rack 12 x 75 mm PPM-A48-13100 PRESSURE+ 48 Collection Rack 13 x 100 mm PPM-A48-16100 PRESSURE+ 48 Collection Rack 16 x 100 mm PPM-A48-1232 PRESSURE+ 48 Sample Vial Rack 12 x 32 mm...
-
Page 6: System Description

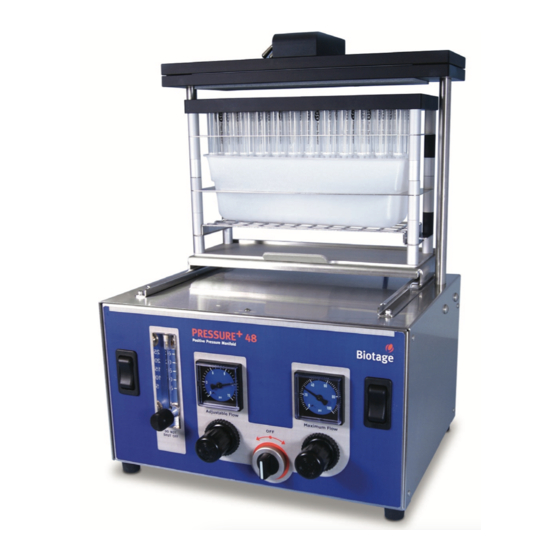

System Description System Description PRESSURE+ 48 is a positive pressure manifold designed to process SPE columns using a pressurized gas source. Load the Columns PRESSURE+ 48 units are compatible with all commonly used 1 mL, 3 mL and 6 mL tabless columns used for sample preparation. -
Page 7: Flow Control
Flow Control » Maximum Flow Rate (0 to 100 psi) The PRESSURE+ 48 unit has a two-tier gas delivery system. The flow control switch (B) enables setting and operation of gas Recommended for column washing, drying, etc. By turning the flow control switch (B) to the right to the... -
Page 8: Operation
14. Lower the manifold by pressing down on the two rocker manifold when it is moving. • Only use racks and waste bin inserts supplied by Biotage and switches simultaneously for approximately 3 seconds. ensure to stack the racks properly on the platform to avoid 15. - Page 9 Operation...
-
Page 10: Maintenance
You need a sealing gasket with 48 positions and a hex key (PPM-A48-GSKT). In order to maintain compliance, only sealing gaskets supplied by Biotage must be used with the unit. 1. Shut off the external gas supply. 2. Ensure that at least one gas switch on top of the manifold is in the ON position. -
Page 11: General Information
General Information General Information Consumables and Accessories Contact Us Biotage Sweden AB To order consumables and accessories, see contact information on the back of this document or visit our website www.biotage.com. Box 8 SE-751 03 Uppsala Part Number Description SWEDEN... - Page 12 Part Number: 413247-C © 2017 Biotage. All rights reserved. No material may be reproduced or published without the written permission of Biotage. Information in this document is subject to change without notice and does not represent any commitment from Biotage. E&OE.
