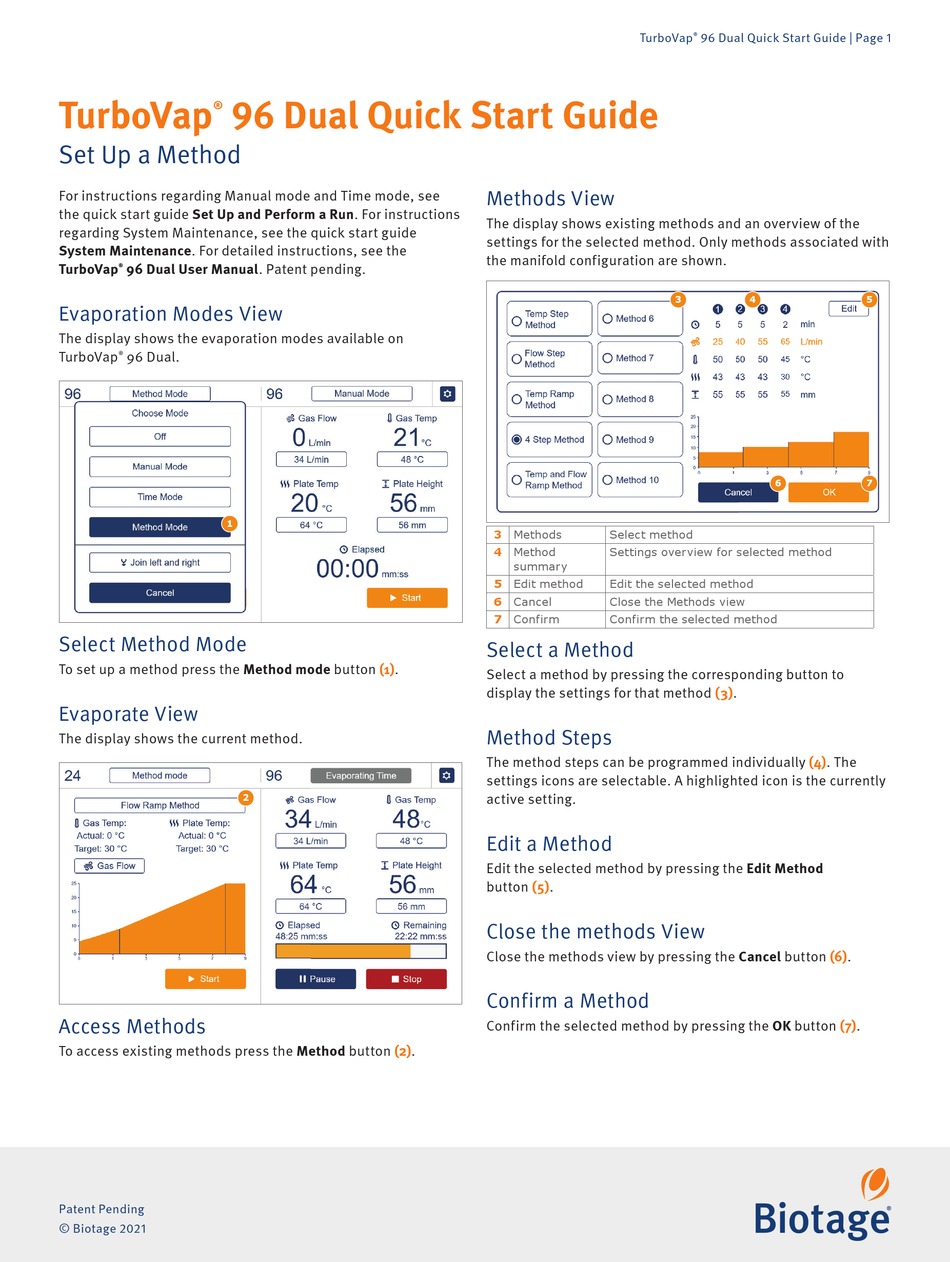

TurboVap 96 Dual Quick Start Guide
®
Set Up a Method
For instructions regarding Manual mode and Time mode, see
the quick start guide Set Up and Perform a Run. For instructions
regarding System Maintenance, see the quick start guide
System Maintenance. For detailed instructions, see the
TurboVap 96 Dual User Manual. Patent pending.
®
Evaporation Modes View
The display shows the evaporation modes available on
TurboVap 96 Dual.
®
1
Select Method Mode
To set up a method press the Method mode button (1).
Evaporate View
The display shows the current method.
Access Methods
To access existing methods press the Method button (2).
Patent Pending
© Biotage 2021
2
TurboVap
Methods View
The display shows existing methods and an overview of the
settings for the selected method. Only methods associated with
the manifold configuration are shown.
3
Methods Select method
4 Method Settings overview for selected method
summary
5 Edit method Edit the selected method
6
Cancel Close the Methods view
7 Confirm Confirm the selected method
Select a Method
Select a method by pressing the corresponding button to
display the settings for that method (3).
Method Steps
The method steps can be programmed individually (4). The
settings icons are selectable. A highlighted icon is the currently
active setting.
Edit a Method
Edit the selected method by pressing the Edit Method
button (5).
Close the methods View
Close the methods view by pressing the Cancel button (6).
Confirm a Method
Confirm the selected method by pressing the OK button (7).
