Biotage TurboVap 96 Dual Quick Start Manual

TurboVap 96 Dual Quick Start Guide
®

System Maintenance

For instructions regarding Manual mode, Time mode, and
software settings see the quick start guide Set Up and Perform
a Run. For instructions regarding Method mode, see the quick
start guide Set up a Method. For detailed instructions, see the
TurboVap 96 Dual User Manual. Patent pending.
®

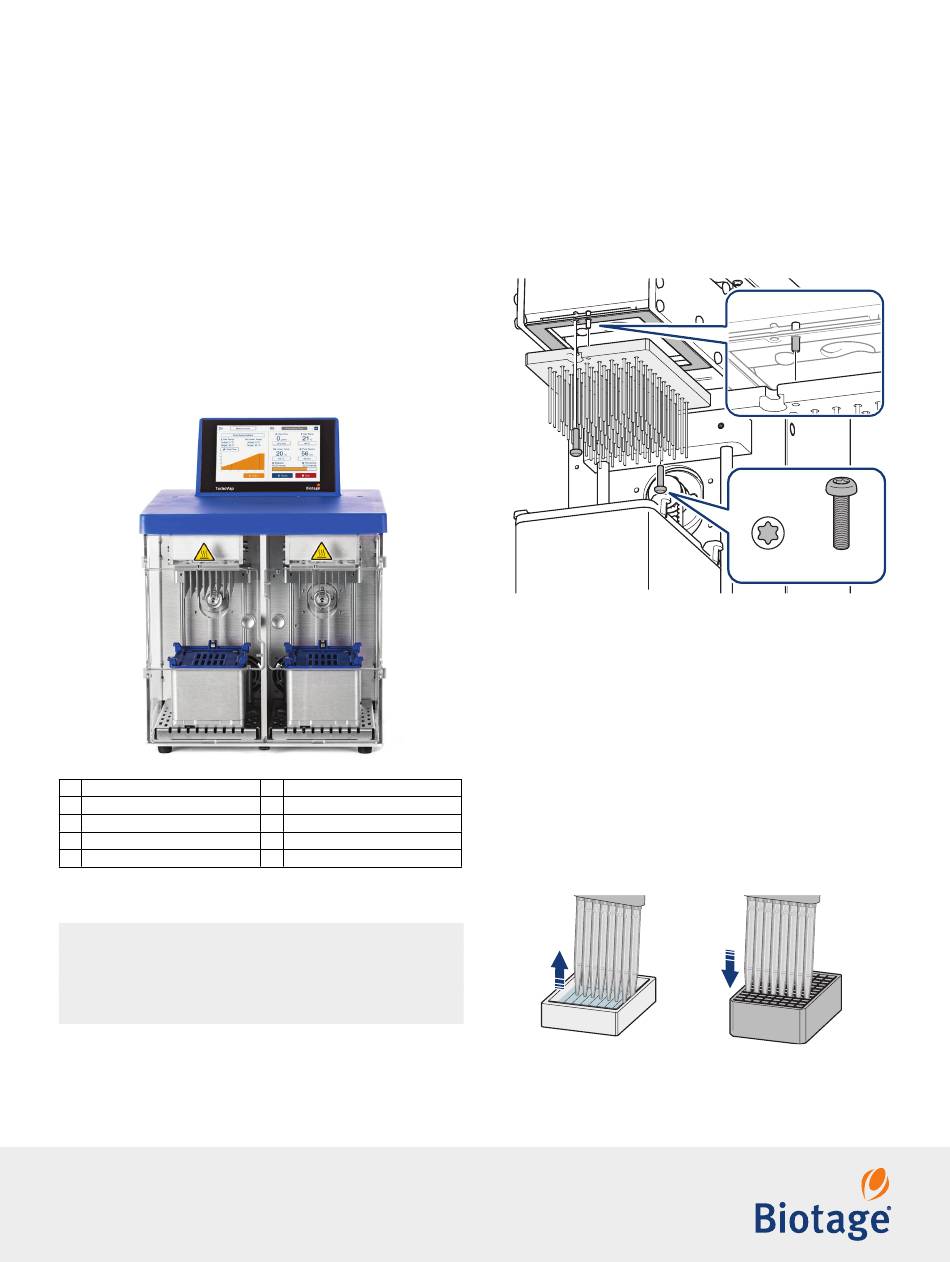

Instrument Overview

There are three different manifolds configurations available for
the system; 24, 48, and 96 gas nozzles. The well plate or rack
must be compatible with the installed manifold.
A A
B B
C C
D D
E E
F F

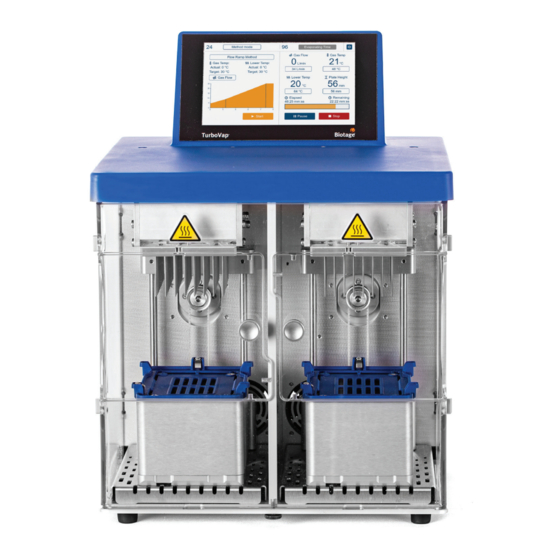

A Touch screen
B LED lights
C Gas heater
D
Manifold
E Plate heater

Replace the Manifolds

Warning
»
The nozzles may have come into contact with harmful sample
residues. Avoid contact.
»
Always turn off the system, unplug the power cord, and let the
system cool down before performing maintenance.
Patent Pending
© Biotage 2021
G G
H H
I I
F Lift
G Sensor
H Doors
I
Fume shield set screw
TurboVap
»
Do not touch the inside of the gas heater. Touching may
leave residues that can contaminate the following runs.
»
Ensure that the screws are tightened by hand using the Torx
T20 key (P/N 411886).
1. Loosen the fume shield set screw and remove the fume
shield.
2. Replace the manifold.

Clean the Manifolds

Both methods require a well collection plate, 2 mL or larger, that
fits the manifold that is to be cleaned.
After the manifold is cleaned, ensure that the nozzles are dry
before initiating an evaporation run. Either wait until they
are dry, or do a run with an empty cabinet and unheated gas.
(25°C/77°F)
1. Fill the collection plate with an appropriate solvent. The
solvent is dictated by analyte solubility:
96 Dual Quick Start Guide | Page 1
®
TX20 ×2
