Summary of Contents for Biotage V-10 Touch

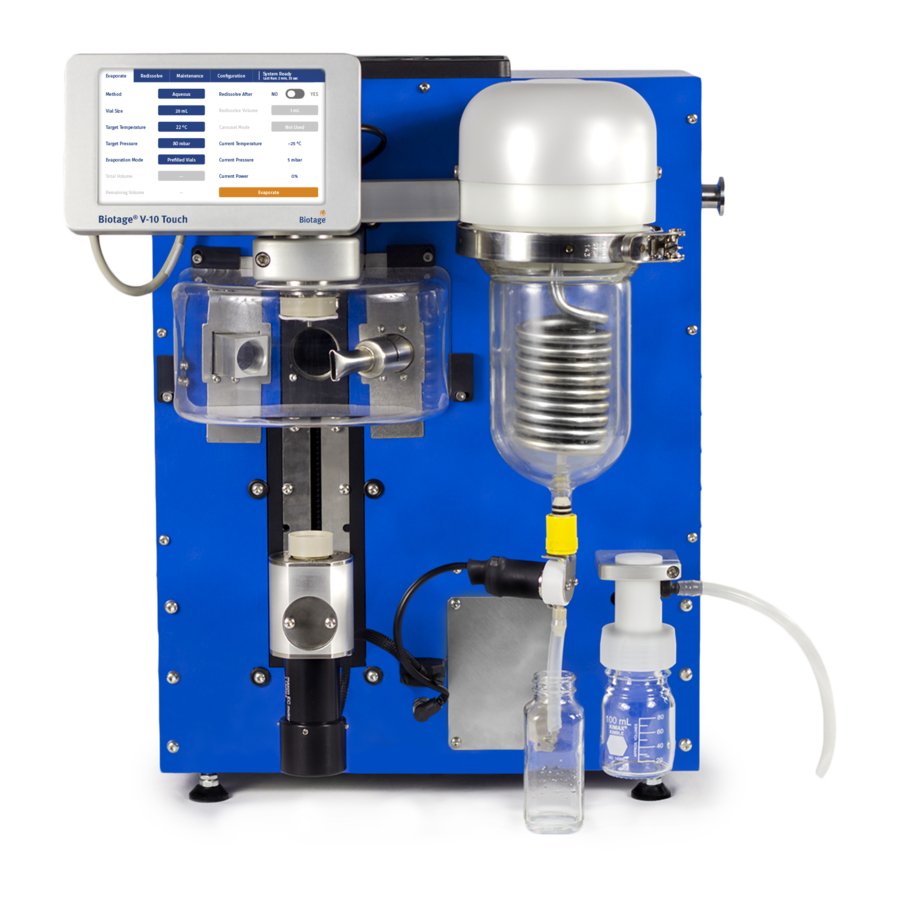

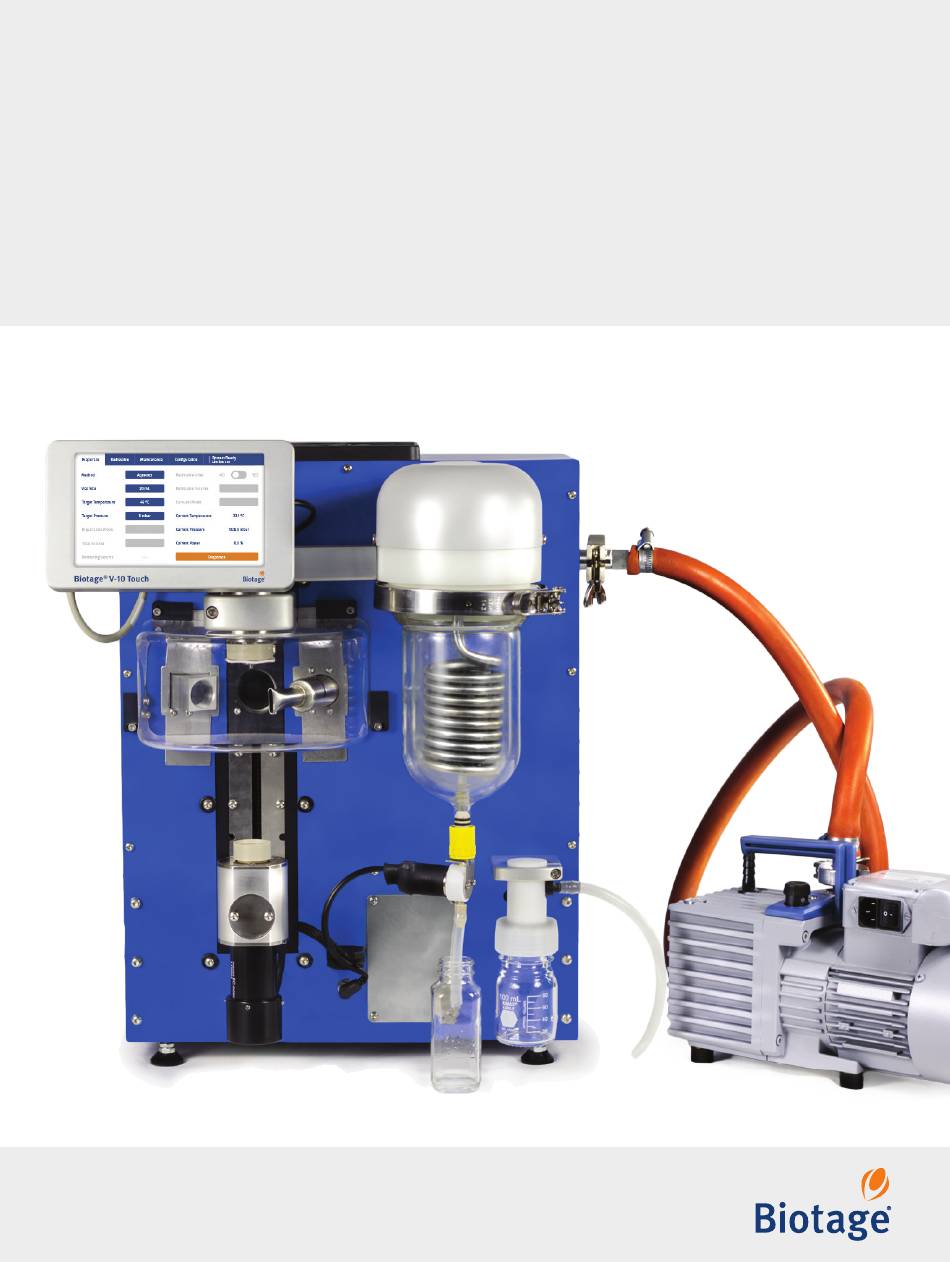

- Page 1 Biotage V-10 Touch ® Installation and Safety...
-
Page 2: Table Of Contents
Intended Use Education, Training, and Competence Warranty and Liability Service Labels Safety Requirements WEEE Compliance Statement Safety in Other Languages General Information Accessories and Spare Parts Manufacturer Contact Us Biotage V-10 Touch Installation and Safety | © Biotage 2019 ®... -
Page 3: Biotage V-10 Touch
Warning Site Requirements » The system must be unpacked and installed by an authorized Before the system is installed by an authorized Biotage service Biotage service engineer. engineer, the installation site should be prepared as follows: » Follow regional safety practices when handling and moving shipping boxes and containers, and when moving the system. -
Page 4: Move The System
Note: When the system is equipped with a carousel, do not laboratories in the same building, follow the instructions below. lift holding the carousel unit. If you need to ship the system, please contact Biotage 1-Point ® 10. Move the equipment to the new location. -
Page 5: Connections
The system must be electrically grounded (earthed). Use Boil, High Boil, and Mixed Vol & HBP). only a power cord supplied by Biotage. The plug should only be connected to a grounded outlet as per local and national Connect the external vacuum pump to the system using a KF-16 regulations. -
Page 6: Connect An External Computer Running Biotage
Install Biotage V-10 Touch Control Centre ® V-10 Touch Control Centre runs on Windows 7, 8, 8.1, and 10. Double-click the V-10 Touch Control Centre installer file and follow the instructions that appear in the installation wizard. To get the installer file, please contact Biotage 1-Point Support. -
Page 7: Connect A Liquid Handler (Gilson Gx-271)
» The liquid handler must be unpacked and installed by an Vial Sizes 30 mL scintillation vial authorized Biotage service engineer. 20 mL scintillation vial Before running an evaporation job using a liquid handler, ensure 16 mL vial that the liquid handler is correctly set up. -
Page 8: Safety
» The system weighs 50 kg (110 lbs). It must be It is the responsibility of the customer to inform Biotage 1-Point lifted by a minimum of two persons. Note that Support representatives if the system has been used with the system is front heavy. - Page 9 » The system must be electrically grounded (earthed). Always place the solvent bottle and waste Use only a power cord supplied by Biotage. The plug container on the side of the system.* » should only be connected to a grounded outlet as The system operates using electricity, which can per local and national regulations.
-
Page 10: Weee Compliance Statement
When returning a product to Biotage, this should be done in accordance with the material return procedures supplied separately by Biotage. Safety in Other Languages Translated versions of the safety chapter can be downloaded at www.biotage.com. -
Page 11: General Information
General Information General Information Accessories and Spare Parts Only Biotage and Biotage approved accessories and spare parts must be used in the system. To order accessories and spare parts, see contact information on the back of this document or visit our website www.biotage.com. - Page 12 Part Number: 414661-D © 2019 Biotage. All rights reserved. No material may be reproduced or published without the written permission of Biotage. Information in this document is subject to change without notice and does not represent any commitment from Biotage. E&OE.
