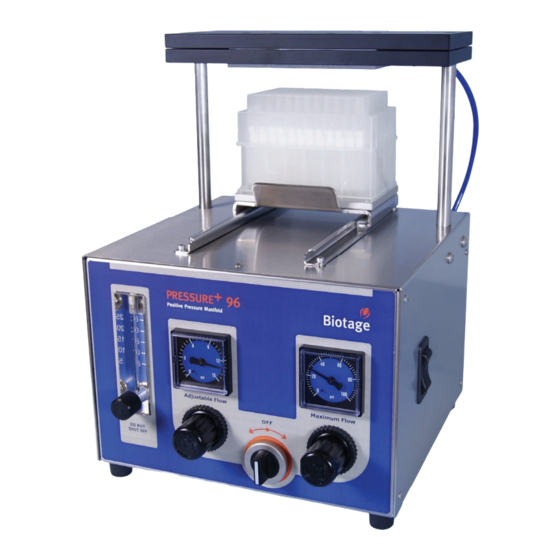

- Page 1 Biotage PRESSURE+ 96 ® User Manual...
-
Page 2: Table Of Contents
Installation Site Requirements Unpack and Install System Description Load the Plates Flow Control Operation Step-by-Step Instructions Maintenance Replace the Sealing Gasket Clean General Information Consumables and Accessories Manufacturer Contact Us Biotage PRESSURE+ 96 User Manual | © Biotage 2016 ®... -
Page 3: Safety
Safety Safety Intended Use Equipment Safety Standards Biotage PRESSURE+ 96 is intended for laboratory use only and PRESSURE+ 96 and its instruction materials are certified by has to be operated by trained professionals. All operations must Biotage to comply with: be performed: »... -
Page 4: Installation
Installation Site Requirements Unpack and Install The PRESSURE+ 96 unit should be placed in a laboratory and Warning operated where there is proper ventilation or from inside a • The total weight of the package including the unit is 16 kg chemical fume hood when volatile solvents are used. - Page 5 Installation Packing List PRESSURE+ 96 is shipped with the following items: Part Number Description 121-5202 Collection plate, 1 mL Square 121-5203 Collection plate, 2 mL Square PPM-A96-1024 PRESSURE+ 96 Collection Tray 10 mL 24 wells (waste plate) PPM-A96-GSKT PRESSURE+ 96 Sealing Gasket 96...
-
Page 6: System Description
Note that collection plate should allow for venting of the positive pressure. Standard 1 mL and 2 mL collection plates from Biotage will allow venting when paired with any of the 96-well formats from Biotage. IMPORTANT: Other manufacturer’s collection plates may... -
Page 7: Flow Control
Maximum Flow Rate (0 to 100 psi) Recommended for washing, drying, etc. By turning the The PRESSURE+ 96 unit has a two-tier gas delivery system. The flow control switch (B) to the right to the Maximum flow control switch (B) enables setting and operation of gas... -
Page 8: Operation
OFF position. See Figure I. 11. Raise the pressure manifold by pressing up on the two rocker switches simultaneously; see Figure J. 12. Pull out the platform. Biotage PRESSURE+ 96 User Manual | © Biotage 2016 ®... - Page 9 Operation...
-
Page 10: Maintenance
(PPM-A96-GSKT), and a Phillips screwdriver (PH2). In order to maintain compliance, only sealing gaskets supplied by Biotage must be used with the unit. 1. Shut off the external gas supply. 2. Turn the unit’s flow control switch to the right to the Maximum Flow position. -
Page 11: General Information
General Information General Information Consumables and Accessories To order consumables and accessories, see contact information on the back of this document or visit our website www.biotage.com. Part Number Description 121-5202 Collection plate, 1 mL Square 121-5203 Collection plate, 2 mL Square... - Page 12 Part Number: 413248-C © 2014 Biotage. All rights reserved. No material may be reproduced or published without the written permission of Biotage. © 2016 Biotage. All rights reserved. No material may be reproduced or published without the written permission of Biotage.
