Alpha-InnoTec SWC Series Operating Manual page 7

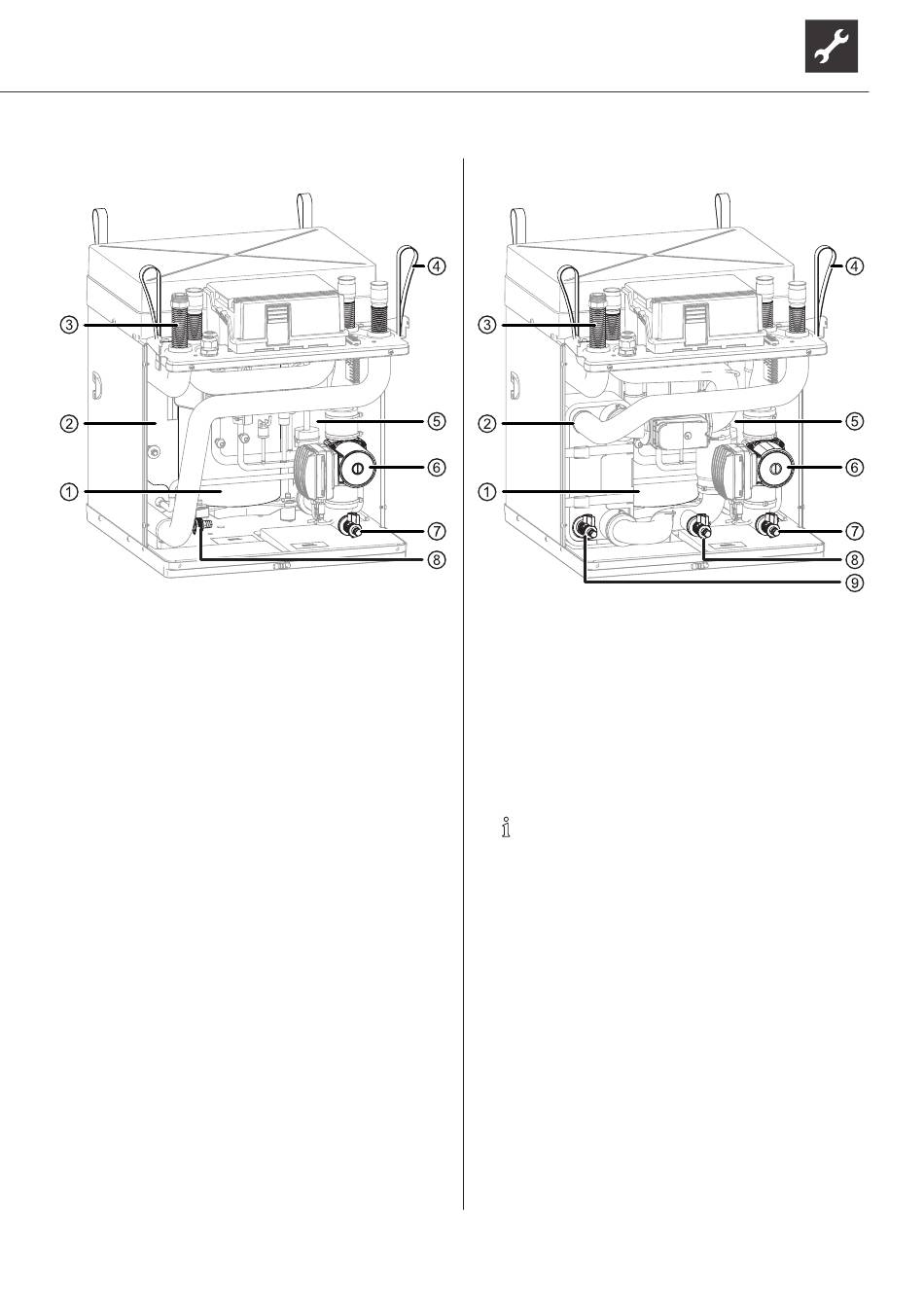

Module box – variant without cooling
1 Compressor
2 Condenser
3 Vibration isolator (4x)
4 Lifting lug (4x)
5 Evaporator
6 Heat source circulation pump
7 Heat source filling and drain tap
8 Heating filling and drain tap
Subject to change without notice | 83056700fUK – Translation of the original operating manual | ait-deutschland GmbH
Module box – variant with cooling
1 Compressor
2 Condenser
3 Vibration isolator (4x)
4 Lifting lug (4x)
5 Evaporator
6 Heat source circulation pump
7 Heat source filling and drain tap
8 Heat source filling and drain tap
9 Heating filling and drain tap
NOTE
The hose connectors are not part of the
scope of delivery with all KFE ball valves.
7
