Installation Plans; Installation Plan 1 - Alpha-InnoTec SWC Series Operating Manual

SWC 42(H)(K)3 – SWC 192(H)(K)3
F
E
D
C
B
Keys: UK819452
All dimensions in mm.
V1 Version 1
A
OKF Finished floor level
Subject to change without notice | 83056700fUK – Translation of the original operating manual | ait-deutschland GmbH
1
V1
Legende: DE819452
V1 Version 1
FS Freiraum für Servicezwecke
FZ Freiraum für funktionsnotwendiges Zubehör
OKF Oberkante Fertigfussboden
Alle Maße in mm.
2
OKF
FZ
FS
FS Free space for service purposes
FZ Free space for functionally necessary accessories
3

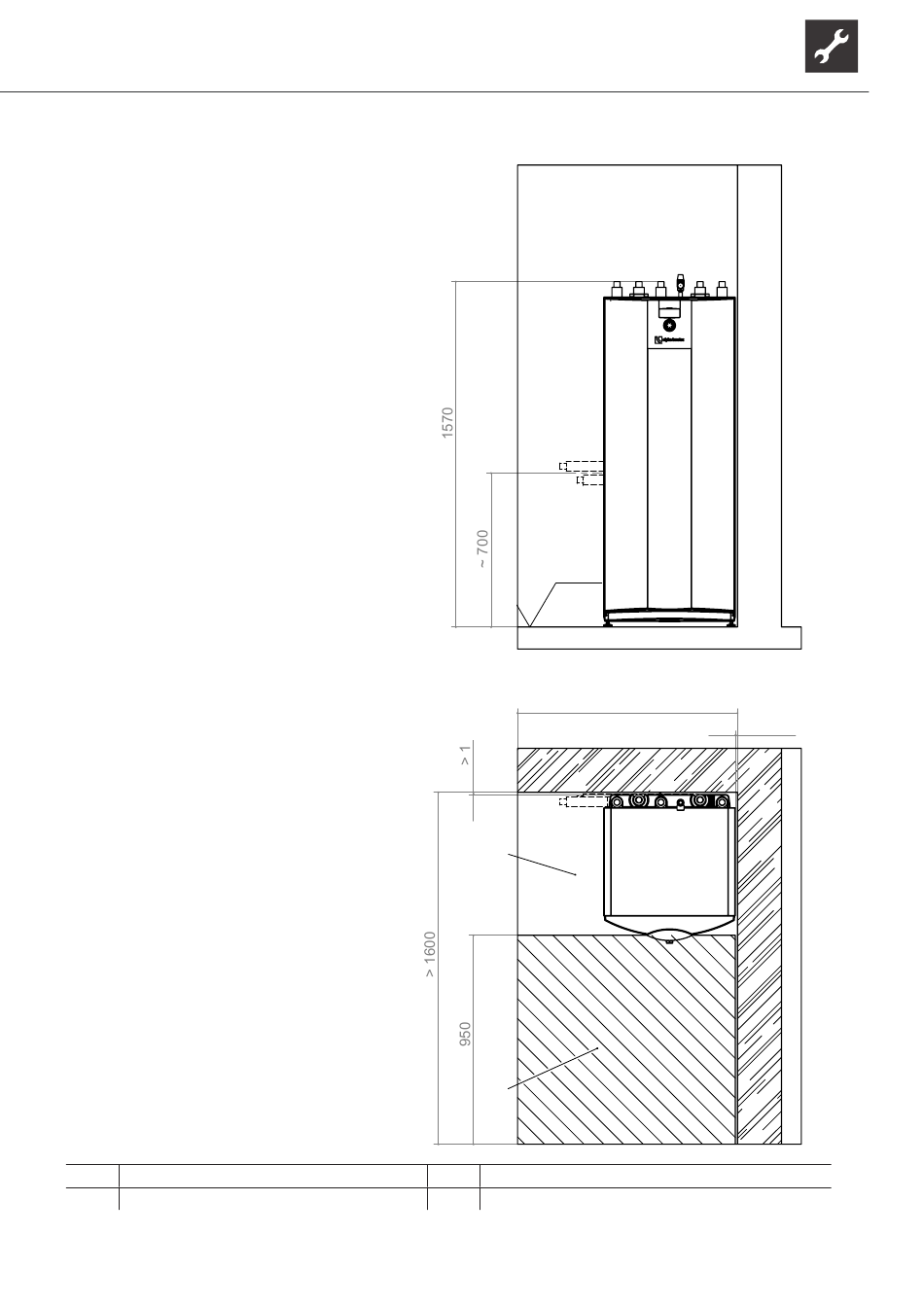

Installation plan 1

1000
> 1
39
