► Unit with cooling, 14 kW capacity and higher or
without cooling:
► Unit with cooling up to 12 kW capacity:

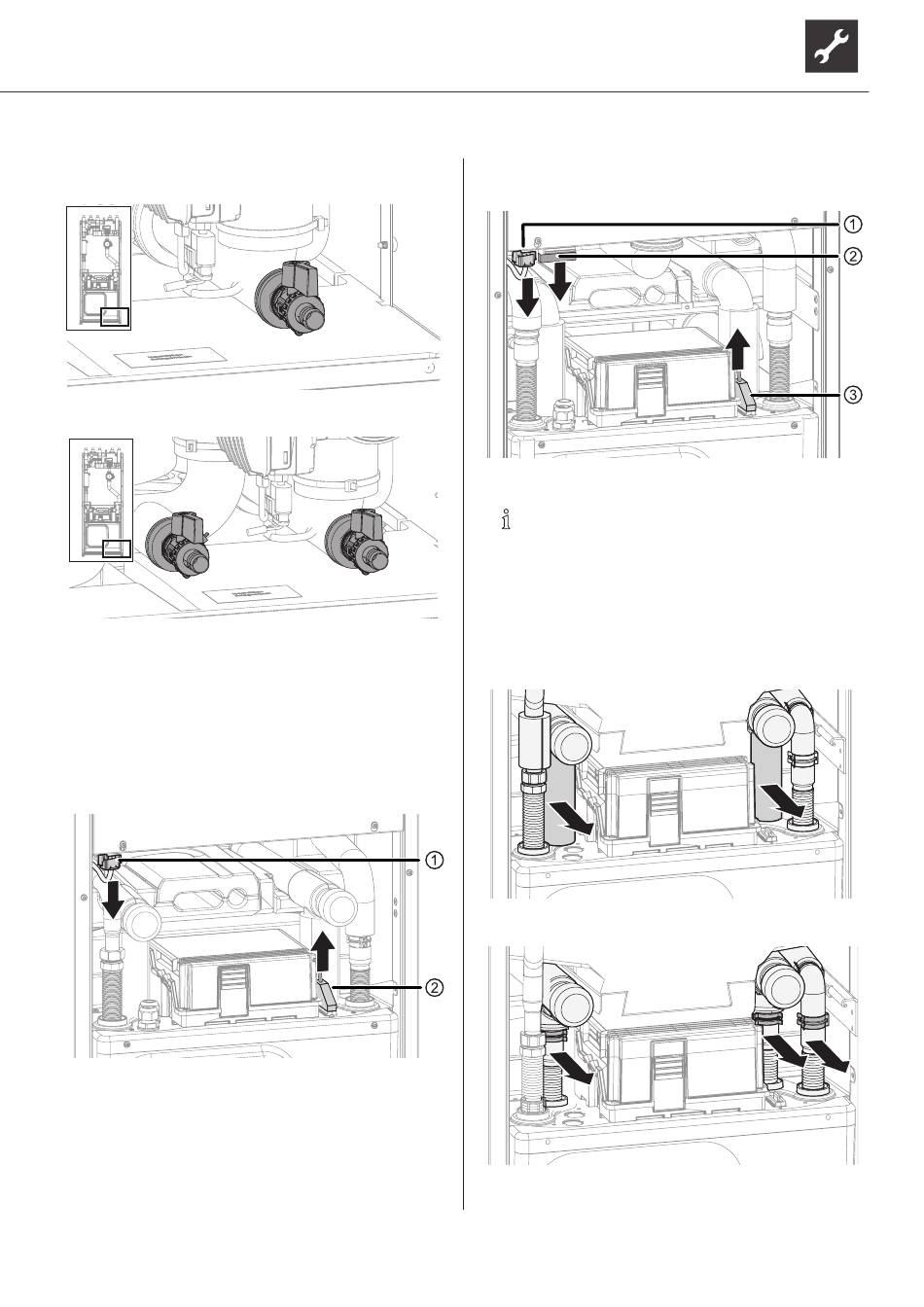

6. Disconnect the electrical connections:
► Unit up to 12 kW capacity:
● Disconnect 2 white connectors (1) at the bot-
tom of the electrical control cabinet. To do this,
release the lugs by pressing on the sides of
the connectors
● Pull out the black rectangular connector (2) at
the top of the module box
► Unit with 14 kW capacity and higher:
● Disconnect connector (1) at the bottom of the
electrical control cabinet
● Disconnect connector (2) at the bottom of
the electrical control cabinet. To do this,
remove the control cabinet cover and undo the
connector from the inside
Subject to change without notice | 83056700fUK – Translation of the original operating manual | ait-deutschland GmbH
● Pull out the black rectangular connector (3) at
the top of the module box
NOTE
The following diagrams show the connec-
tions of units with up to 12 kW capacity. In
units with 14 kW capacity and higher all con-
nections are installed with clips and without
valves.
7. Remove the insulation on the hydraulic connec-
tions.
8. Remove 3 clips on the hydraulic connections.
