Model Numbers

This manual covers the following models:

MODEL NOMENCLATURE:

ND 2
I II
Number of
Dispenser Type
Taps
2 = Two
(one still,
ND = Nitro Dispenser
one gas)
3 = Four
(one still,
three gas)
4 = Four
NC = Nitro Coffee
(two still,
two gas)
About N₂Fusion™
The N₂Fusion™ Nitrogen Beverage Dispenser is a self-
contained dispensing unit that allows the operator to
dispense chilled and/or nitrogenized drink combinations of
coffee. It holds product containers or kegs in a refrigerated
reach-in base enclosure.
The operator controls the product pour on the unit using
mechanical beer style taps. Drink size options are manually
controlled. Purging and cleaning are controlled through
and internal push button located in the upper left corner
of the refrigeration cabinet. A blue LED ring will illuminate
around the button to provide feedback to the user during
purge, cleaning, and/or errors.
Periodic software updates through the PLC on the rear
of the unit may be required for maintenance, additional
features, and/or improvements.
NOTE: These units are intended for indoor use.
Part Number 020007115 06/27/2019

General Information

1 T
III IV
Tower
Towers
Mounting
1 = Single T = Top Mount
on Base
2 = Dual
R = Remote
3 = Dual Fonts *
Counter Top
4 = Four Fonts *
* Each Font Mounts 1 Tap
Section 1
S
V
Handle & Nozzle Cabinet Type
B = Black Plastic 0 = 406 Star
S = Stainless Polished 1 = BIM Base
C = Coffee Wood 2 = Global Under
Handle & Polished Counter
Stainless Nozzle
3 = Slimwide
Cabinet
(SBX Gen 2)

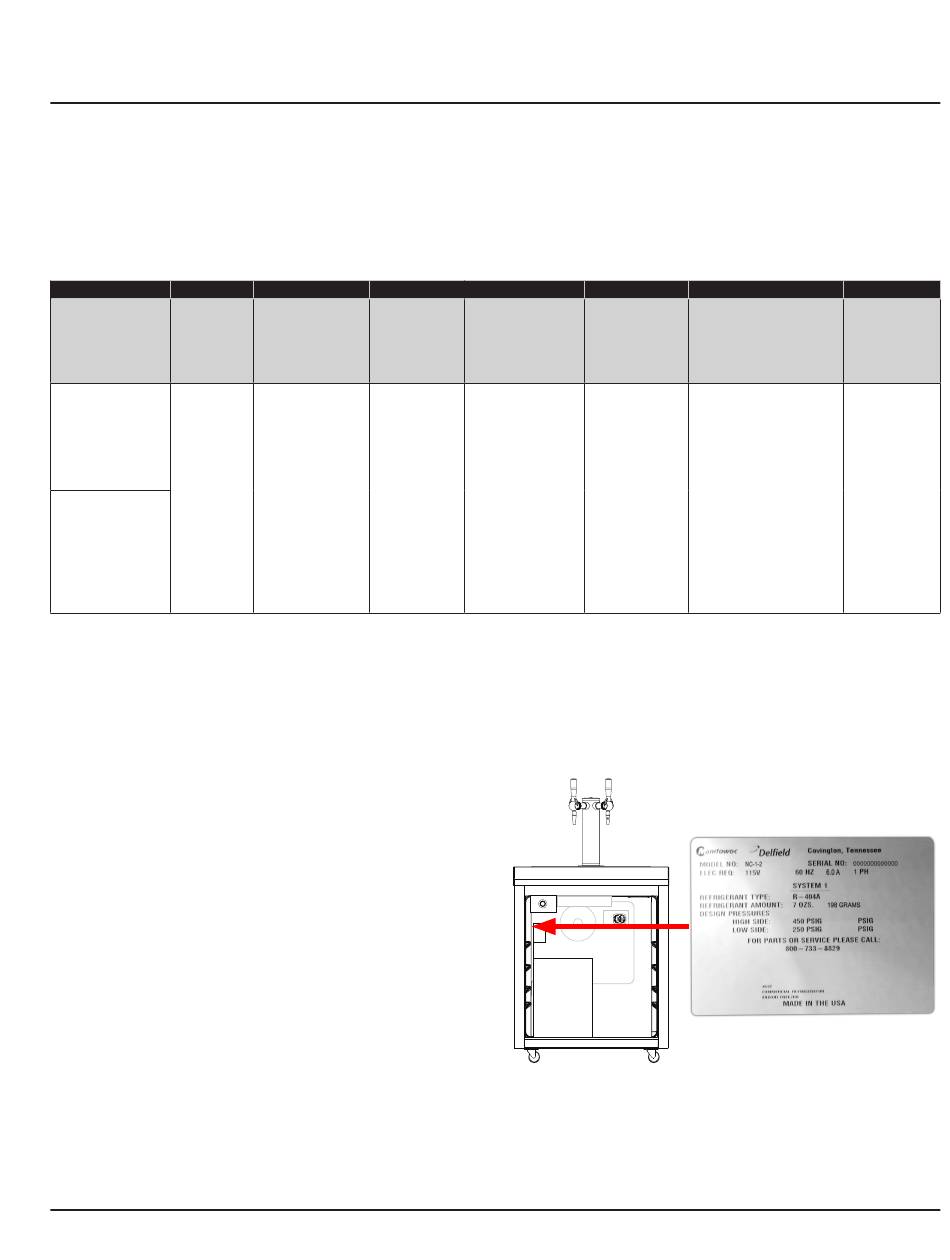

Serial Number Location

The serial number on N
Dispenser is printed on the left side of the interior wall.
Always have the serial number of your unit available
when calling for parts or service.
0
VI VII
Electrical & Refrigerant
0 = 115/60 - R404a
1 = 220/60 - R404a
2 = 230-240/50 R404a
3 = 100/60 - R404a
4 = 100/50 - R404a
5 = 115/60 - R290
6 = 220/60 - R290
7 = 230-240/50 R404a
8 = 100/60 - R290
9 = 100/50 - R290
Fusion™ Nitrogen Beverage
2
Sample Serial Tag
0
VIII
Customer
Specific
A = Double
System
