Section 2

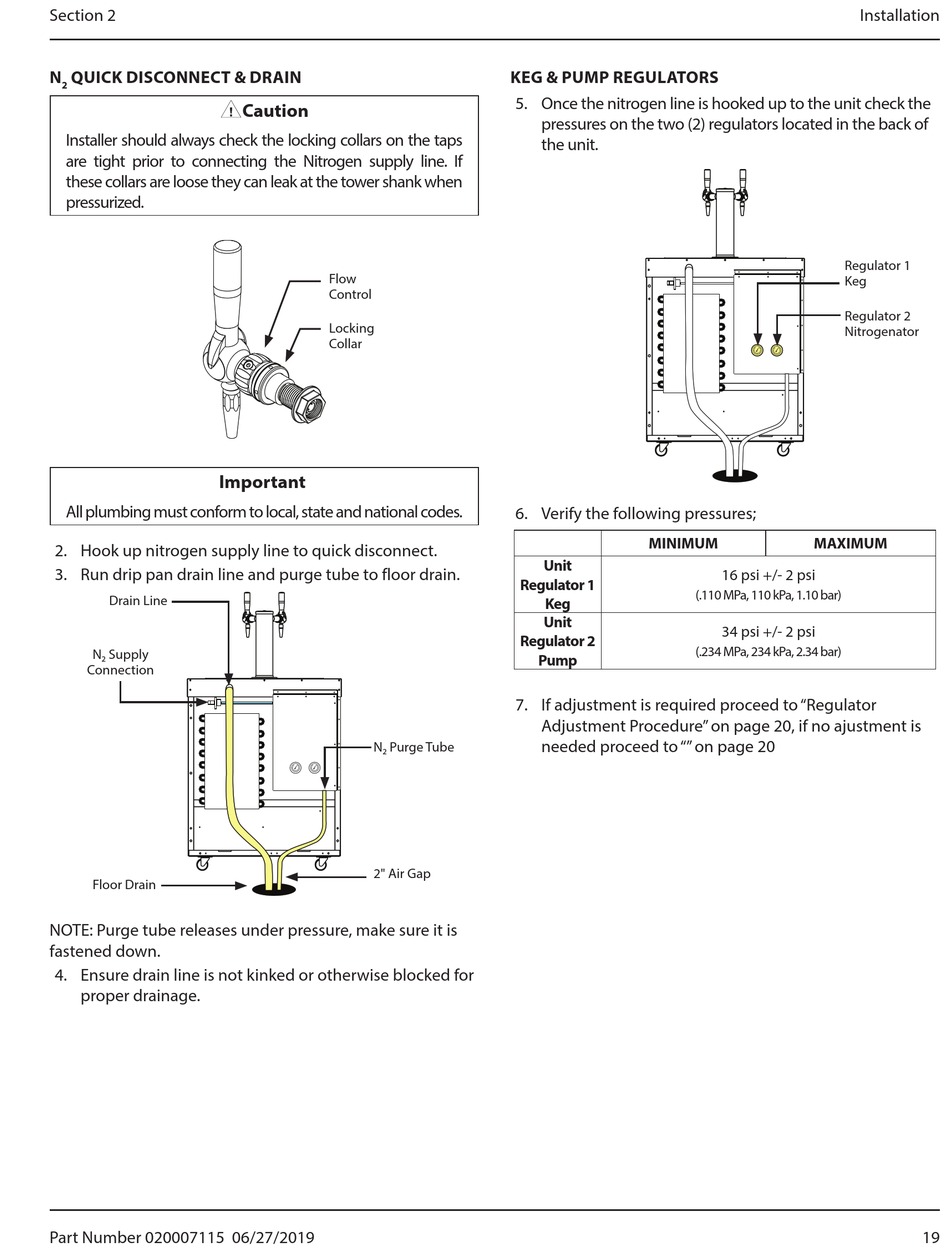

N QUICK DISCONNECT & DRAIN
2
,
Installer should always check the locking collars on the taps
are tight prior to connecting the Nitrogen supply line. If
these collars are loose they can leak at the tower shank when
pressurized.


IIportant
All plumbing must conform to local, state and national codes.
2. Hook up nitrogen supply line to quick disconnect.
3. Run drip pan drain line and purge tube to floor drain.
Drain Line
N Supply
2
Connection
Floor Drain
NOTE: Purge tube releases under pressure, make sure it is
fastened down.
4. Ensure drain line is not kinked or otherwise blocked for
proper drainage.
Part Number 020007115 06/27/2019
Caution
Flow
Control
Locking
Collar
N Purge Tube
2
2" Air Gap
KEG & PUMP REGULATORS
5. Once the nitrogen line is hooked up to the unit check the
pressures on the two (2) regulators located in the back of
the unit.
6. Verify the following pressures;
MINIMUM
Unit
Regulator 1
Keg
Unit
Regulator 2
PuIp
7. If adjustment is required proceed to "Regulator
Adjustment Procedure" on page 20, if no ajustment is
needed proceed to "" on page 20
Installation
Regulator 1
Keg
Regulator 2
Nitrogenator
MAXIMUM
16 psi +/- 2 psi
(.110 MPa, 110 kPa, 1.10 bar)
34 psi +/- 2 psi
(.234 MPa, 234 kPa, 2.34 bar)
19
