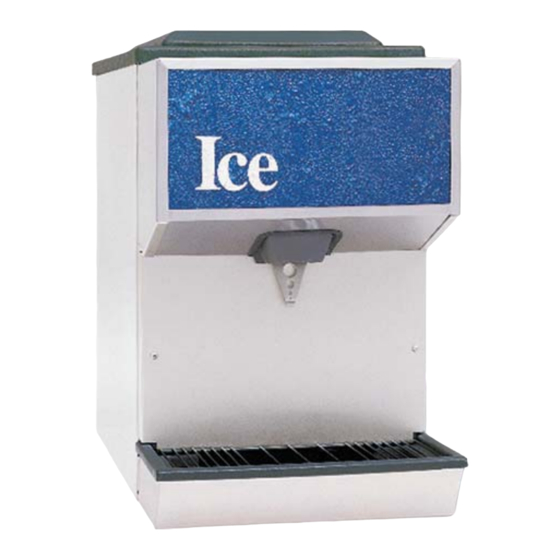

Manitowoc M-15 Installation & Service Manual

Manitowoc M-15 Installation & Service Manual

M & h series

Advertisement

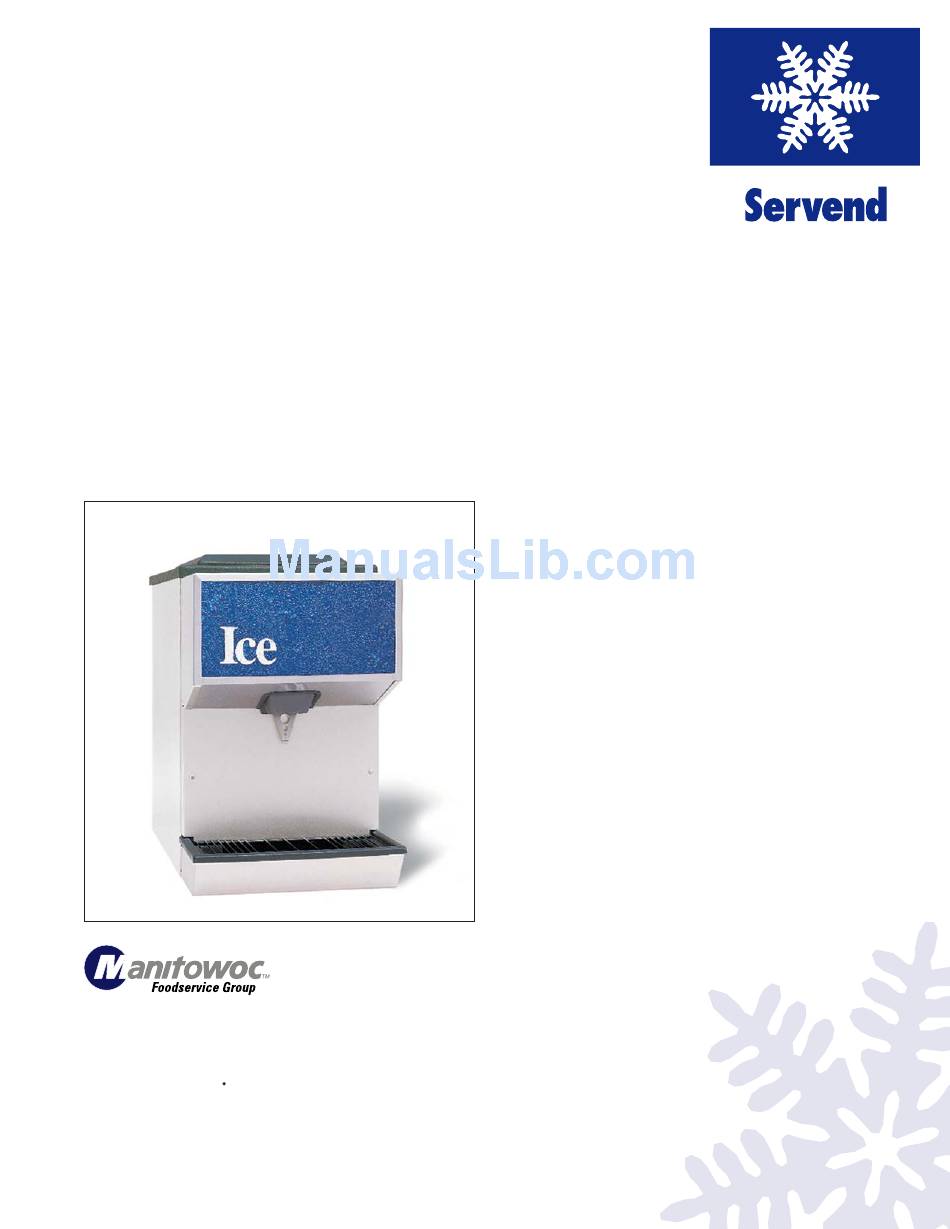

M & H SERIES
M-15, 45, 90,150,200 & H-265
INSTALLATION & SERVICE GUIDE

Part Number 5001192

Manitowoc Beverage Equipment
2100 Future Drive w Sellersburg, IN 47172-1868
Tel: 812.246.7000, 800.367.4233
Fax: 812.246.9922
www.manitowocbeverage.com
In accordance with our policy of continuous product development and
improvement, this information is subject to change at any time without notice.
5001192 Revision 27 January, 2003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-15 and is the answer not in the manual?

Questions and answers

Summary of Contents for Manitowoc M-15

  • Page 1: Part Number

    M & H SERIES M-15, 45, 90,150,200 & H-265 INSTALLATION & SERVICE GUIDE Part Number 5001192 Manitowoc Beverage Equipment 2100 Future Drive w Sellersburg, IN 47172-1868 Tel: 812.246.7000, 800.367.4233 Fax: 812.246.9922 www.manitowocbeverage.com In accordance with our policy of continuous product development and improvement, this information is subject to change at any time without notice.
  • Page 3: Foreword

    Installation and Service Manual FOREWORD SerVend developed this manual as a reference guide for the owner/operator, service agent, and installer of this equipment. Please read this manual before installation or operation of the machine. Consult the troubleshooting guide within this manual for service assistance If you cannot correct the service problem, call your SerVend Service Agent or Distributor.
  • Page 4: Safety Instructions

    Installation and Service Manual SAFETY INSTRUCTIONS Installation and start-up of this equipment should be done by a qualified service technician. Operation, maintenance, and cleaning information in this manual are provided for the user/operator of the equipment. DAILY CHECK LIST FOR THE OPERATOR •...
  • Page 5: Table Of Contents

    Installation and Service Manual TABLE OF CONTENTS FOREWORD ......................3 UNPACKING AND INSPECTION ................ 3 WARRANTY INFORMATION ................3 SAFETY INSTRUCTIONS ................... 4 DAILY CHECK LIST FOR THE OPERATOR ............4 COMPATIBLE ICE ....................7 ICE RECOMMENDED FOR DISPENSING ................7 EQUIPMENT OVERVIEW ..................
  • Page 6 Installation and Service Manual TABLE OF CONTENTS TROUBLESHOOTING ..................20 CONDITION ........................20 INVESTIGATION: ........................ 20 CHECK / HOW TO CHECK: ....................20 CORRECTION: ........................20 CONDITION ........................21 INVESTIGATION ......................... 21 CHECK / HOW TO CHECK ....................21 CORRECTION ........................21 CONDITION ........................
  • Page 7: Compatible Ice

    Installation and Service Manual COMPATIBLE ICE ICE RECOMMENDED FOR DISPENSING FULL CUBE MINI CUBE CUBELET NEW EAGLE SERIES LENTICULAR 7/8" x 7/8" x 7/8" 3/8" x 7/8" x 7/8" 5/8" x 5/8" x 5/8" MINI CUBE 1 3/8" x 3/8" 3/4"...
  • Page 8: Equipment Overview

    Installation and Service Manual EQUIPMENT OVERVIEW HOW THE ICE DISPENSER WORKS ICE STORAGE AND DISPENSING SEQUENCE OF OPERATION: PUSH BUTTON ICE DISPENSING Ice is stored in the dispenser’s bin. Ice is transported from the bottom of the bin to the ice dispense point by the paddle Customer’s finger presses the push button, located in wheel.
  • Page 9: Equipment Specifications

    Installation and Service Manual HOW THE ICE DISPENSER WORKS (CONT’D) SEQUENCE OF OPERATION: KEY SWITCH OR COIN OPERATED ICE DISPENSING (H265) The key switch or coin mechanism engages a microswitch. The energized microswitch also activates the gear mo- The energized microswitch activates the solenoid, which tor.
  • Page 10 Installation and Service Manual OVERALL DIMENSIONS (CONT’D) M - SERIES < REAR DIMENSIONS BOTTOM DIMENSIONS > 5001192 Revision 03 February, 2003...
  • Page 11: Specifications

    Installation and Service Manual SPECIFICATIONS M - 15 ______________________________________________________________________ Dimensions: Width 38.1 cm (15”) Depth - overall 71.1 cm (28”) Depth - counter top 66 cm (26”) Height 81.3 cm (32”) Bin Top Size - width 38.1 cm (15”) - depth 52.1 cm (20.5”) Rear “A”...
  • Page 12 Installation and Service Manual SPECIFICATIONS M - 90 ______________________________________________________________________ Dimensions: Width 38.1 cm (15”) Depth - overall 71.1 cm (28”) Depth - counter top 66 cm (26”) Height 81.3 cm (32”) Dispense Height 24.8 cm (9.75”) Bin Top Size - width 38.1 cm (15”) - depth 45.7 cm (18”)
  • Page 13 Installation and Service Manual SPECIFICATIONS M - 200 _____________________________________________________________________ Dimensions: Width 76.2 cm (30”) Depth - overall 76.2 cm (30”) Depth - counter top 72.4 cm (28.5”) Height 81.9 cm (32.25”) Dispense Height 30.5 cm (12”) Bin Top Size - width 76.2 cm (30”) - depth 57.2 cm (22.5”)
  • Page 14: Overall H - Series Dimensions

    Installation and Service Manual OVERALL H - SERIES DIMENSIONS H - 265 30 1/2" 30" 22 1/2" 61 1 9" 25 7/16" 43 3/8" 5001192 Revision 03 February, 2003...
  • Page 15: Specifications

    Installation and Service Manual SPECIFICATIONS H - 265 _____________________________________________________________________ Dimensions: Width 76.2 cm (30”) Depth - overall 77.5 cm (30.5”) Depth - floor space 72.4 cm (28.5”) Height- with 15 cm (6”) legs 156.8 cm (61.75”) Dispense Height 22.9 cm (9”) Bin Top Size - width 76.2 cm (30”)
  • Page 16: Installation

    Installation and Service Manual INSTALLATION COUNTER TOP INSTALLATION (M Series Dispenser) OPTION A: Check the equipment location. Assure the proper drain One drain tube fitting is with a 90° bend. This fitting and electrical requirements are available before proceed- attaches to the bin drain fitting. Underneath the dis- ing.
  • Page 17: Floor Installation

    Installation and Service Manual COUNTER TOP INSTALLATION FLOOR INSTALLATION If beverage valves are supplied with your dispenser, con- (H265 Series Dispenser) nect them to the beverage system at this time according Check the equipment location. Assure the proper drain to the information supplied by the beverage supplier. and electrical requirements are available before proceed- ing.
  • Page 18: Adding An Ice Machine To A Servend Dispenser

    Installation and Service Manual ADDING AN ICE MACHINE TO A SERVEND DISPENSER When mounting an ice machine on top of a SerVend dis- penser place the front edge of the machine with the outside front edge of the dispenser bin. With some ice makers, there may be an overhang of the ice machine on the back of the dispenser.
  • Page 19: Beverage System

    Installation and Service Manual BEVERAGE SYSTEM Installation and maintenance of the beverage system is not covered in this manual. The SerVend M series dis- penser is an ice only dispenser. In some applications, The dispenser provides a mounting location for optional beverage valves.
  • Page 20: Troubleshooting

    Installation and Service Manual TROUBLESHOOTING CONDITION INVESTIGATION: CHECK / HOW CORRECTION: TO CHECK: dispenser Dispenser does not There is no power to Plug the dispenser in. dispense ice. the dispenser. plugged in? dispenser If no power is present, plugged in with power check the cord and to the receptacle.
  • Page 21: Condition

    Installation and Service Manual TROUBLESHOOTING CORRECTION CONDITION INVESTIGATION CHECK / HOW TO CHECK Lower ice bin level. Remove the agitator Dispenser does not dis- Gear motor runs but pense ice. the dispensing paddle and paddle wheel. Are you able to turn the wheel does not turn.
  • Page 22: Condition

    Installation and Service Manual TROUBLESHOOTING CONDITION INVESTIGATION CHECK / HOW CORRECTION TO CHECK Dispenser crushes ice as Is there an ice maker on Is there at least 7.5 cm (3 Remove the gear motor. in) between the top of the it dispenses.
  • Page 23: Adjustments

    Installation and Service Manual ADJUSTMENTS ADJUSTMENTS AGITATION TIMER DOOR The agitation timer is standard equipment for the dispensers The door is used to stop the flow of ice to the container when with 90.7 kg. (200 lbs.) and larger bin storage. This timer is the microswitch is released.
  • Page 24: Ice Flow

    Installation and Service Manual ADJUSTMENTS ICE FLOW The delivery of the ice from the dispenser is influenced by A flow restrictor is available as an option for installa- several factors. The primary influence is the type of ice be- tion in the dispensing chute of the dispenser. This ing dispensed.
  • Page 25: General Instructions

    Installation and Service Manual GENERAL INSTRUCTIONS REMOVAL OF GEAR MOTOR These instructions are provided as a guide for the removal of the gear motor. Depending on the model number of your dispenser, these instructions may vary slightly. 1. Disconnect power from the electric receptacle. 6.
  • Page 26: Wiring Diagrams

    Installation and Service Manual WIRING DIAGRAMS M-150 : H-265 PUSH BUTTON : H-265 WITH KEY SWITCH - ALL VOLTAGES H-265 WITH COIN MECHANISM - ALL VOLTAGES To Electric Power Supply 5001192 Revision 03 February, 2003...
  • Page 27: Wiring Diagrams

    Installation and Service Manual WIRING DIAGRAMS M-15A : M-15B : M-45 : M-90 : STANDARD CONFIGURATION - ALL VOLTAGES TO ELECTRIC POWER SUPPLY M-15C : STANDARD CONFIGURATION - ALL VOLTAGES TO ELECTRIC POWER SUPPLY 5001192 Revision 03 February, 2003...
  • Page 28: M-15C With Agitation Timer

    Installation and Service Manual WIRING DIAGRAMS M-15C WITH AGITATION TIMER M-90 WITH LIGHTS AND VALVES - ALL VOLTAGES 5001192 Revision 03 February, 2003...
  • Page 29: M-150 : H-265 Push Button : H-265 With Key Switch - All Voltages

    Installation and Service Manual WIRING DIAGRAMS M-150 : H-265 PUSH BUTTON : H-265 WITH KEY SWITCH - ALL VOLTAGES To Electric Power Supply M-150 WITH LIGHT AND VALVES - ALL VOLTAGES To Electric Power Supply 5001192 Revision 03 February, 2003...
  • Page 30: Wiring Diagrams

    Installation and Service Manual WIRING DIAGRAMS M-200 : M-250 : M250-36 : STANDARD CONFIGURATION - ALL VOLTAGES To Electric Power Supply H-265 WITH COIN MECHANISM - ALL VOLTAGES 5001192 Revision 03 February, 2003...
  • Page 32 Manitowoc Beverage Equipment 2100 Future Drive w Sellersburg, IN 47172-1868 Tel: 812.246.7000, 800.367.4233 Fax: 812.246.9922 www.manitowocbeverage.com In accordance with our policy of continuous product development and improvement, this information is subject to change at any time without notice. 5001192 Revision 03 February, 2003...
