Section 2

KEG CONNECTIONS

Never stand directly over keg when connecting,
disconnecting, or when keg is pressurized.


IIportant
Only use AEB Kegs. Available from Manitowoc FoodService..

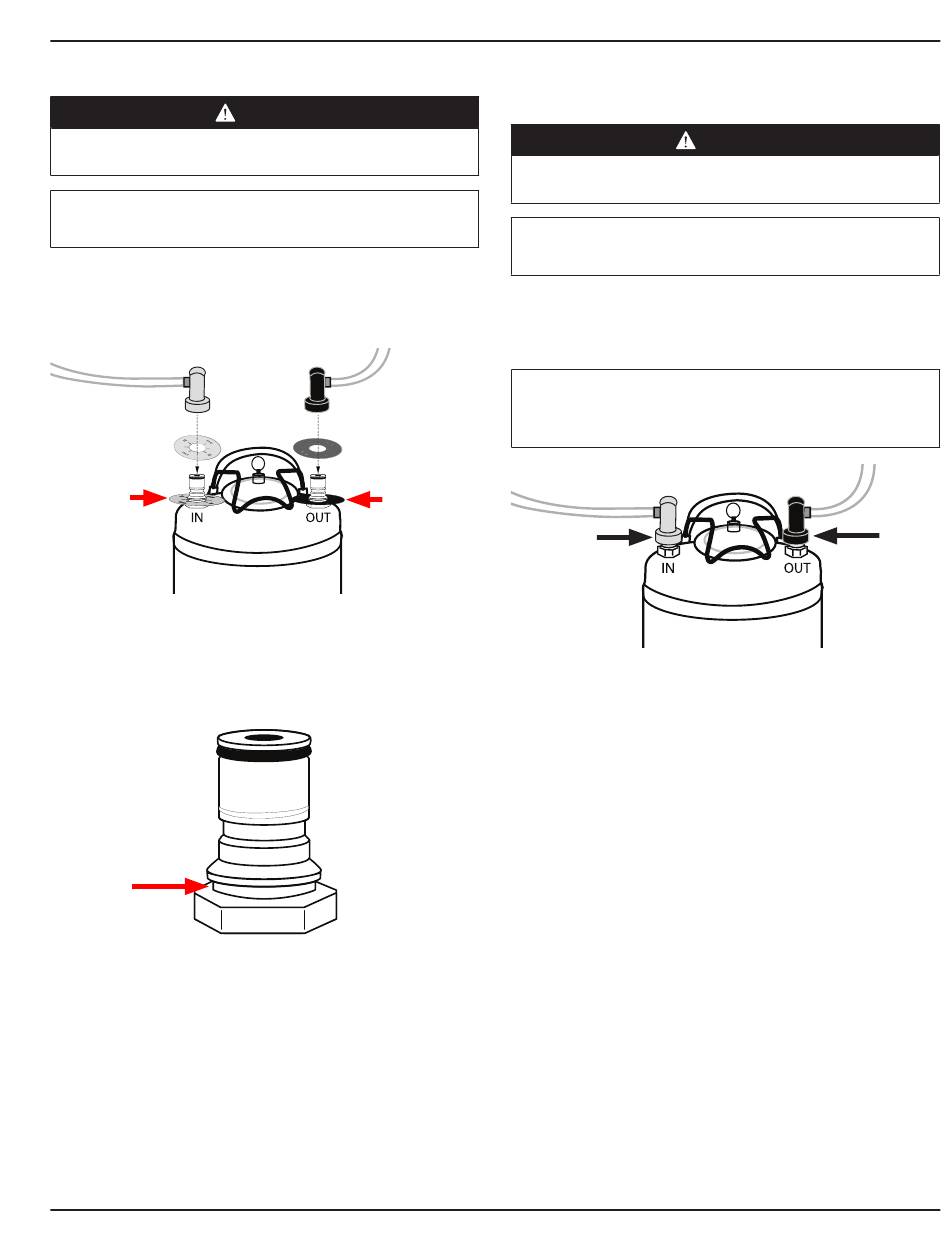

Keg Post Collars
1. Locate post collars and match the black to OUT post
and gray to IN post.
Gray collar on
IN connection
of each keg
NOTE: Color coding allows partners to match the black
connector to black collar and gray connector to gray collar.
2. Press each collar over the IN and OUT posts until they
seat in the grove below the taper.
Collar Groove
Part Number 020007115 06/27/2019
DANGER
Black collar on
OUT connection
of each keg
Connecting the Keg
Never stand directly over keg when connecting,
disconnecting, or when keg is pressurized.


IIportant
Only use AEB Kegs. Available from Manitowoc Foodservice..
3. First connect the Black quick connect line to the
connection labeled OUT on the coffee keg. This supplies
coffee to Tap 1 and 2.


IIportant
Hook the OUT line up to the coffee keg first, this helps prime
the system once the nitrogen IN line is connected to the tank.
Pull ring
while
connecting
to post then
release to
lock into
place.
4. Connect the Gray quick connect line second to the
connection labeled IN on the coffee keg. This line supplies
Nitrogen into tank. See "Keg Change" on page 24 &
"Priming the System" on page 25
5. The system is now ready to be primed.
Installation
DANGER
21
