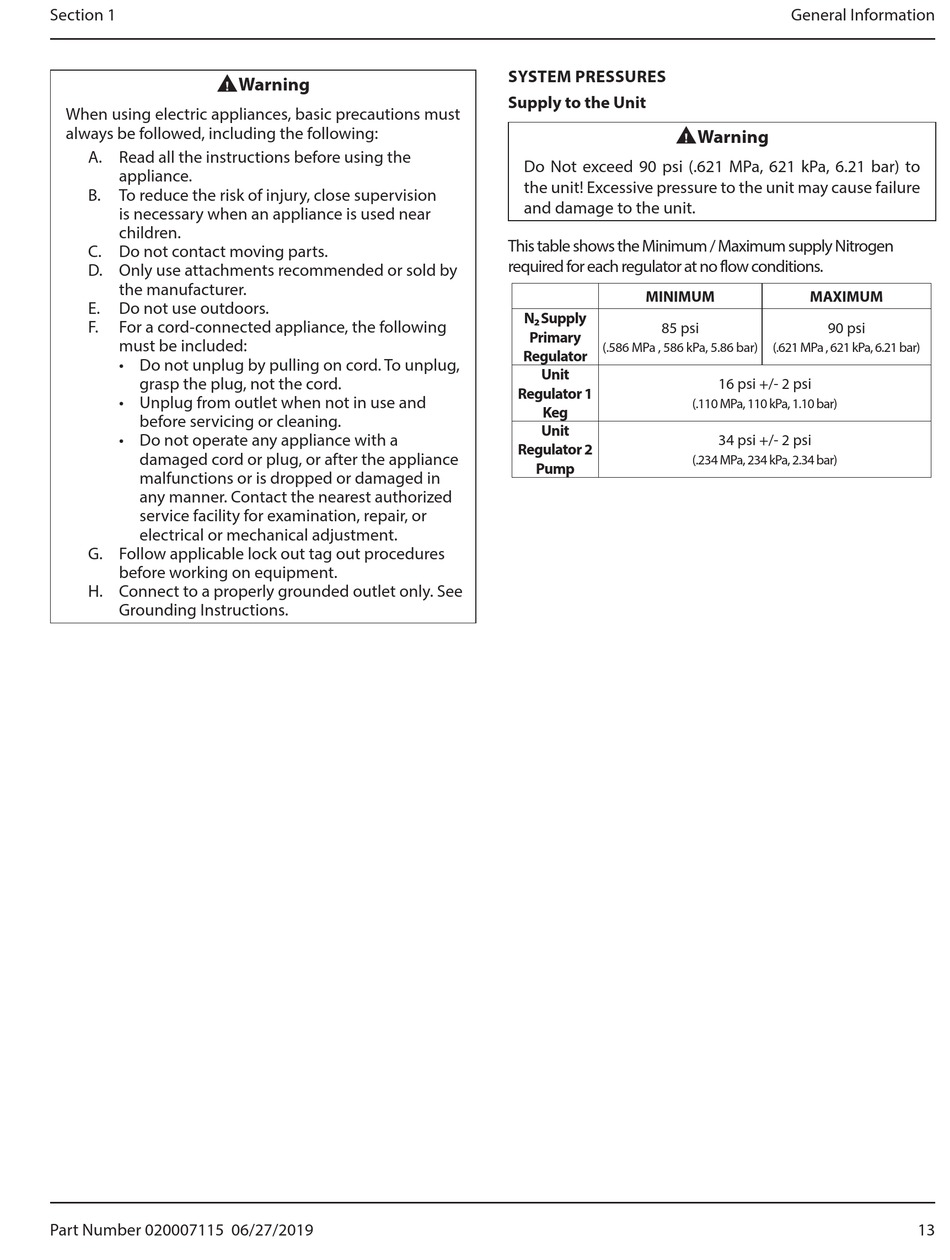

System Pressures - Manitowoc Multiplex N2Fusion Service Manual

Section 1
n
When using electric appliances, basic precautions must
always be followed, including the following:
A. Read all the instructions before using the
appliance.
B. To reduce the risk of injury, close supervision
is necessary when an appliance is used near
children.
C. Do not contact moving parts.
D. Only use attachments recommended or sold by
the manufacturer.
E. Do not use outdoors.
F. For a cord-connected appliance, the following
must be included:
• Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord.
• Unplug from outlet when not in use and
before servicing or cleaning.
• Do not operate any appliance with a
damaged cord or plug, or after the appliance
malfunctions or is dropped or damaged in
any manner. Contact the nearest authorized
service facility for examination, repair, or
electrical or mechanical adjustment.
G. Follow applicable lock out tag out procedures
before working on equipment.
H. Connect to a properly grounded outlet only. See
Grounding Instructions.
Part Number 020007115 06/27/2019
Warning

SYSTEM PRESSURES

Supply to the Unit
n
Do Not exceed 90 psi (.621 MPa, 621 kPa, 6.21 bar) to
the unit! Excessive pressure to the unit may cause failure
and damage to the unit.
This table shows the Minimum / Maximum supply Nitrogen
required for each regulator at no flow conditions.
MINIMUM
N₂ Supply
85 psi
Primary
(.586 MPa , 586 kPa, 5.86 bar)
Regulator
Unit
Regulator 1
Keg
Unit
Regulator 2
Pump
General Information
Warning
MAXIMUM
90 psi
(.621 MPa , 621 kPa, 6.21 bar)
16 psi +/- 2 psi
(.110 MPa, 110 kPa, 1.10 bar)
34 psi +/- 2 psi
(.234 MPa, 234 kPa, 2.34 bar)
13
