Prime/Clean Button

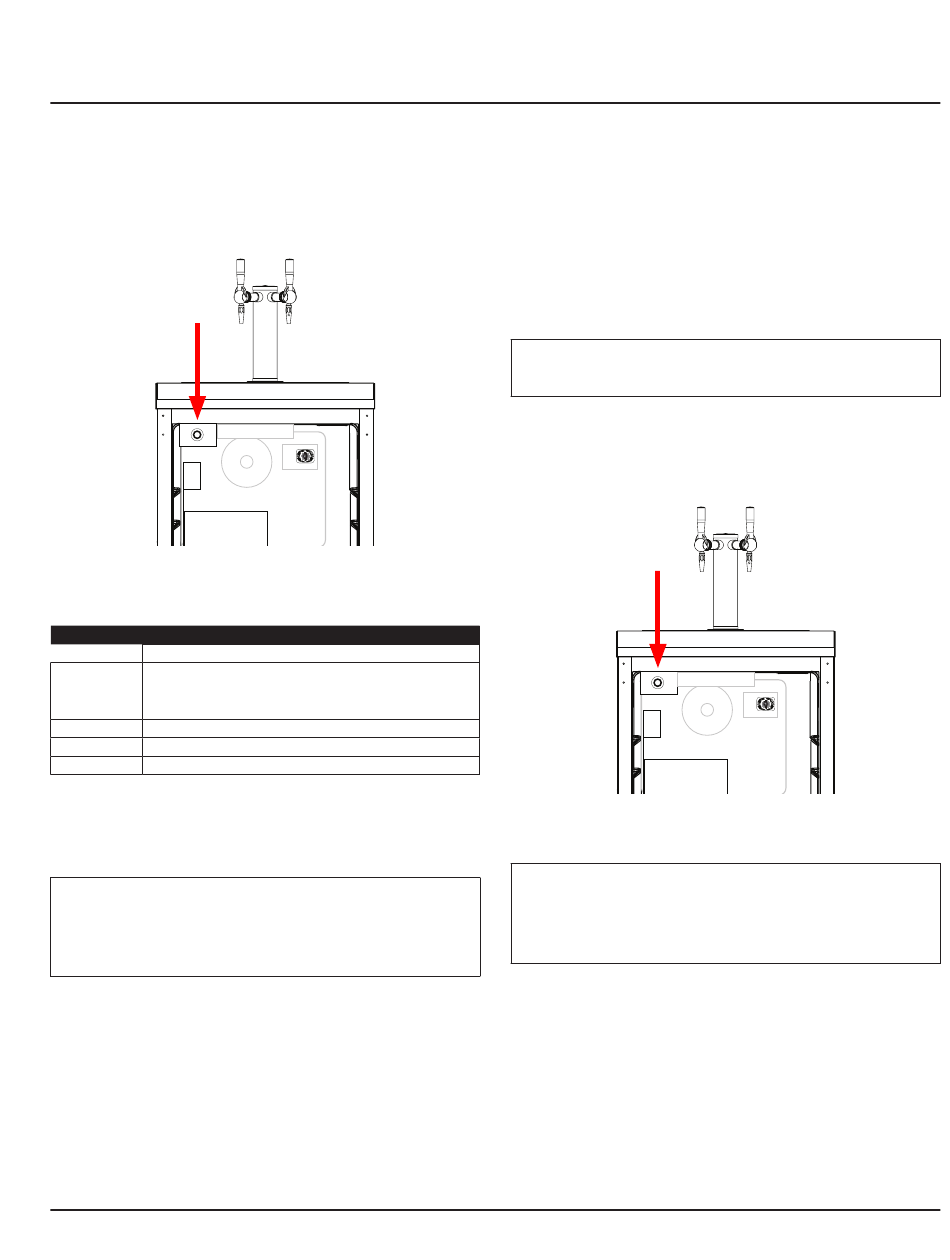

The Prime/Clean button is located in the upper left corner
of the refrigeration cabinet. This button is used for priming
the system with coffee, cleaning, and displaying error codes
using the blue LED ring around the button.
The following table lists the Prime/Clean Button functions and
state the LED is in during each mode.
PRIME /CLEAN BUTTON FUNCTIONS
Mode
Dispense
and/or Keg
Change
Prime Blinks once then OFF when button is pressed
Cleaning ON constant after button pressed and held
Error
NOTE: Error mode can be caused by the following;
A. Keg Needs Primed or Failed to Prime
B. Keg is Empty


Immortant
DO NOT put unit into cleaning mode with coffee keg
connected! This empty the keg and pump coffee down the
drain!
NOTE: If cleaning mode is accidentally entered with a coffee
keg attached immediately press and hold the Prime/Clean
button until the LED turns OFF. Priming may be required to
put the unit back into dispense mode.
Part Number 020007115 06/27/2019
LED
OFF
Blinks constantly
Section 6

Controls

PRIMING MODE

• Press once to prime the coffee line. The LED around the
button will flash ON once, then OFF signifying that the
Prime function has been activated.
NOTE: The pump will run for up to twenty (20) seconds while
priming. Once the system is primed it is ready to pour drinks.
Priming the System
Priming is always required during keg change.
1. Press the Prime/Clean button, located in the upper left
corner of the refrigeration cabinet, once to prime the coffee
line. The LED around the button will flash ON once, then
OFF signifying that the Prime function has been activated.
2. The pump may run for up to twenty (20) seconds while
priming.
If priming fails to complete the system will go into an
error state and the Prime/Clean button LED will blink
continuously until the error is cleared.
NOTE: If error occurs See "Error Code" on page 44
3. Once the system is primed it is ready to pour drinks.
4. Close cabinet door and unit is ready for use.


Immortant


Immortant
