Installation

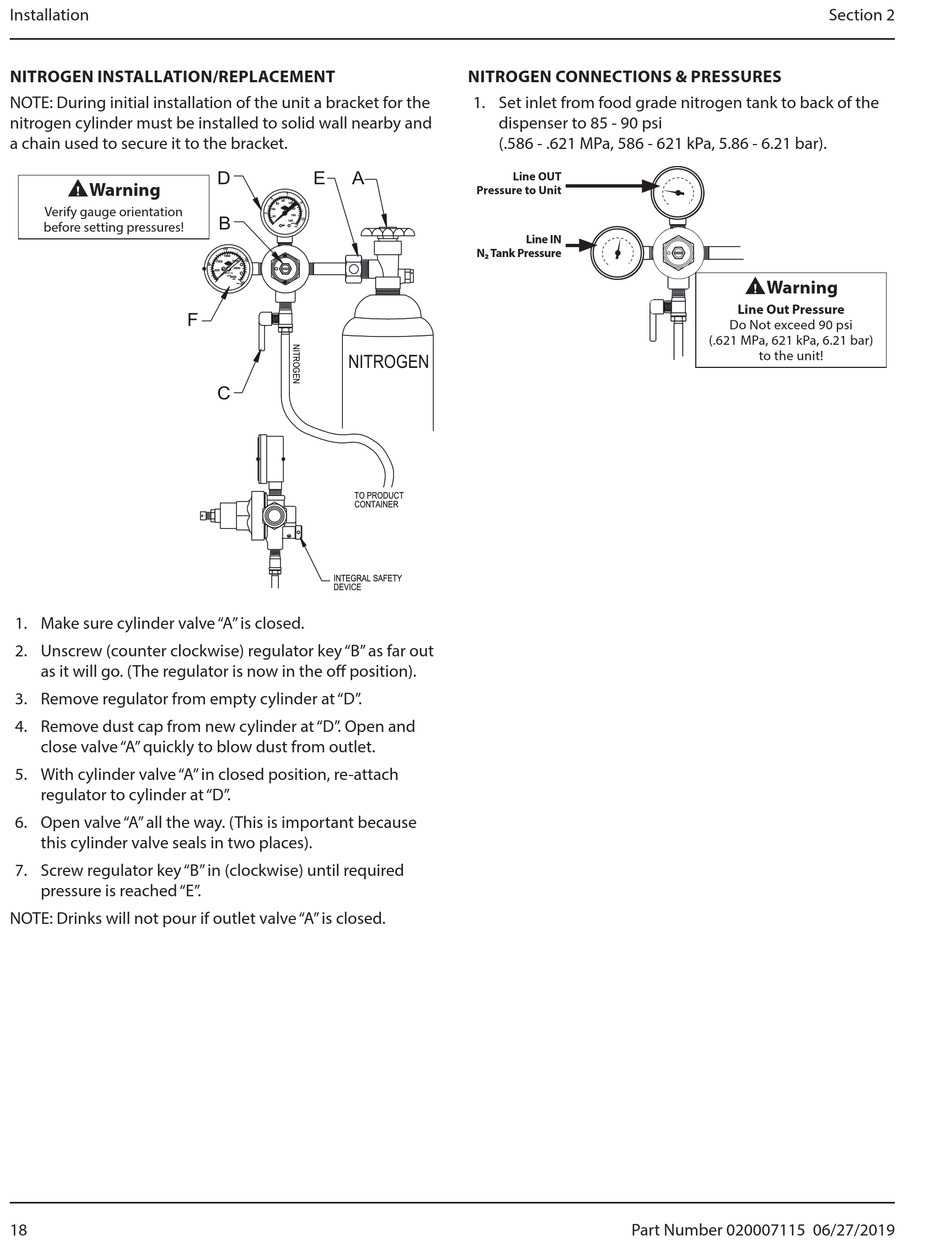

NITROGEN INSTALLATION/REPLACEMENT

NOTE: During initial installation of the unit a bracket for the
nitrogen cylinder must be installed to solid wall nearby and
a chain used to secure it to the bracket.
Warning
n
Verify gauge orientation
before setting pressures!
F
1. Make sure cylinder valve "A" is closed.
2. Unscrew (counter clockwise) regulator key "B" as far out
as it will go. (The regulator is now in the off position).
3. Remove regulator from empty cylinder at "D".
4. Remove dust cap from new cylinder at "D". Open and
close valve "A" quickly to blow dust from outlet.
5. With cylinder valve "A" in closed position, re-attach
regulator to cylinder at "D".
6. Open valve "A" all the way. (This is important because
this cylinder valve seals in two places).
7. Screw regulator key "B" in (clockwise) until required
pressure is reached "E".
NOTE: Drinks will not pour if outlet valve "A" is closed.
18
D E A
80
60 100
40 120
B
140
20
160
psi
R
bar
1500
2000
1000
2500
U L
500 R
USE NO OIL
LEFT 3000
psi
bar
NITROGEN
C
TO PRODUCT
CONTAINER
INTEGRAL SAFETY
DEVICE
NITROGEN CONNECTIONS & PRESSURES
1. Set inlet from food grade nitrogen tank to back of the
dispenser to 85 - 90 psi
(.586 - .621 MPa, 586 - 621 kPa, 5.86 - 6.21 bar).
Line OUT
Pressure to Unit
Line IN
N₂ Tank Pressure
Part Number 020007115 06/27/2019
Section 2
Warning
n
Line Out Pressure
Do Not exceed 90 psi
(.621 MPa, 621 kPa, 6.21 bar)
to the unit!
