6. Press the Prime/Clean button, located in the upper left
corner of the refrigeration cabinet, once to prime the coffee
line. The LED around the button will flash ON once, then
OFF signifying that the Prime function has been activated.
7. The pump may run for up to twenty (20) seconds while
priming.
NOTE: If priming fails to complete the system will go into
an error state and the Prime/Clean button LED will blink
continuously until the error is cleared. See "Error Code" on
page 44
8. Once the system is primed it is ready to pour drinks.
9. Check the regulators to make sure the pressures have
not changed and pour a few drinks from each tap to
verify proper flow. Adjust pressures if needed.
10. Check for leaks inside the cabinet and at the taps.
11. Close cabinet door and unit is ready for use.
22

DOOR HINGE REVERSAL

Instructions for installations that require the cabinet door to
be reversed.
1. Use a screwdriver to remove the top metal hinge pin.
NOTE: Lock-tight was used during factory installation, so
extra force may be required.
2. Tilt door out from top and slide bottom pin out of the
hinge bracket. Set door aside.
3. Remove both hinge brackets.
4. Move the nylon hole plug on top of door to hole on
opposite end top of door.
5. Interchange the threaded metal hinge pin and the nylon
hole plug on bottom of door.
NOTE: Lock-tight was used during factory installation, so
extra force may be required.
6. Use the laser etch marks on the cabinet to drill 1/8"
diameter holes for the hinge brackets.
7. Fasten bottom bracket to cabinet.
8. Install top bracket while door is in position.
9. Install nylon pins into old screw holes.

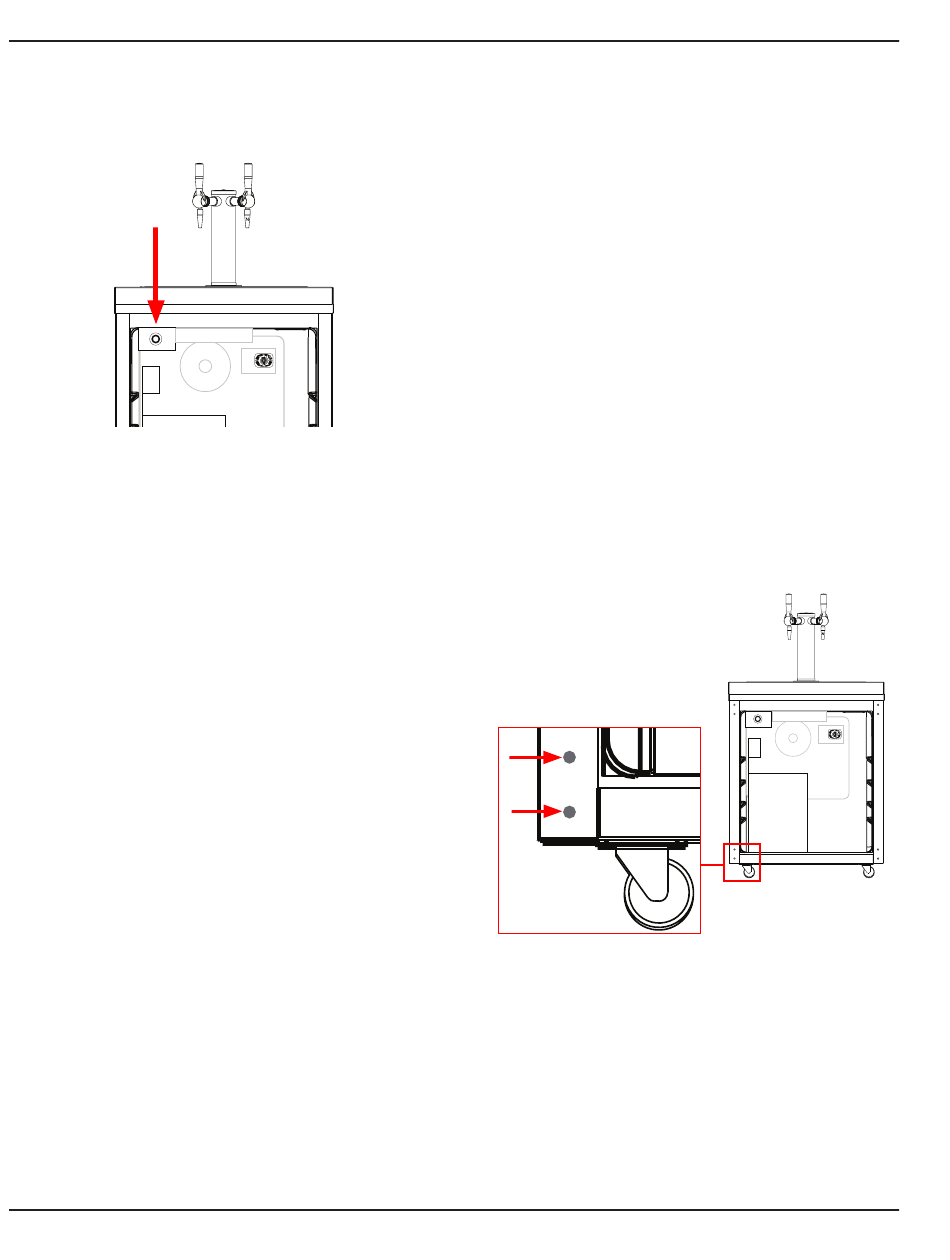

Laser Etch Marks
Part Number 020007115 06/27/2019
