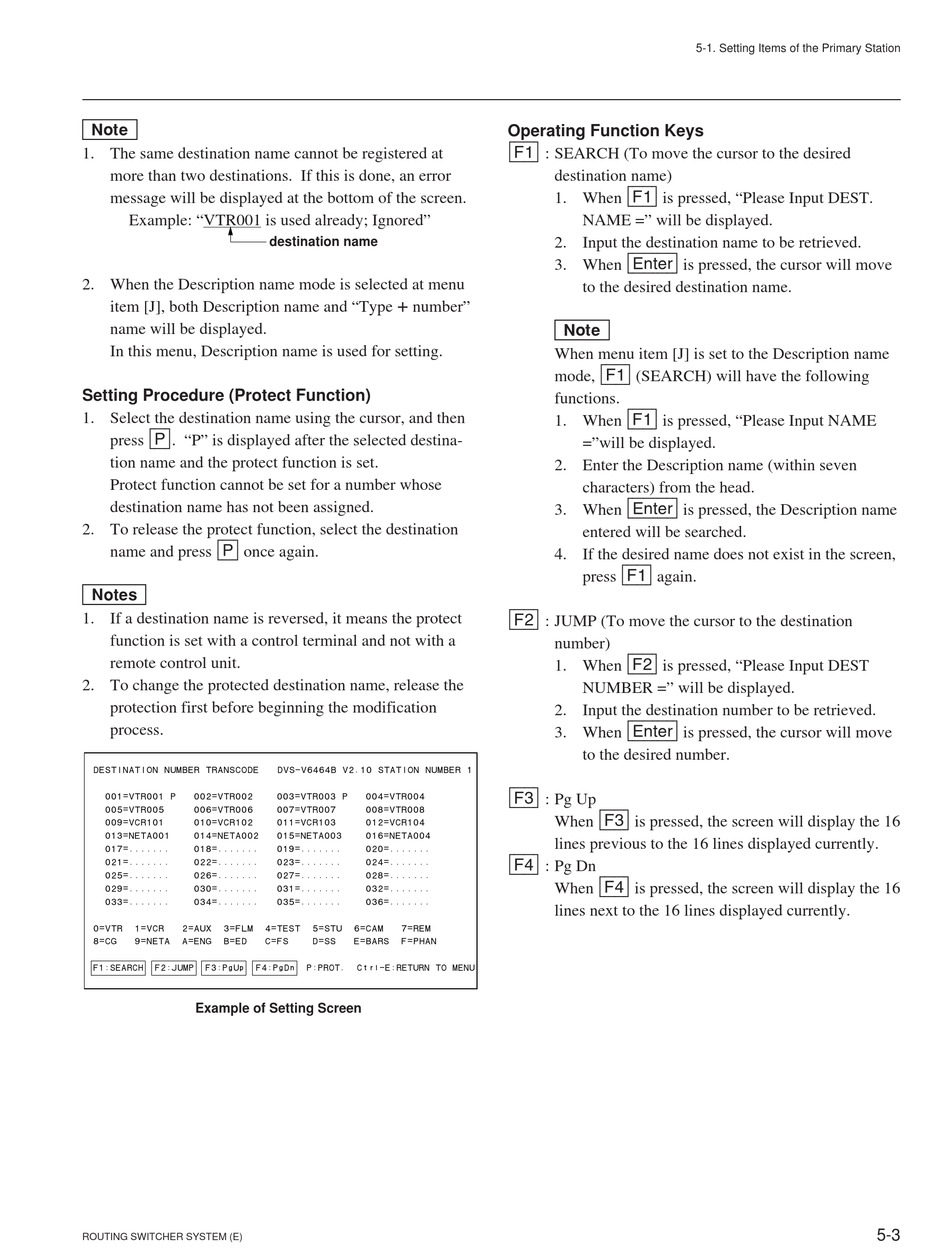

n
1. The same destination name cannot be registered at
more than two destinations. If this is done, an error
message will be displayed at the bottom of the screen.
Example: "VTR001 is used already; Ignored"
2. When the Description name mode is selected at menu
item [J], both Description name and "Type + number"
name will be displayed.
In this menu, Description name is used for setting.
Setting Procedure (Protect Function)
1. Select the destination name using the cursor, and then
press [P]. "P" is displayed after the selected destina-
tion name and the protect function is set.
Protect function cannot be set for a number whose
destination name has not been assigned.
2. To release the protect function, select the destination
name and press [P] once again.
m
1. If a destination name is reversed, it means the protect
function is set with a control terminal and not with a
remote control unit.
2. To change the protected destination name, release the
protection first before beginning the modification
process.
DESTINATION NUMBER TRANSCODE
001=VTR001 P 002=VTR002
005=VTR005 006=VTR006
009=VCR101 010=VCR102
013=NETA001 014=NETA002
017=....... 018=.......
021=....... 022=.......
025=....... 026=.......
029=....... 030=.......
033=....... 034=.......
0=VTR 1=VCR 2=AUX 3=FLM
8=CG 9=NETA A=ENG B=ED
F1:SEARCH F2:JUMP F3:PgUp F4:PgDn P:PROT. Ctrl-E:RETURN TO MENU
Example of Setting Screen
ROUTING SWITCHER SYSTEM (E)
destination name
DVS-V6464B V2.10 STATION NUMBER 1
003=VTR003 P 004=VTR004
007=VTR007 008=VTR008
011=VCR103 012=VCR104
015=NETA003 016=NETA004
019=....... 020=.......
023=....... 024=.......
027=....... 028=.......
031=....... 032=.......
035=....... 036=.......
4=TEST 5=STU 6=CAM 7=REM
C=FS D=SS E=BARS F=PHAN
Operating Function Keys
[F1] : SEARCH (To move the cursor to the desired
destination name)
1. When [F1] is pressed, "Please Input DEST.
NAME =" will be displayed.
2. Input the destination name to be retrieved.
3. When [Enter] is pressed, the cursor will move
to the desired destination name.
n
When menu item [J] is set to the Description name
mode, [F1] (SEARCH) will have the following
functions.
1. When [F1] is pressed, "Please Input NAME
="will be displayed.
2. Enter the Description name (within seven
characters) from the head.
3. When [Enter] is pressed, the Description name
entered will be searched.
4. If the desired name does not exist in the screen,
press [F1] again.
[F2] : JUMP (To move the cursor to the destination
number)
1. When [F2] is pressed, "Please Input DEST
NUMBER =" will be displayed.
2. Input the destination number to be retrieved.
3. When [Enter] is pressed, the cursor will move
to the desired number.
[F3] : Pg Up
When [F3] is pressed, the screen will display the 16
lines previous to the 16 lines displayed currently.
[F4] : Pg Dn
When [F4] is pressed, the screen will display the 16
lines next to the 16 lines displayed currently.
5-1. Setting Items of the Primary Station
