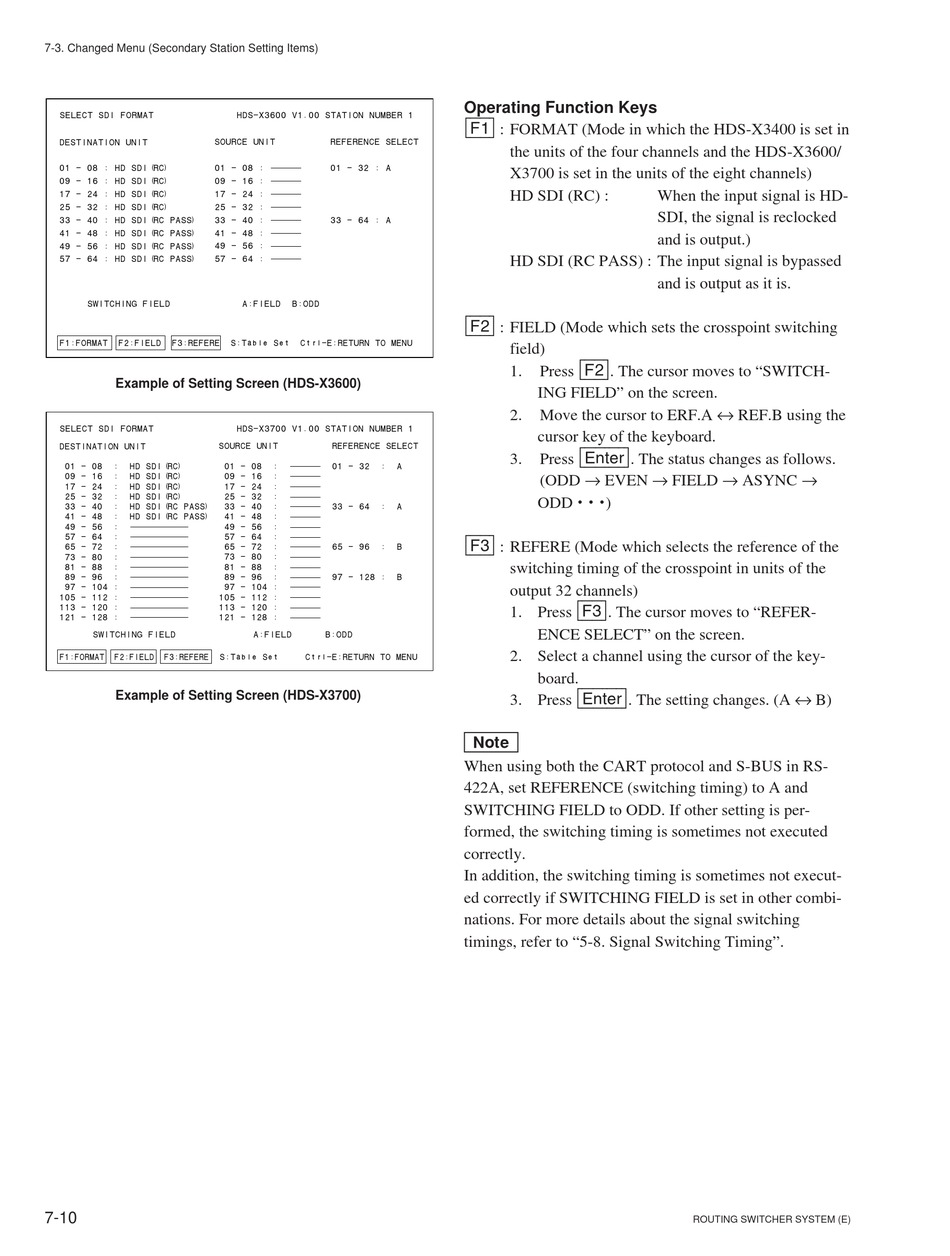

7-3. Changed Menu (Secondary Station Setting Items)
SELECT SDI FORMAT
DESTINATION UNIT SOURCE UNIT
01 - 08 : HD SDI(RC) 01 - 08 :
09 - 16 : HD SDI(RC) 09 - 16 :
17 - 24 : HD SDI(RC) 17 - 24 :
25 - 32 : HD SDI(RC) 25 - 32 :
33 - 40 : HD SDI(RC PASS) 33 - 40 :
41 - 48 : HD SDI(RC PASS)Ł 41 - 48 : Ł
49 - 56 : HD SDI(RC PASS)Ł 49 - 56 : Ł
57 - 64 : HD SDI(RC PASS) 57 - 64 :
SWITCHING FIELD
F1:FORMAT F2:FIELD F3:REFERE S:Table Set Ctrl-E:RETURN TO MENU
Example of Setting Screen (HDS-X3600)
SELECT SDI FORMAT
DESTINATION UNIT SOURCE UNIT
01 - 08 : HD SDI(RC)
09 - 16 : HD SDI(RC)
17 - 24 : HD SDI(RC)
25 - 32 : HD SDI(RC)
33 - 40 : HD SDI(RC PASS)
41 - 48 : HD SDI(RC PASS)
49 - 56 :
57 - 64 :
65 - 72 :
73 - 80 :
81 - 88 :
89 - 96 :
97 - 104 :
105 - 112 : 105 - 112 :
113 - 120 : 113 - 120 :
121 - 128 : 121 - 128 :
SWITCHING FIELD
F1:FORMAT F2:FIELD F3:REFERE S:Table Set
Example of Setting Screen (HDS-X3700)
7-10
HDS-X3600 V1.00 STATION NUMBER 1
REFERENCE SELECT
01 - 32 : A
33 - 64 : AŁ
A:FIELD B:ODD
HDS-X3700 V1.00 STATION NUMBER 1
REFERENCE SELECT
01 - 08 : 01 - 32 : A
09 - 16 :
17 - 24 :
25 - 32 :
33 - 40 : 33 - 64 : A
41 - 48 :
49 - 56 :
57 - 64 :
65 - 72 : 65 - 96 : B
73 - 80 :
81 - 88 :
89 - 96 : 97 - 128 : B
97 - 104 :
A:FIELD B:ODD
Ctrl-E:RETURN TO MENU
Operating Function Keys
[F1] : FORMAT (Mode in which the HDS-X3400 is set in
the units of the four channels and the HDS-X3600/
X3700 is set in the units of the eight channels)
HD SDI (RC) :
HD SDI (RC PASS) : The input signal is bypassed
[F2] : FIELD (Mode which sets the crosspoint switching
field)
Press [F2]. The cursor moves to "SWITCH-
1.
ING FIELD" on the screen.
2. Move the cursor to ERF.A
cursor key of the keyboard.
Press [Enter]. The status changes as follows.
3.
(ODD EVEN
ODD . . .)
[F3] : REFERE (Mode which selects the reference of the
switching timing of the crosspoint in units of the
output 32 channels)
1. Press [F3]. The cursor moves to "REFER-
ENCE SELECT" on the screen.
2. Select a channel using the cursor of the key-
board.
3. Press [Enter]. The setting changes. (A
n
When using both the CART protocol and S-BUS in RS-
422A, set REFERENCE (switching timing) to A and
SWITCHING FIELD to ODD. If other setting is per-
formed, the switching timing is sometimes not executed
correctly.
In addition, the switching timing is sometimes not execut-
ed correctly if SWITCHING FIELD is set in other combi-
nations. For more details about the signal switching
timings, refer to "5-8. Signal Switching Timing".
When the input signal is HD-
SDI, the signal is reclocked
and is output.)
and is output as it is.
REF.B using the
FIELD ASYNC
B)
ROUTING SWITCHER SYSTEM (E)
