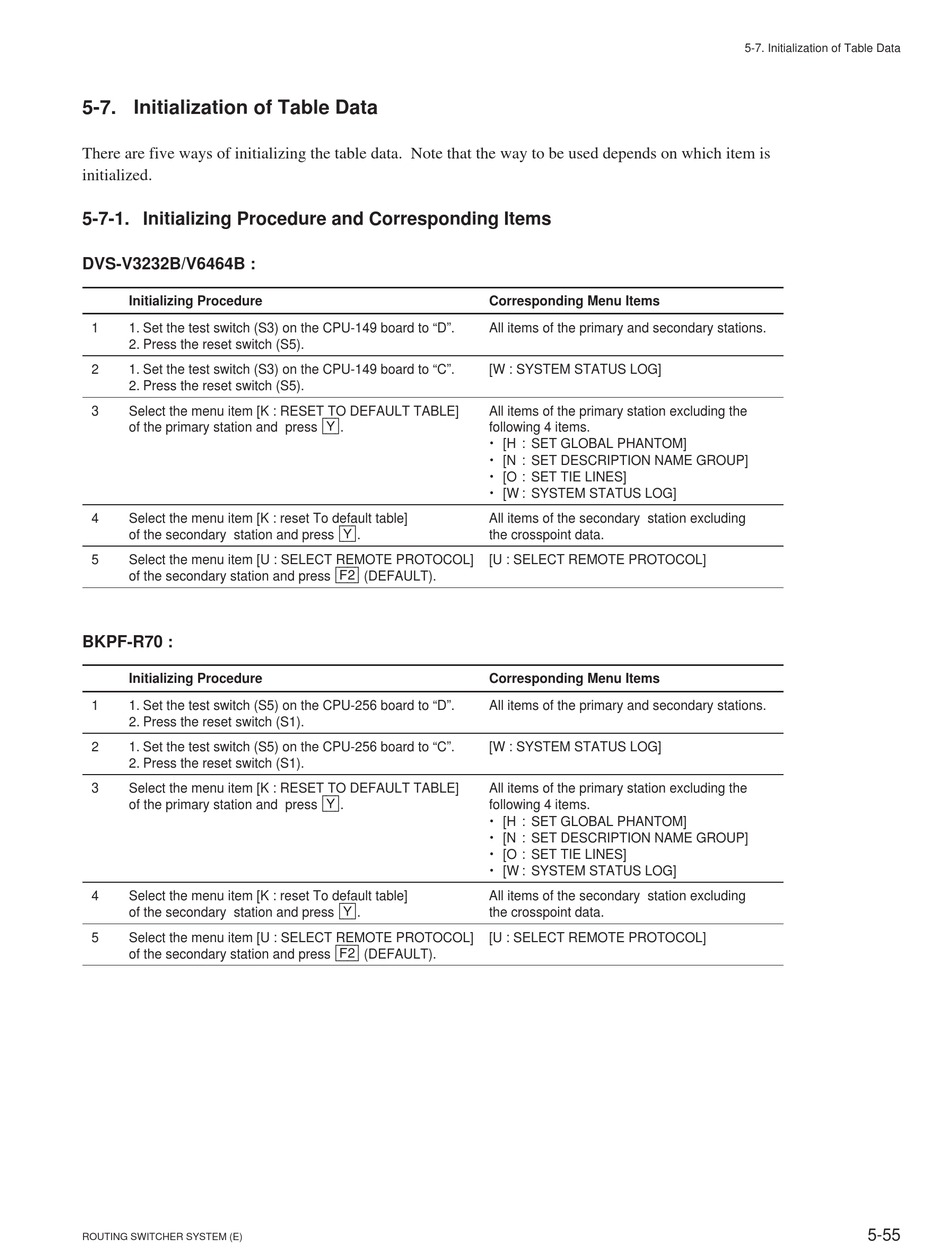

5-7. Initialization of Table Data

There are five ways of initializing the table data. Note that the way to be used depends on which item is
initialized.

5-7-1. Initializing Procedure and Corresponding Items

DVS-V3232B/V6464B :
Initializing Procedure
1 1. Set the test switch (S3) on the CPU-149 board to "D".
2. Press the reset switch (S5).
2 1. Set the test switch (S3) on the CPU-149 board to "C".
2. Press the reset switch (S5).
3 Select the menu item [K : RESET TO DEFAULT TABLE]
of the primary station and press [Y].
4 Select the menu item [K : reset To default table]
of the secondary station and press [Y].
5 Select the menu item [U : SELECT REMOTE PROTOCOL]
of the secondary station and press [F2] (DEFAULT).
BKPF-R70 :
Initializing Procedure
1 1. Set the test switch (S5) on the CPU-256 board to "D".
2. Press the reset switch (S1).
2 1. Set the test switch (S5) on the CPU-256 board to "C".
2. Press the reset switch (S1).
3 Select the menu item [K : RESET TO DEFAULT TABLE]
of the primary station and press [Y].
4 Select the menu item [K : reset To default table]
of the secondary station and press [Y].
5 Select the menu item [U : SELECT REMOTE PROTOCOL]
of the secondary station and press [F2] (DEFAULT).
ROUTING SWITCHER SYSTEM (E)
Corresponding Menu Items
All items of the primary and secondary stations.
[W : SYSTEM STATUS LOG]
All items of the primary station excluding the
following 4 items.
. [H : SET GLOBAL PHANTOM]
. [N : SET DESCRIPTION NAME GROUP]
. [O : SET TIE LINES]
. [W : SYSTEM STATUS LOG]
All items of the secondary station excluding
the crosspoint data.
[U : SELECT REMOTE PROTOCOL]
Corresponding Menu Items
All items of the primary and secondary stations.
[W : SYSTEM STATUS LOG]
All items of the primary station excluding the
following 4 items.
. [H : SET GLOBAL PHANTOM]
. [N : SET DESCRIPTION NAME GROUP]
. [O : SET TIE LINES]
. [W : SYSTEM STATUS LOG]
All items of the secondary station excluding
the crosspoint data.
[U : SELECT REMOTE PROTOCOL]
