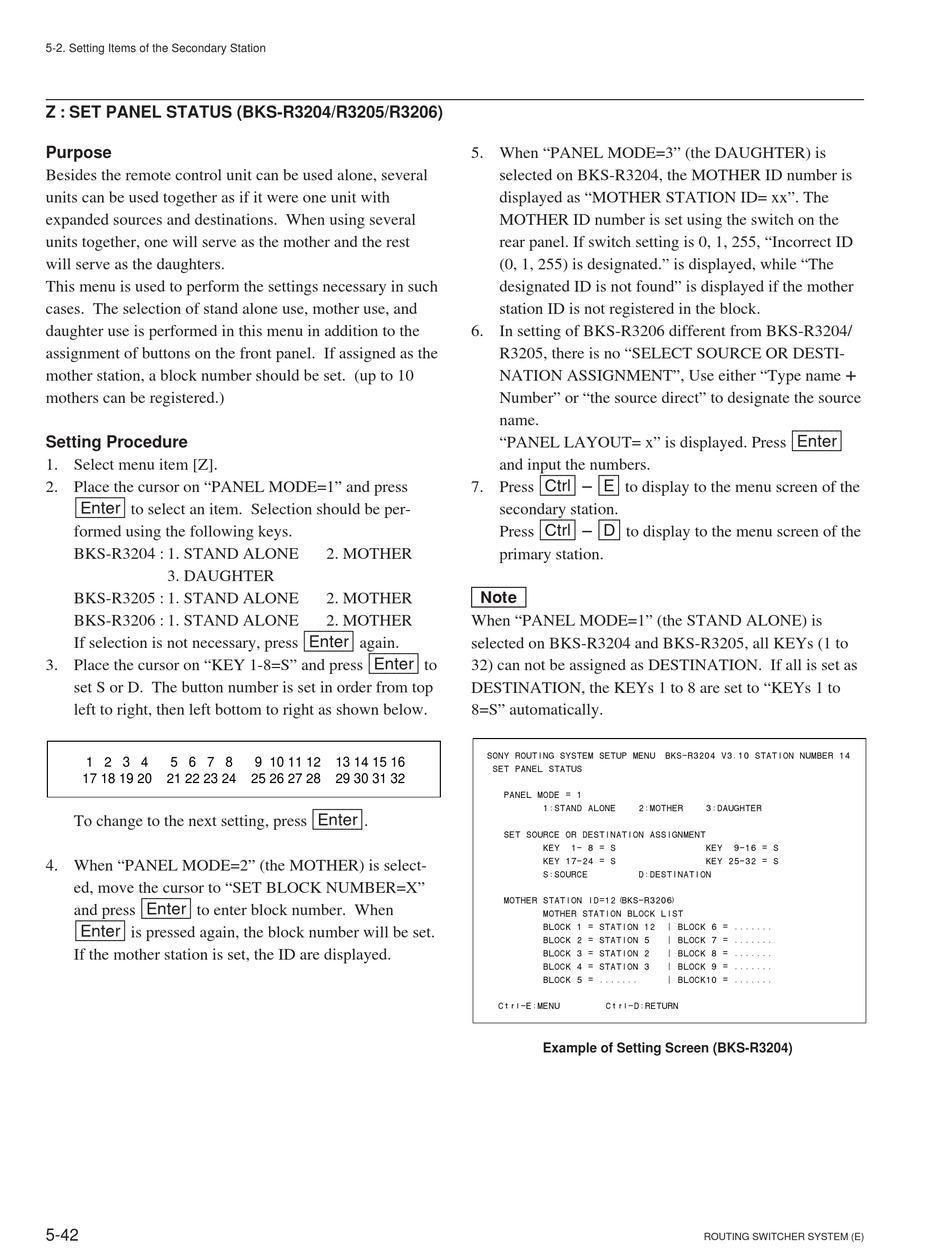

5-2. Setting Items of the Secondary Station

Z : SET PANEL STATUS (BKS-R3204/R3205/R3206)

Purpose
Besides the remote control unit can be used alone, several
units can be used together as if it were one unit with
expanded sources and destinations. When using several
units together, one will serve as the mother and the rest
will serve as the daughters.
This menu is used to perform the settings necessary in such
cases. The selection of stand alone use, mother use, and
daughter use is performed in this menu in addition to the
assignment of buttons on the front panel. If assigned as the
mother station, a block number should be set. (up to 10
mothers can be registered.)
Setting Procedure
1. Select menu item [Z].
2. Place the cursor on "PANEL MODE=1" and press
[Enter] to select an item. Selection should be per-
formed using the following keys.
BKS-R3204 : 1. STAND ALONE
3. DAUGHTER
BKS-R3205 : 1. STAND ALONE
BKS-R3206 : 1. STAND ALONE
If selection is not necessary, press [Enter] again.
3. Place the cursor on "KEY 1-8=S" and press [Enter] to
set S or D. The button number is set in order from top
left to right, then left bottom to right as shown below.
1 2 3 4 5 6 7 8
17 18 19 20 21 22 23 24
To change to the next setting, press [Enter].
4. When "PANEL MODE=2" (the MOTHER) is select-
ed, move the cursor to "SET BLOCK NUMBER=X"
and press [Enter] to enter block number. When
[Enter] is pressed again, the block number will be set.
If the mother station is set, the ID are displayed.
5-42
2. MOTHER
2. MOTHER
2. MOTHER
9 10 11 12 13 14 15 16
25 26 27 28 29 30 31 32
5. When "PANEL MODE=3" (the DAUGHTER) is
selected on BKS-R3204, the MOTHER ID number is
displayed as "MOTHER STATION ID= xx". The
MOTHER ID number is set using the switch on the
rear panel. If switch setting is 0, 1, 255, "Incorrect ID
(0, 1, 255) is designated." is displayed, while "The
designated ID is not found" is displayed if the mother
station ID is not registered in the block.
6. In setting of BKS-R3206 different from BKS-R3204/
R3205, there is no "SELECT SOURCE OR DESTI-
NATION ASSIGNMENT", Use either "Type name +
Number" or "the source direct" to designate the source
name.
"PANEL LAYOUT= x" is displayed. Press [Enter]
and input the numbers.
7. Press [Ctrl] _ [E] to display to the menu screen of the
secondary station.
Press [Ctrl] _ [D] to display to the menu screen of the
primary station.
n
When "PANEL MODE=1" (the STAND ALONE) is
selected on BKS-R3204 and BKS-R3205, all KEYs (1 to
32) can not be assigned as DESTINATION. If all is set as
DESTINATION, the KEYs 1 to 8 are set to "KEYs 1 to
8=S" automatically.
SONY ROUTING SYSTEM SETUP MENU BKS-R3204 V3.10 STATION NUMBER 14
SET PANEL STATUS
PANEL MODE = 1
1:STAND ALONE 2:MOTHER
SET SOURCE OR DESTINATION ASSIGNMENT
KEY 1- 8 = S
KEY 17-24 = S
S:SOURCE D:DESTINATION
MOTHER STATION ID=12(BKS-R3206)
MOTHER STATION BLOCK LIST
BLOCK 1 = STATION 12 | BLOCK 6 = .......
BLOCK 2 = STATION 5
BLOCK 3 = STATION 2
BLOCK 4 = STATION 3
BLOCK 5 = .......
Ctrl-E:MENU Ctrl-D:RETURN
Example of Setting Screen (BKS-R3204)
3:DAUGHTER
KEY 9-16 = S
KEY 25-32 = S
| BLOCK 7 = .......
| BLOCK 8 = .......
| BLOCK 9 = .......
| BLOCK10 = .......
