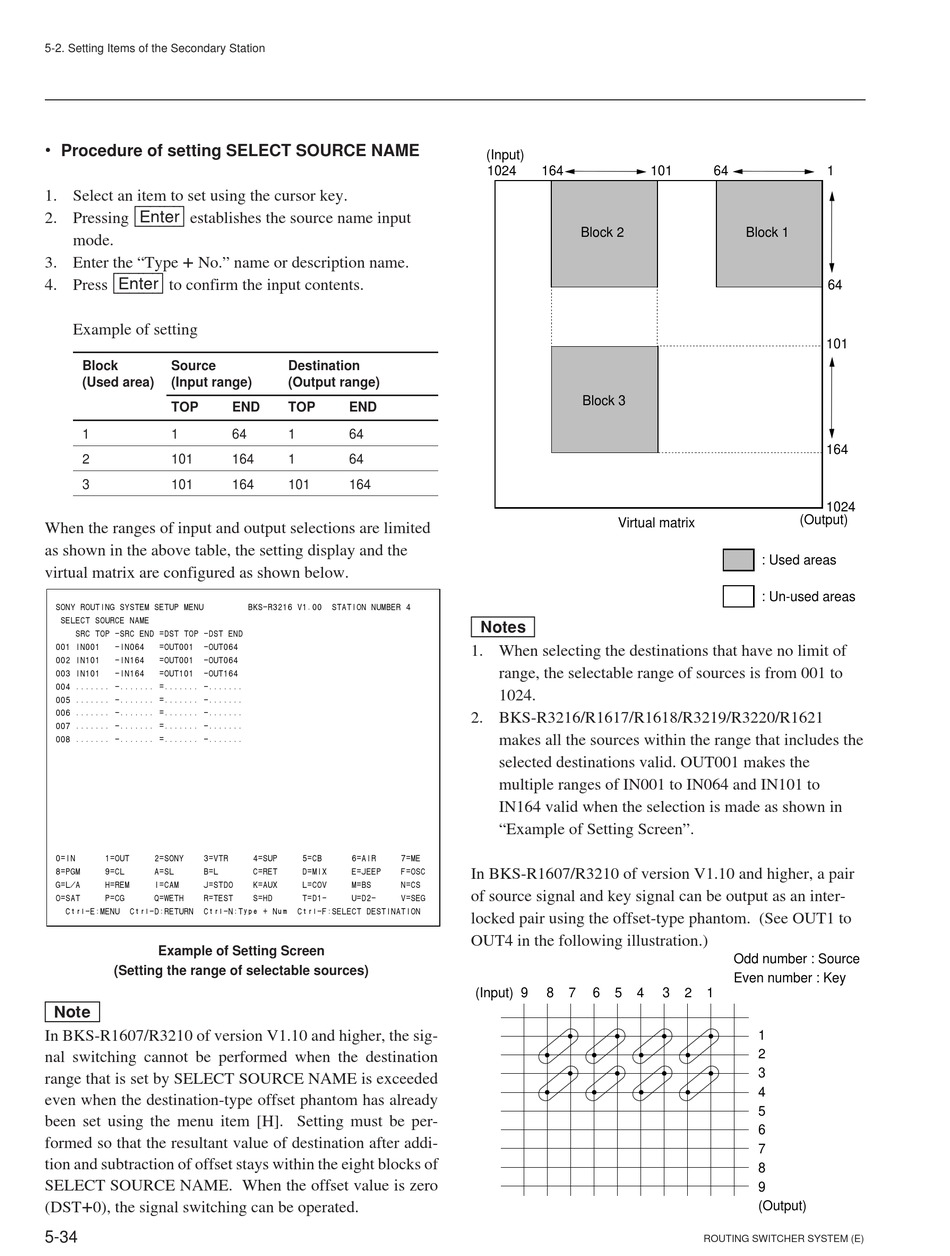

5-2. Setting Items of the Secondary Station
. . . . . Procedure of setting SELECT SOURCE NAME
1. Select an item to set using the cursor key.
2. Pressing [Enter] establishes the source name input
mode.
3. Enter the "Type + No." name or description name.
4. Press [Enter] to confirm the input contents.
Example of setting
Block Source
(Used area) (Input range)
TOP
1 1
2 101
3 101
When the ranges of input and output selections are limited
as shown in the above table, the setting display and the
virtual matrix are configured as shown below.
SONY ROUTING SYSTEM SETUP MENU
SELECT SOURCE NAME
SRC TOP -SRC END =DST TOP -DST END
001 IN001 -IN064 =OUT001 -OUT064
002 IN101 -IN164 =OUT001 -OUT064
003 IN101 -IN164 =OUT101 -OUT164
004 ....... -....... =....... -.......
005 ....... -....... =....... -.......
006 ....... -....... =....... -.......
007 ....... -....... =....... -.......
008 ....... -....... =....... -.......
0=IN 1=OUT 2=SONY 3=VTR
8=PGM 9=CL A=SL B=L
G=L/A H=REM I=CAM J=STDO
O=SAT P=CG Q=WETH R=TEST
Ctrl-E:MENU Ctrl-D:RETURN Ctrl-N:Type + Num Ctrl-F:SELECT DESTINATION
Example of Setting Screen
(Setting the range of selectable sources)
n
In BKS-R1607/R3210 of version V1.10 and higher, the sig-
nal switching cannot be performed when the destination
range that is set by SELECT SOURCE NAME is exceeded
even when the destination-type offset phantom has already
been set using the menu item [H]. Setting must be per-
formed so that the resultant value of destination after addi-
tion and subtraction of offset stays within the eight blocks of
SELECT SOURCE NAME. When the offset value is zero
(DST+0), the signal switching can be operated.
5-34
Destination
(Output range)
END TOP END
64 1 64
164 1 64
164 101 164
BKS-R3216 V1.00 STATION NUMBER 4
4=SUP 5=CB 6=AIR 7=ME
C=RET D=MIX E=JEEP F=OSC
K=AUX L=COV M=BS N=CS
S=HD T=D1- U=D2- V=SEG
(Input)
1024 164
Block 2
Block 3
Virtual matrix
m
1. When selecting the destinations that have no limit of
range, the selectable range of sources is from 001 to
1024.
2. BKS-R3216/R1617/R1618/R3219/R3220/R1621
makes all the sources within the range that includes the
selected destinations valid. OUT001 makes the
multiple ranges of IN001 to IN064 and IN101 to
IN164 valid when the selection is made as shown in
"Example of Setting Screen".
In BKS-R1607/R3210 of version V1.10 and higher, a pair
of source signal and key signal can be output as an inter-
locked pair using the offset-type phantom. (See OUT1 to
OUT4 in the following illustration.)
(Input) 9 8 7 6 5 4
101 64 1
Block 1
64
101
164
1024
(Output)
: Used areas
: Un-used areas
Odd number : Source
Even number : Key
3 2 1
1
2
3
4
5
6
7
8
9
(Output)
