1-2. System Control

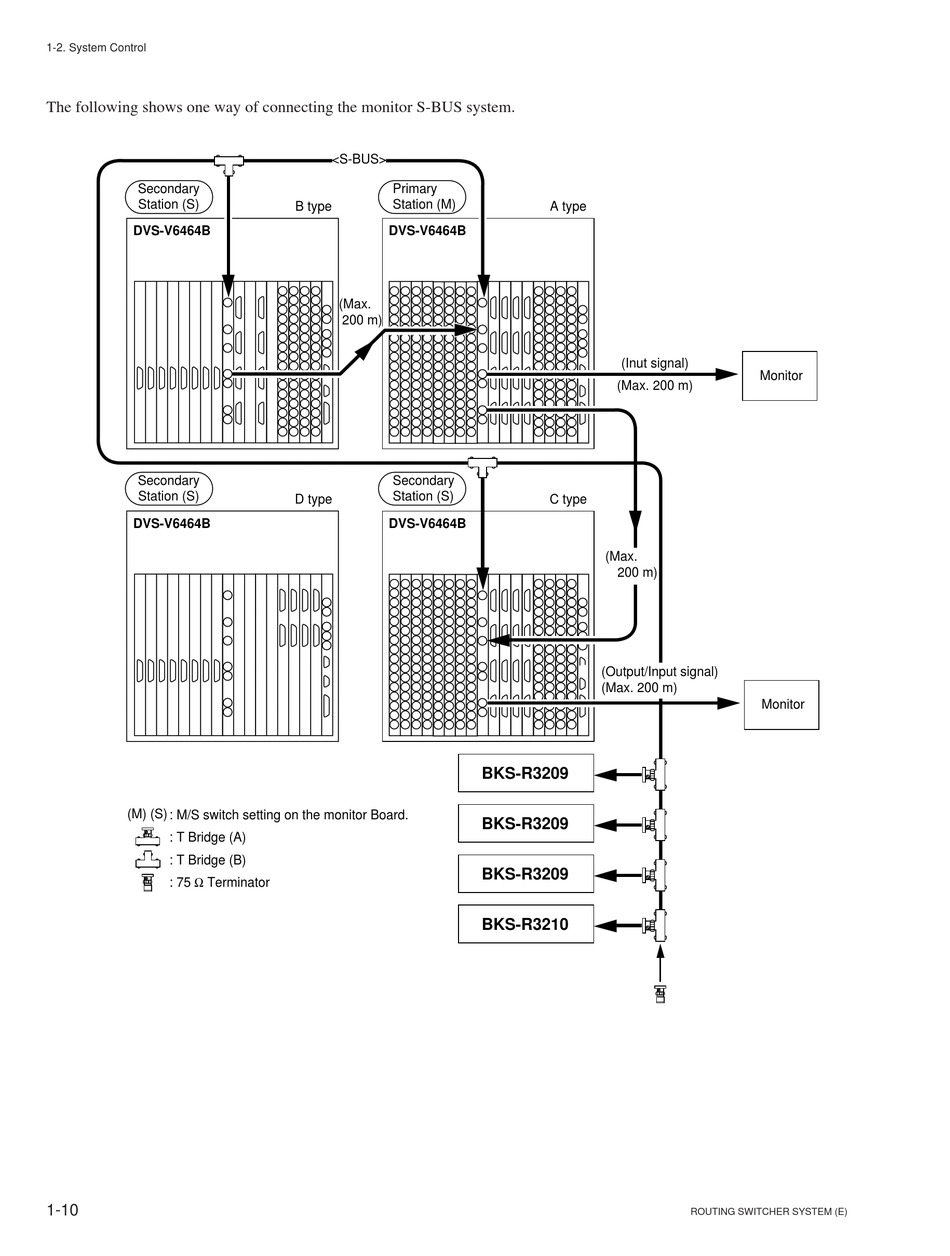

The following shows one way of connecting the monitor S-BUS system.
Secondary
Station (S)
DVS-V6464B
Secondary
Station (S)
DVS-V6464B
(M) (S)
: M/S switch setting on the monitor Board.
: T Bridge (A)
: T Bridge (B)
: 75 Z Terminator
1-10
<S-BUS>
Primary
Station (M)
B type
DVS-V6464B
(Max.
200 m)
Secondary
Station (S)
D type
DVS-V6464B
A type
(Inut signal)
(Max. 200 m)
C type
(Max.
200 m)
(Output/Input signal)
(Max. 200 m)
BKS-R3209
BKS-R3209
BKS-R3209
BKS-R3210
Monitor
Monitor
ROUTING SWITCHER SYSTEM (E)
