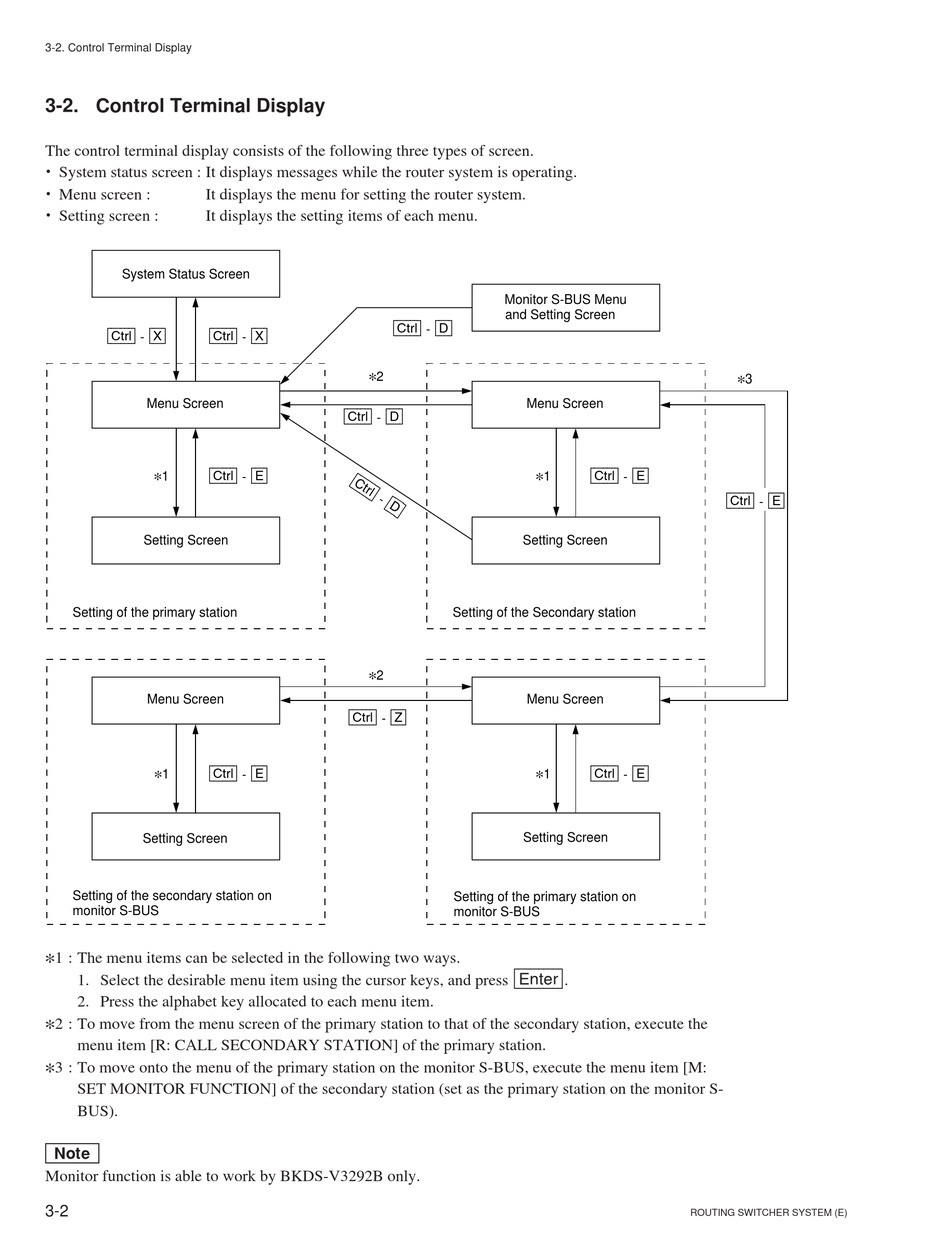

3-2. Control Terminal Display

3-2. Control Terminal Display
The control terminal display consists of the following three types of screen.
. System status screen : It displays messages while the router system is operating.
. Menu screen :
It displays the menu for setting the router system.
. Setting screen :
It displays the setting items of each menu.
System Status Screen
[Ctrl] - [X] [Ctrl] - [X]
Menu Screen
[Ctrl] - [E]
*1
Setting Screen
Setting of the primary station
Menu Screen
[Ctrl] - [E]
*1
Setting Screen
Setting of the secondary station on
monitor S-BUS
*1 : The menu items can be selected in the following two ways.
1. Select the desirable menu item using the cursor keys, and press [Enter].
2. Press the alphabet key allocated to each menu item.
*2 : To move from the menu screen of the primary station to that of the secondary station, execute the
menu item [R: CALL SECONDARY STATION] of the primary station.
*3 : To move onto the menu of the primary station on the monitor S-BUS, execute the menu item [M:
SET MONITOR FUNCTION] of the secondary station (set as the primary station on the monitor S-
BUS).
n
Monitor function is able to work by BKDS-V3292B only.
3-2
Monitor S-BUS Menu
and Setting Screen
[Ctrl] - [D]
*2
[Ctrl] - [D]
Setting of the Secondary station
*2
[Ctrl] - [Z]
Setting of the primary station on
monitor S-BUS
Menu Screen
[Ctrl] - [E]
*1
Setting Screen
Menu Screen
[Ctrl] - [E]
*1
Setting Screen
ROUTING SWITCHER SYSTEM (E)
*3
[Ctrl] - [E]
