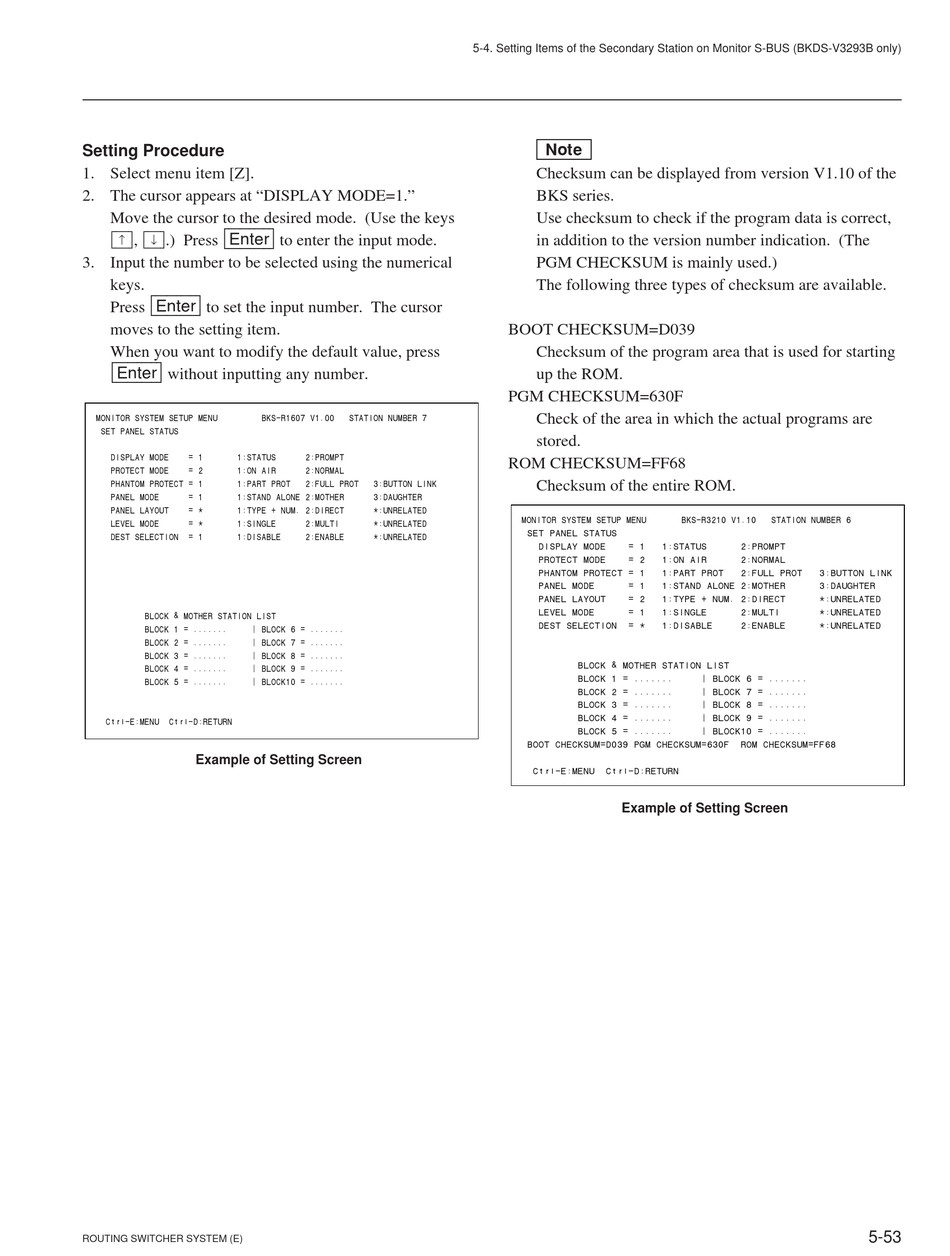

Sony BKS-R3202/R3210/R3220 Installation Manual page 125

Setting Procedure
1. Select menu item [Z].
2. The cursor appears at "DISPLAY MODE=1."
Move the cursor to the desired mode. (Use the keys
[(], [)].) Press [Enter] to enter the input mode.
3. Input the number to be selected using the numerical
keys.
Press [Enter] to set the input number. The cursor
moves to the setting item.
When you want to modify the default value, press
[Enter] without inputting any number.
MONITOR SYSTEM SETUP MENU
SET PANEL STATUS
DISPLAY MODE = 1 1:STATUS
PROTECT MODE = 2 1:ON AIR
PHANTOM PROTECT = 1 1:PART PROT
PANEL MODE = 1 1:STAND ALONE 2:MOTHER
PANEL LAYOUT = * 1:TYPE + NUM. 2:DIRECT
LEVEL MODE = * 1:SINGLE
DEST SELECTION = 1 1:DISABLE
BLOCK & MOTHER STATION LIST
BLOCK 1 = ....... | BLOCK 6 = .......
BLOCK 2 = ....... | BLOCK 7 = .......
BLOCK 3 = ....... | BLOCK 8 = .......
BLOCK 4 = ....... | BLOCK 9 = .......
BLOCK 5 = ....... | BLOCK10 = .......
Ctrl-E:MENU Ctrl-D:RETURN
Example of Setting Screen
ROUTING SWITCHER SYSTEM (E)
BKS-R1607 V1.00 STATION NUMBER 7
2:PROMPT
2:NORMAL
2:FULL PROT 3:BUTTON LINK
3:DAUGHTER
*:UNRELATED
2:MULTI *:UNRELATED
2:ENABLE *:UNRELATED
5-4. Setting Items of the Secondary Station on Monitor S-BUS (BKDS-V3293B only)
n
Checksum can be displayed from version V1.10 of the
BKS series.
Use checksum to check if the program data is correct,
in addition to the version number indication. (The
PGM CHECKSUM is mainly used.)
The following three types of checksum are available.
BOOT CHECKSUM=D039
Checksum of the program area that is used for starting
up the ROM.
PGM CHECKSUM=630F
Check of the area in which the actual programs are
stored.
ROM CHECKSUM=FF68
Checksum of the entire ROM.
MONITOR SYSTEM SETUP MENU
SET PANEL STATUS
DISPLAY MODE = 1
PROTECT MODE = 2
PHANTOM PROTECT = 1
PANEL MODE = 1
PANEL LAYOUT = 2
LEVEL MODE = 1
DEST SELECTION = *
BLOCK & MOTHER STATION LIST
BLOCK 1 = .......
BLOCK 2 = .......
BLOCK 3 = .......
BLOCK 4 = .......
BLOCK 5 = .......
BOOT CHECKSUM=D039 PGM CHECKSUM=630F ROM CHECKSUM=FF68
Ctrl-E:MENU Ctrl-D:RETURN
Example of Setting Screen
BKS-R3210 V1.10 STATION NUMBER 6
1:STATUS 2:PROMPT
1:ON AIR 2:NORMAL
1:PART PROT 2:FULL PROT 3:BUTTON LINK
1:STAND ALONE 2:MOTHER 3:DAUGHTER
1:TYPE + NUM. 2:DIRECT *:UNRELATED
1:SINGLE 2:MULTI *:UNRELATED
1:DISABLE 2:ENABLE *:UNRELATED
| BLOCK 6 = .......
| BLOCK 7 = .......
| BLOCK 8 = .......
| BLOCK 9 = .......
| BLOCK10 = .......
5-53
