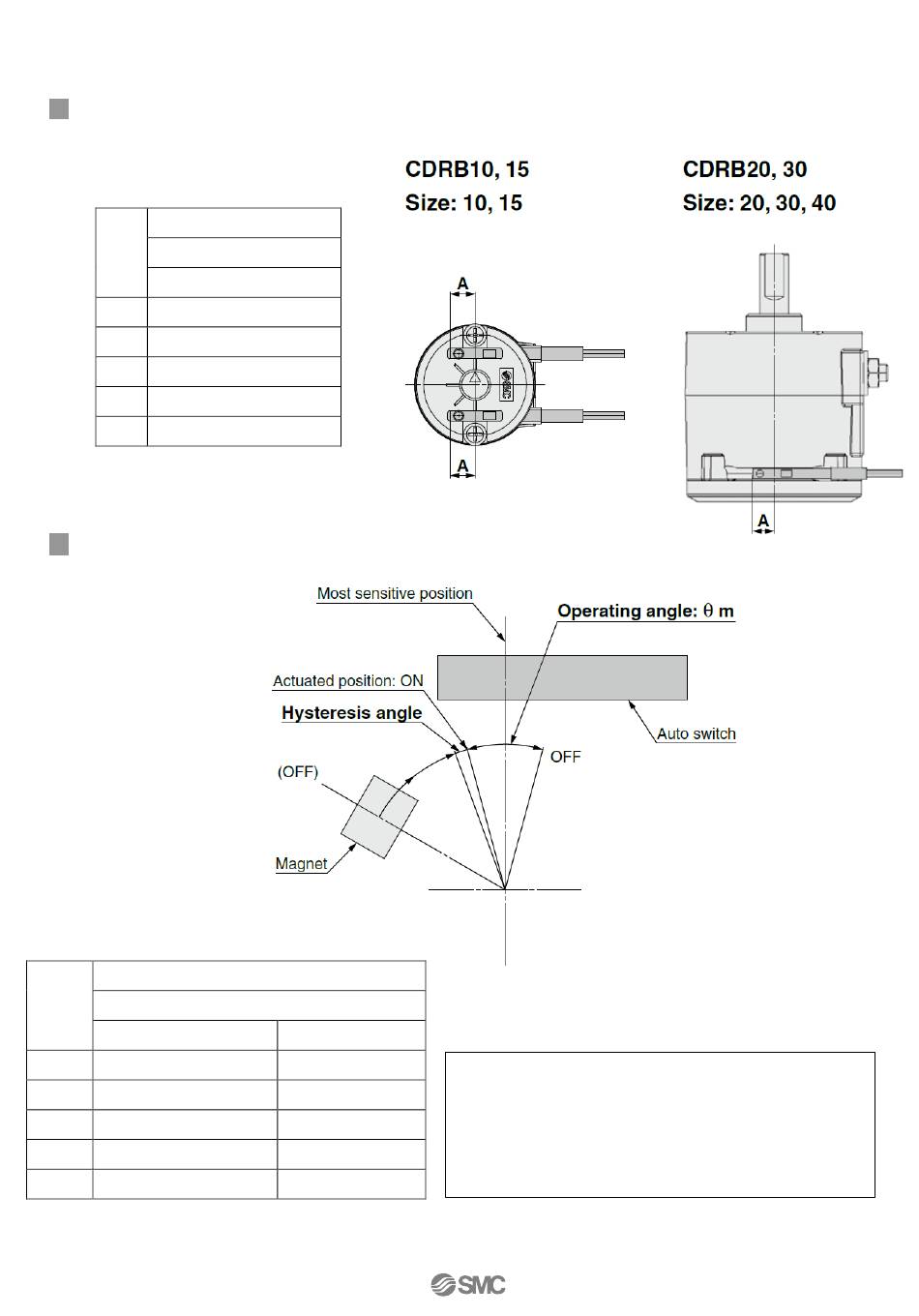

Auto Switch Proper Mounting Position (at Rotation End Detection)
Solid state auto switch
D-M9□
Size
10
15
20
30
40
Operating Angle and Hysteresis Angle
Solid state auto switch
Size
Operating angle (θm) Hysteresis angle
10 36 o
15 36 o
20 20 o
o
30 20
o
40 20
(mm)
A
6
6
6
6
6
D-M9□
5 o
5 o
5 o
o
5
o
5
Note) Since the figures in the table on the left are
provided as a guideline only, they cannot
be guaranteed. Adjust the auto switch after
confirming the operating conditions in the
actual setting.
Proper tightening torque: 0.05 to 0.15 [N·m]
7
