Basic Circuit - SMC Networks C RB 10 Series Operation Manual

2. Basic circuit

Circuit Configuration

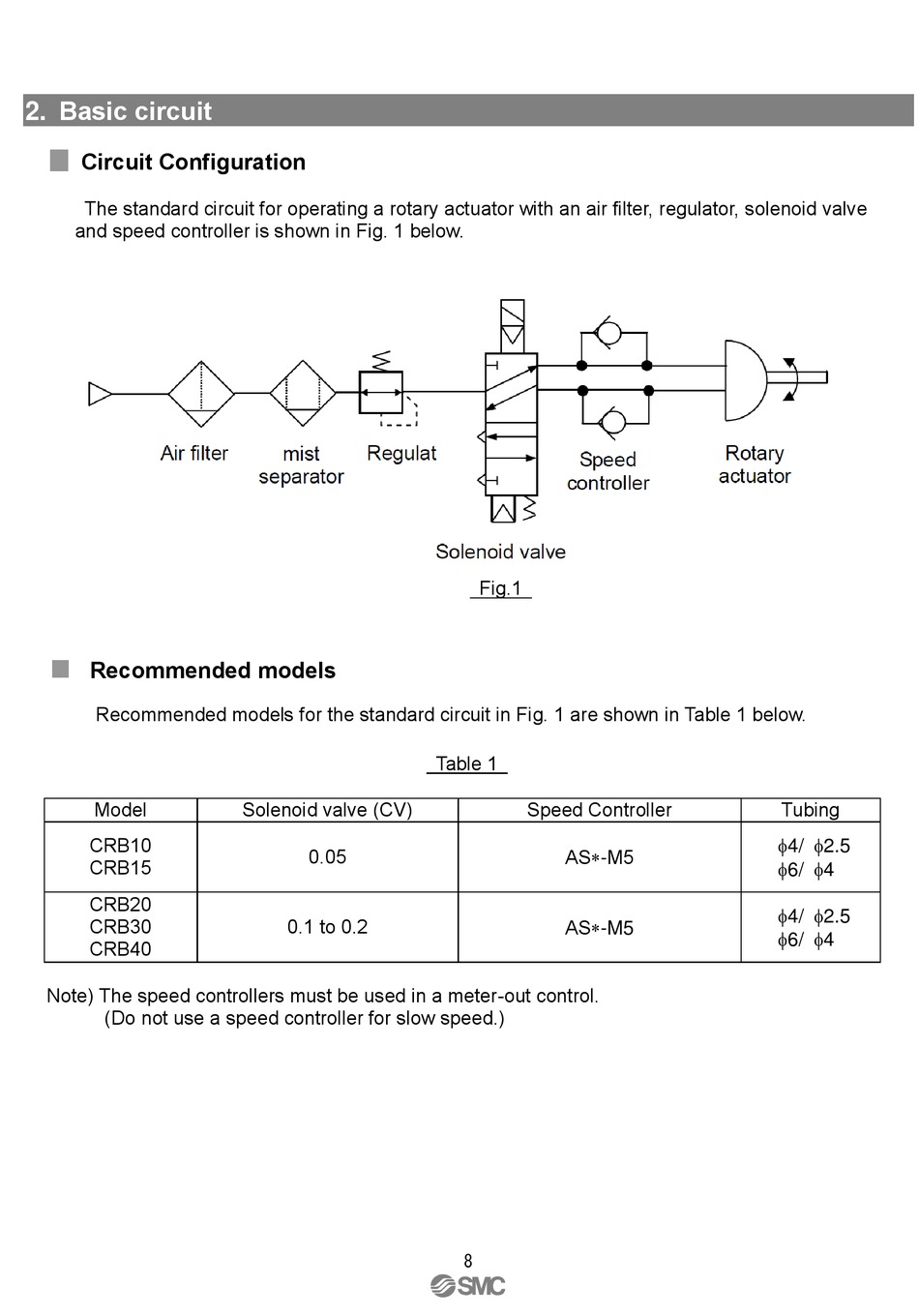

The standard circuit for operating a rotary actuator with an air filter, regulator, solenoid valve
and speed controller is shown in Fig. 1 below.
エアフ
ィルタ
Recommended models
Recommended models for the standard circuit in Fig. 1 are shown in Table 1 below.
Model
CRB10
CRB15
CRB20
CRB30
CRB40
Note) The speed controllers must be used in a meter-out control.
(Do not use a speed controller for slow speed.)
ﾐｽﾄ
レギュ
ｾﾊﾟﾚｰﾀ
レータ
Solenoid valve (CV)
0.05
0.1 to 0.2
ｽﾋﾟｰﾄﾞ・
ｺﾝﾄﾛｰﾗ
電磁弁
Fig.1
Table 1
Speed Controller
AS-M5
AS-M5
8
ロータリ･
アクチュ
エータ
Tubing
4/ 2.5
6/ 4
4/ 2.5
6/ 4
