Assembly and installation

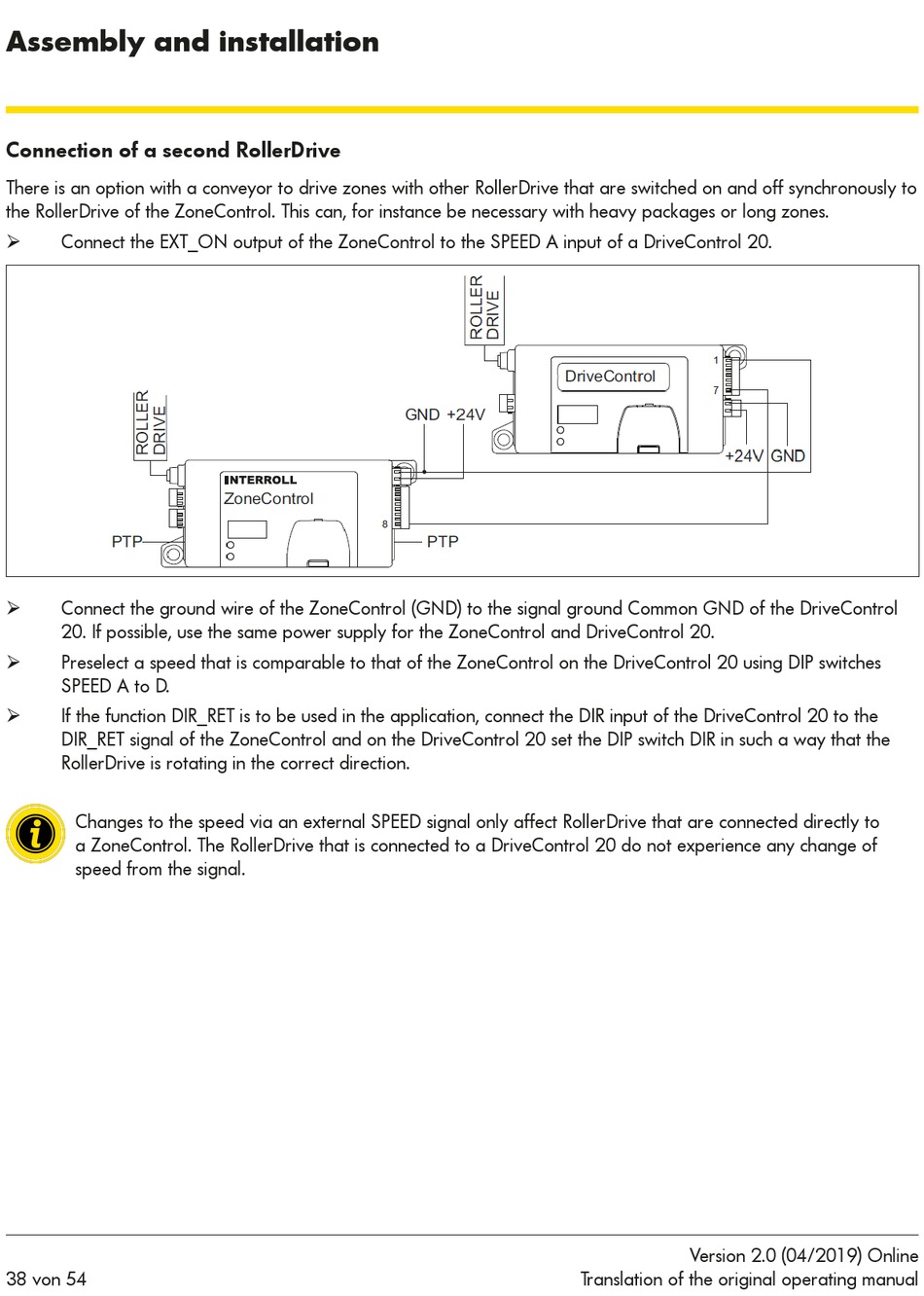

Connection of a second RollerDrive

There is an option with a conveyor to drive zones with other RollerDrive that are switched on and off synchronously to
the RollerDrive of the ZoneControl. This can, for instance be necessary with heavy packages or long zones.
Connect the EXT_ON output of the ZoneControl to the SPEED A input of a DriveControl 20.
¾
Connect the ground wire of the ZoneControl (GND) to the signal ground Common GND of the DriveControl
¾
20. If possible, use the same power supply for the ZoneControl and DriveControl 20.
Preselect a speed that is comparable to that of the ZoneControl on the DriveControl 20 using DIP switches
¾
SPEED A to D.
If the function DIR_RET is to be used in the application, connect the DIR input of the DriveControl 20 to the
¾
DIR_RET signal of the ZoneControl and on the DriveControl 20 set the DIP switch DIR in such a way that the
RollerDrive is rotating in the correct direction.
Changes to the speed via an external SPEED signal only affect RollerDrive that are connected directly to
a ZoneControl. The RollerDrive that is connected to a DriveControl 20 do not experience any change of
speed from the signal.
