3.7

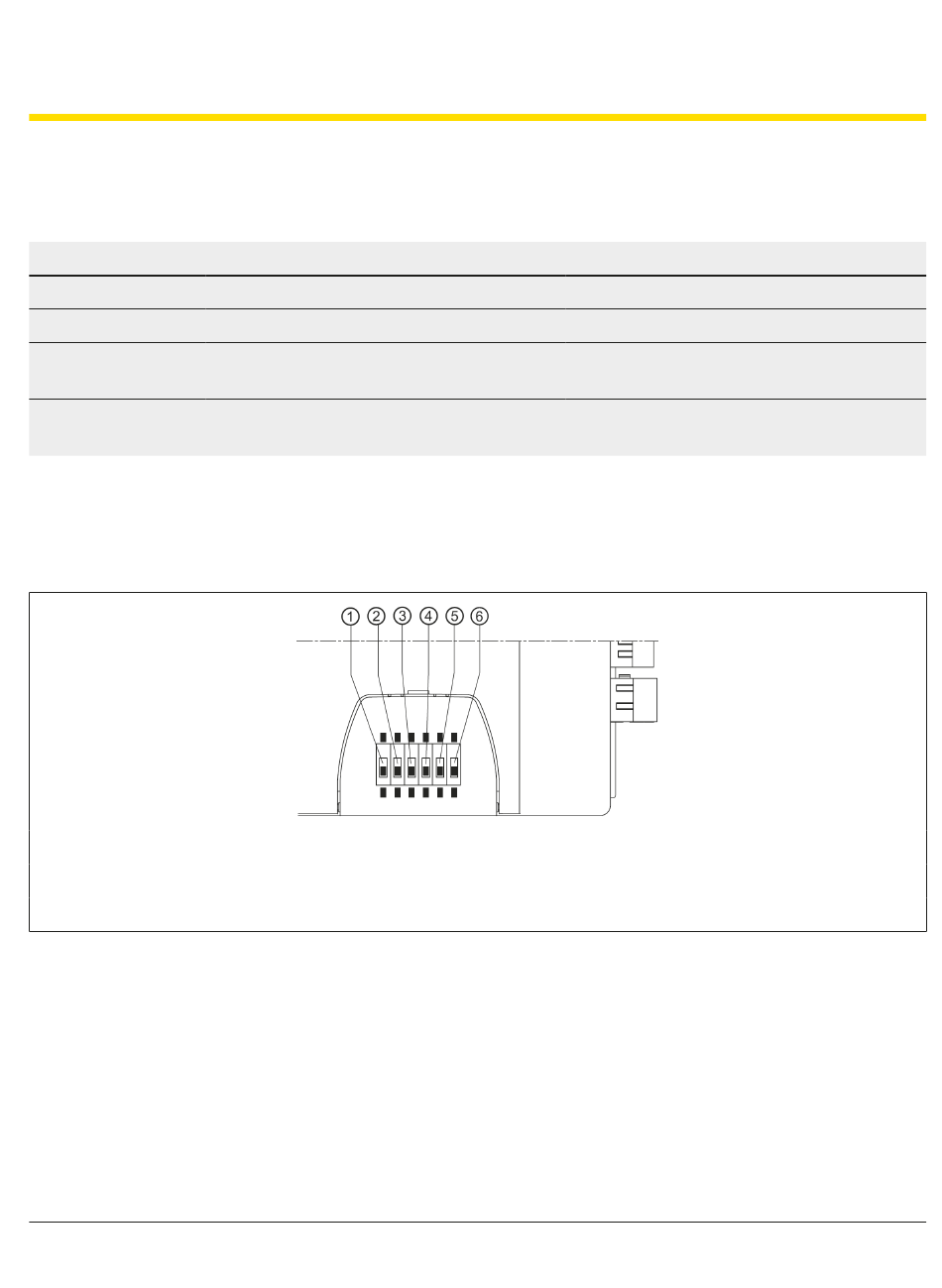

DIP switches

The DIP switches can be used to select the speed, direction of transportation, operating mode and logic conversion
(PNP/NPN). Factory default of the DIP switches 1 to 3 is ON and that of DIP switches 4 to 8 is OFF.
DIP switches
SPEED A, B, C
EPA / BA
DIR
PNP /NPN
see „Product description", page 15
1)
The direction of rotation is seen from the connecting cable side, if the external input DIR_RET is not switched.
2)
Combined with a signal at the CLEAR signal input, the direction of rotation is reversed if the DIR_RET input is switched.
1 SPEED A
2 SPEED B
3 SPEED C
Version 2.0 (04/2019) Online
Translation of the original operating manual
ON
Speed setting (see „Speed setting", page 40)
Train release mode (BA)
RollerDrive rotates in an anticlockwise
direction
2)
Signals are emitted in accordance with NPN
logic
OFF
Singulated release (EPA)
1)
RollerDrive rotates in a clockwise direction
Signals are emitted in accordance with PNP
logic
4 EPA / BA
5 DIR
6 PNP / NPN
Product information
1)
2)
