Product information
3.2

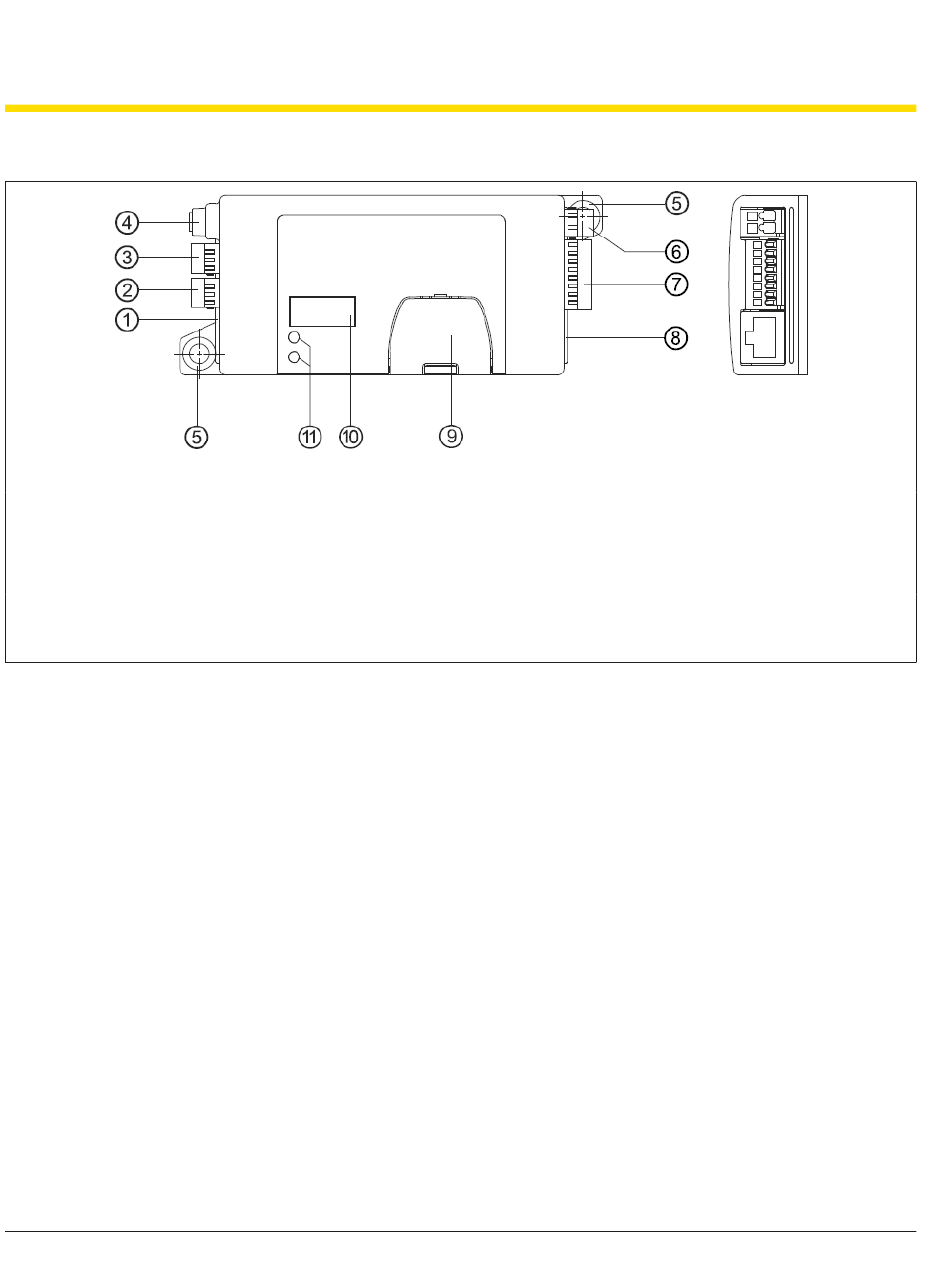

Setup

1 Upstream PTP connector
2 Zone sensor connector
3 Start sensor connector
4 RollerDrive connector
5 Mounting link with hole for countersunk screw
6 Power supply connector
3.3

Scope of delivery

The ZoneControl contains the following components:
• ZoneControl
• Mating plug for power supply (WAGO 734-102/xxx-xxx)
• Mating plug for power supply (WAGO 734-102/xxx-xxx)
• Spare tool for power supply mating plug (black)
• Spare tool for inputs/outputs mating plug (yellow)
18 von 54
1)
7 Inputs/outputs connectors
8 Downstream PTP connector
9 Cover for DIP switches
10 Marker (changeable)
11 Red and green LED
PTP = Peer-to-peer connection
1)
Translation of the original operating manual
1)
Version 2.0 (04/2019) Online
