Inputs And Outputs; Rollerdrive Connection: 8 Mm Snap-In, 5-Pin, Pin Location In Accordance With Din En 61076-2; Start Sensor Connector: Wago 733-103 Mating Plug - Interroll ZoneControl Operating Manual

Assembly and installation
5.6

Inputs and outputs

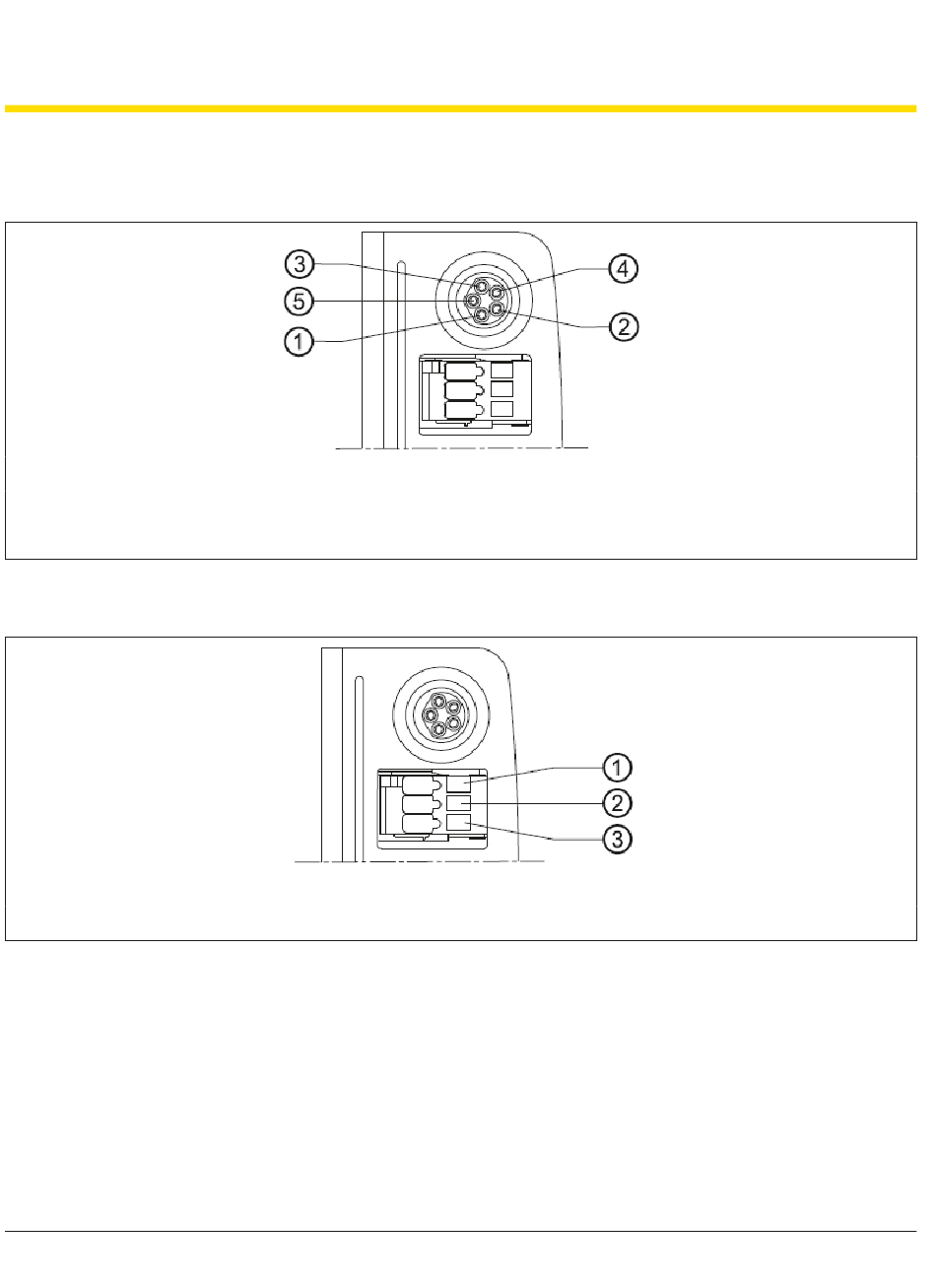

RollerDrive connection: 8 mm snap-in, 5-pin, pin location in accordance with DIN EN 61076-2

1 +24 V DC
2 Output for direction of rotation
3 Ground

Start sensor connector: WAGO 733-103 mating plug

1 +24 V DC
2 START_SENS_IN (input for start sensor signal)
30 von 54
4 Fault input
5 Speed output
3 Ground
