Assembly and installation
5.7

Wiring diagrams

Abbreviations used:
+24 V Operating voltage
GND Ground (Earth)
PTP Peer-to-peer Connection

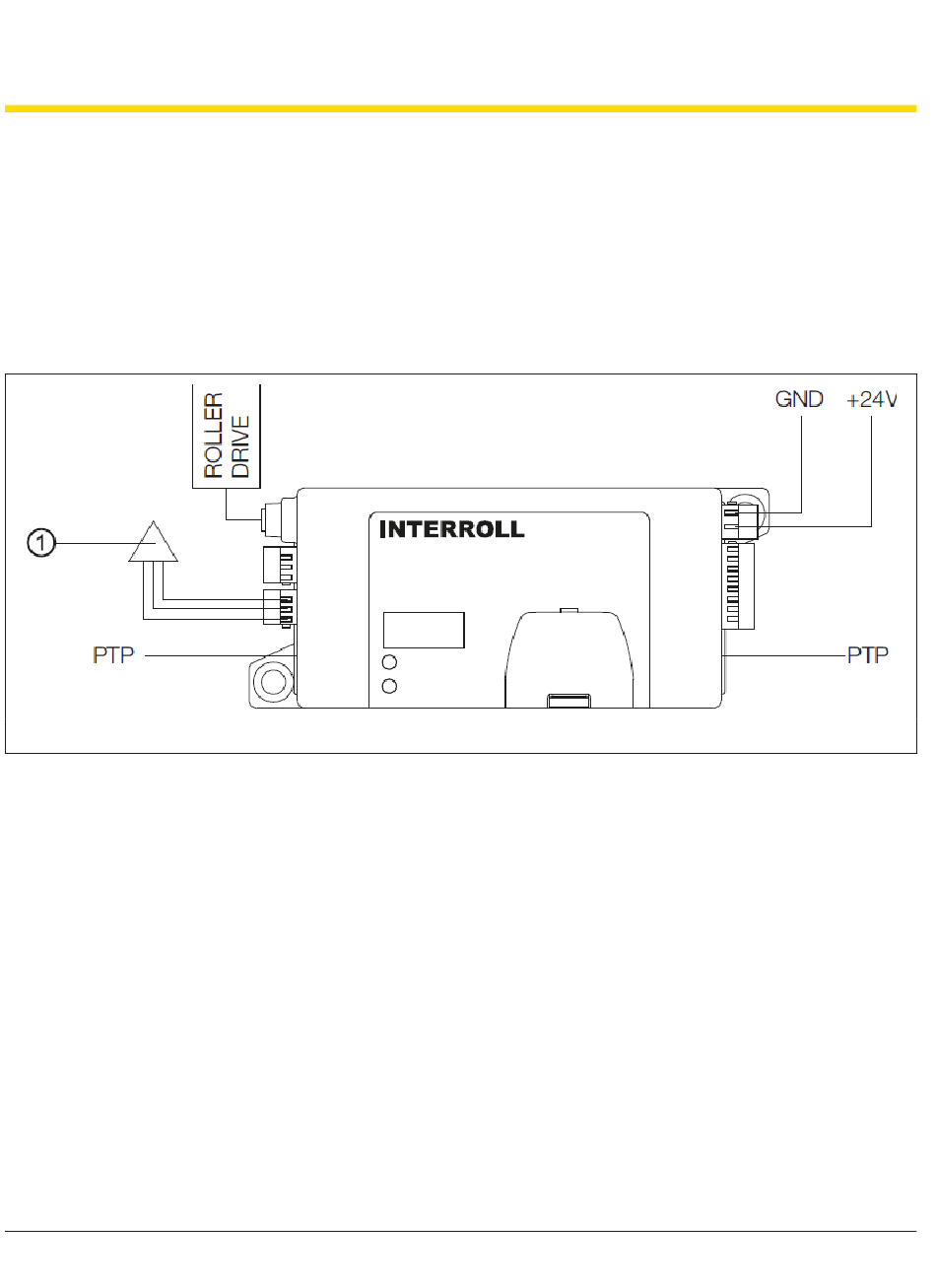

ZoneControl within the conveyor section

1 Zone sensor
This ZoneControl can be located at any position between the start and end zone. This switch enables zero pressure
accumulation conveying without additional functions.
The ZoneControl is connected to the adjacent ZoneControls via the Peer-to-Peer cable. The zone sensor is fed with
operating voltage via the sensor connector.
